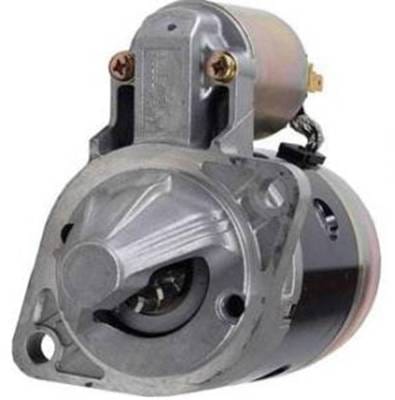

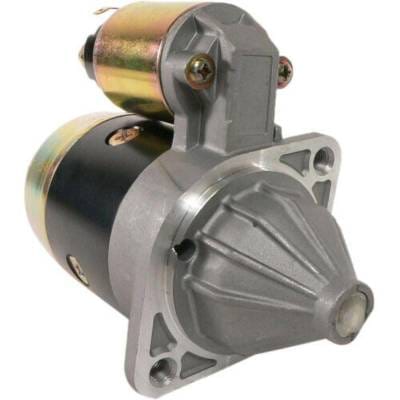

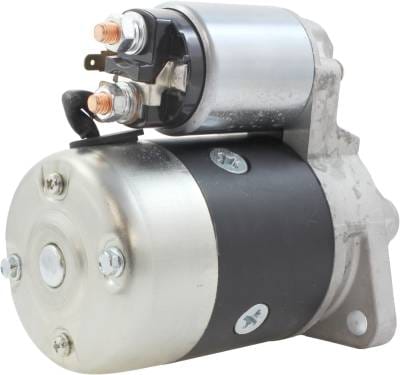

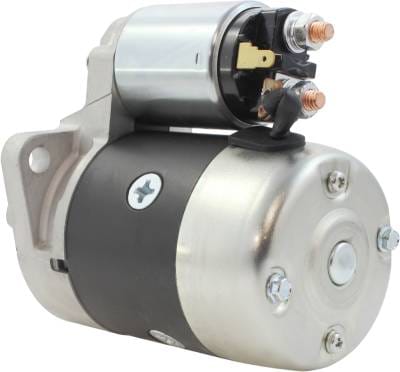

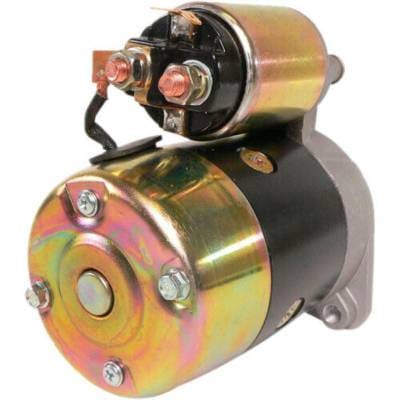

Forklift Starter Motor Compatible With Yale Gp030bd Gtc030 Gtp030 Sumitomo Lift Truck Mazda D5 4-Cyl

• Mazda: 4780-18-400, 4780-18-400A
• Mitsubishi: M3T30981, M003T30981
• Yale: 1500023-02, 9069916-00, 9069916-01
• Cargo: 111005
• Ref: 103-157, SR138X, 16798S
• Ref: 067000301, 91-27-3208N

SPECIFICATIONS:
• Type: DD (Direct Drive) Starter Motor
• Voltage: 12V DC
• Power: 0.8kW (1.07 HP)
• Rotation: Clockwise (CW)
• Teeth: 8
• Gear OD: 28.3mm (1.114")
• Mounting: 2 Ears 11.3mm Unthreaded
• Overall Length: 226.4mm (8.913")
• Housing OD: 128.2mm (5.047")
• Weight: 9.775 lbs (4.44 kg)
• Condition: NewPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
YALE FORKLIFT MODELS (MAZDA D5 ENGINE):
• Yale GLC020 - 2,000 lb Cushion Tire LPG
• Yale GLC025 - 2,500 lb Cushion Tire LPG
• Yale GLC030 - 3,000 lb Cushion Tire LPG
• Yale GP030BD - 3,000 lb Pneumatic Tire
• Yale GTC030 - 3,000 lb Cushion Dual Fuel
• Yale GTP030 - 3,000 lb Pneumatic Dual Fuel

SUMITOMO YALE LIFT TRUCKS:
• Various Models w/ D5 Engine (1981+)
• Mitsubishi Electrical System

MAZDA D5 ENGINE SPECIFICATIONS:
• 4-Cylinder 1490cc (1.5L) Industrial Engine
• Bore: 3.030" x Stroke: 3.150"
• Gas/LPG Dual Fuel | Firing Order: 1-3-4-2
