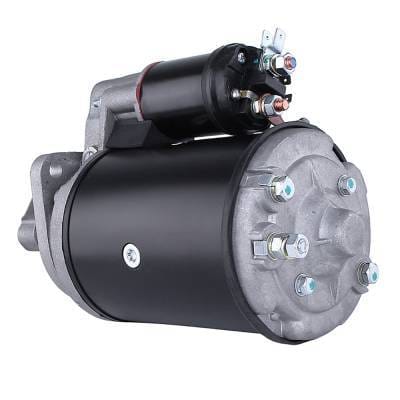

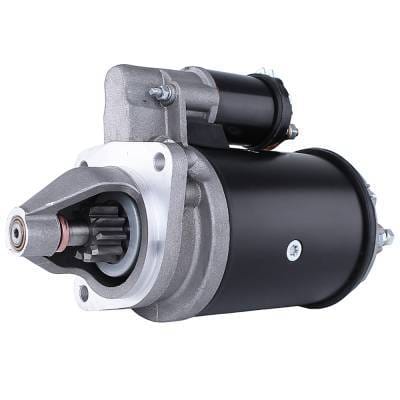

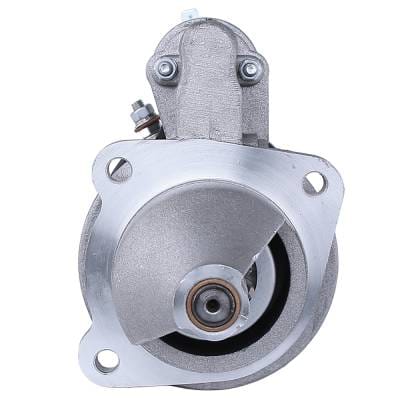

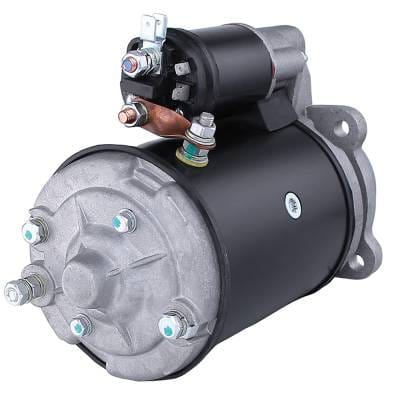

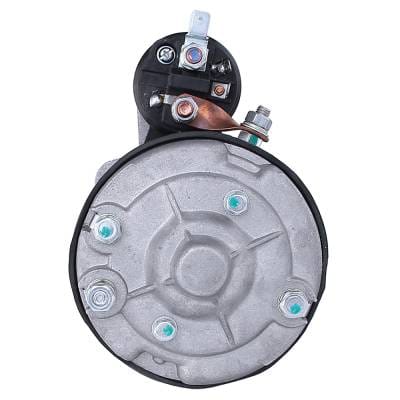

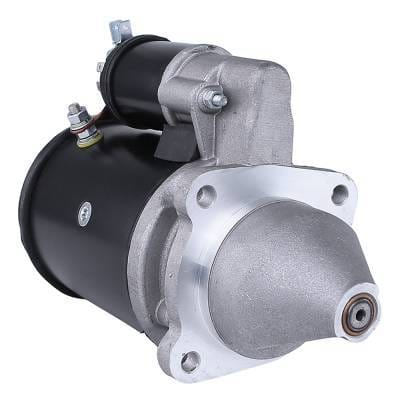

Engine Starter Motor Compatible With 1971-1975 Ford 1540 1545 1550 Combine Case 1394 C80 Cw Perkins

OEM PART NUMBERS:
• Case: 234987A1
• JCB: 714/40005
• Letrika (Iskra): 11130526, 11130872, 11131984, 11132159
• Letrika Tech: AZE4214, AZJ3305
• Lucas: 26295AB, 26295D, 26295E, 26295F/M
• Mahle: MS282, MS347, MS395, MS4
• Massey Ferguson: 3581576M01A
• Perkins: 100440, 100442, 2873A030

SPECIFICATIONS:
• Voltage: 12V
• Unit Type: Lucas M50/M127
• Type: DD (Direct Drive)
• Rotation: CW (Clockwise)
• Tooth Count: 10
• Gear OD: 40mm / 1.575in
• Mounting Ear 1: 10.5mm ID Unthreaded
• Mounting Ear 2: 10.5mm ID Unthreaded
• Mounting Ear 3: 10.5mm ID Unthreaded
• Power: 2.2-2.8kW
• Weight: 31.37 lbs / 14.26 kg
• Condition: New

APPLICATION:
• Case 1394-2394/C70-C100/CX70-CX100/CS78/CS94/Maxxum (1983-2006) • Ford 1540/1545/1550 Combines (1971-1975)

12V Starter Motor - Case Tractors & Ford Combines
Direct OEM replacement Lucas type starter motor. 12V, DD (Direct Drive), clockwise rotation, 10-tooth pinion. New aftermarket replacement for all referenced OEM part numbers. Fits listed equipment applications.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
CASE AGRICULTURAL TRACTORS:
• 1394/1494 4-219 Diesel (1983-1988)
• 1594 6-329 Diesel (1984-1988)
• 1690/1694/2094/2294/2394 (1984-1987)
• C70 MWM (1992-1999)
• C80/C90/C100 4-244 Diesel (1998-2006)
• CS78 Sisu 420.81 4.4L Turbo (1998-2003)
• CS94 Sisu 420.83 4.4L Turbo (1998-2004)
• CX70/CX80/CX90 Perkins G4.0 (1997-2006)
• CX100 Perkins G4.0 (1998-2000)
• Maxxum 100/110 6-359 Diesel (1997-1999)

FORD COMBINES:
• 1540/1545 (1971-1975)
• 1550 (1971-1973)

NOTE: Verify OEM part number before ordering.
