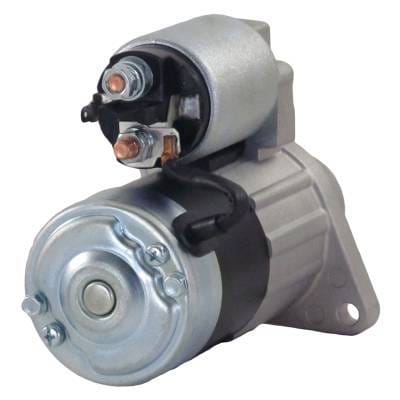

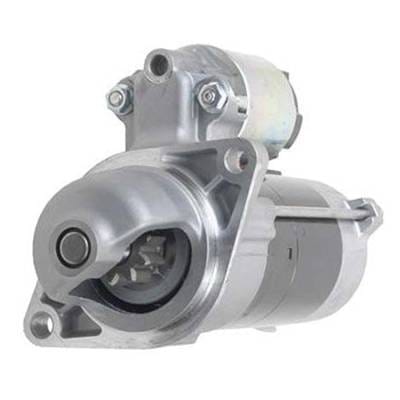

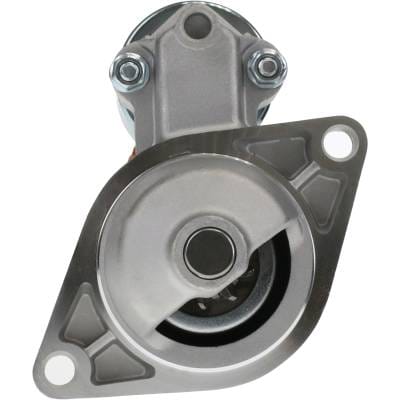

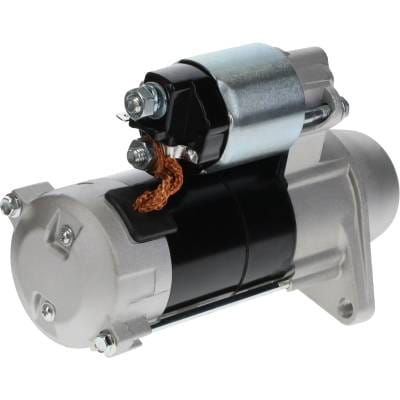

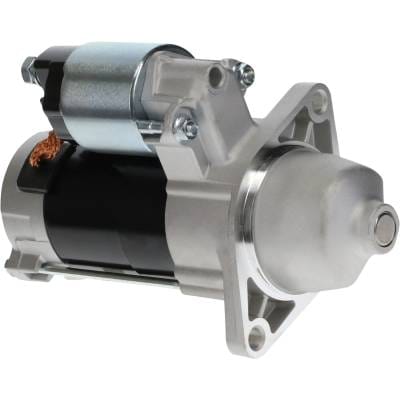

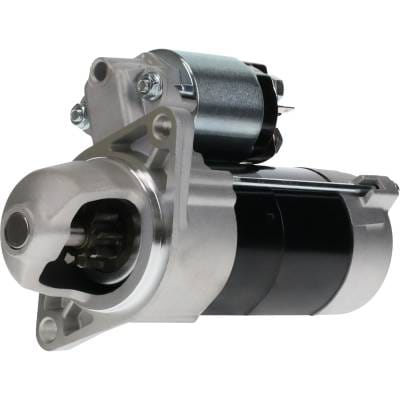

Engine Starter Compatible With Kubota Zd326hl Zd326rp Zd331lp Zd331rp Zero Turn Mower D1105 Diesel

KUBOTA OEM PART NUMBERS:
• 1G069-63010 / 1G06963010
• 1G069-63011 / 1G06963011
• 1G069-63012 / 1G06963012
• 77700-02596 / 7770002596

DENSO / NIPPONDENSO PART NUMBERS:
• 428000-1160 / 4280001160
• 428000-1161 / 4280001161
• 9742809-116 / 9742809116

AFTERMARKET PART NUMBERS:
• 18413
• 18413N
• 410-52242 / 41052242
• 190-6123
• LRS02702
• 57-3299
• STR70293
• 435-030

SPECIFICATIONS:
• Type: PLGR (Planetary Gear Reduction)
• Voltage: 12 Volts
• Power: 1.1 KW / 1.47 HP
• Rotation: Clockwise (CW)
• Teeth: 9
• Gear OD: 29mm / 1.142"
• Mounting Ear 1: 9.0mm Unthreaded
• Mounting Ear 2: 9.0mm Unthreaded
• Weight: 7.3-9.67 lbs / 3.32-4.4 kg
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
KUBOTA ZERO TURN MOWERS - ZD SERIES:

ZD25 SERIES (D1105 25HP Diesel):
• Kubota ZD25 - 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
• Kubota ZD25F - D1105 DSL

ZD28 SERIES (D1105 28HP Diesel):
• Kubota ZD28 - 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
• Kubota ZD28F - D1105 DSL

ZD326 SERIES (D1105 Diesel):
• Kubota ZD326HL
• Kubota ZD326P
• Kubota ZD326RP
• Kubota ZD326S

ZD331 SERIES (D1105 Diesel):
• Kubota ZD331
• Kubota ZD331LP
• Kubota ZD331P
• Kubota ZD331RP

ENGINE SPECIFICATIONS - D1105:
• Displacement: 1.123L (1123cc)
• Configuration: 3-Cylinder Diesel
• Power Output: 25-28 HP
• Fuel System: Indirect Injection
• Cooling: Liquid Cooled

NOTES:
• PLGR (Planetary Gear Reduction) Starter Type
• 12V / 1.1 KW / 1.47 HP
• 9 Tooth Pinion
• Clockwise Rotation
• Gear OD: 29mm / 1.142"
• 9.0mm Unthreaded Mounting Holes
• Commercial Zero Turn Turf Mowers
• Verify OEM part number before ordering
