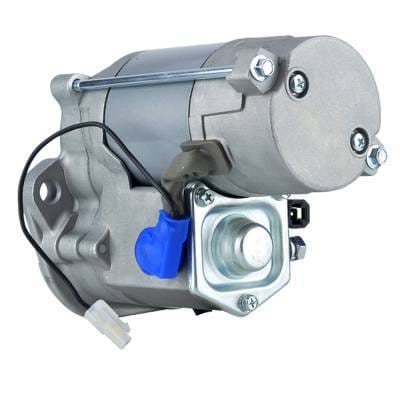

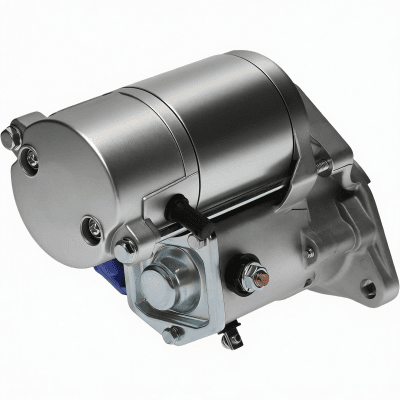

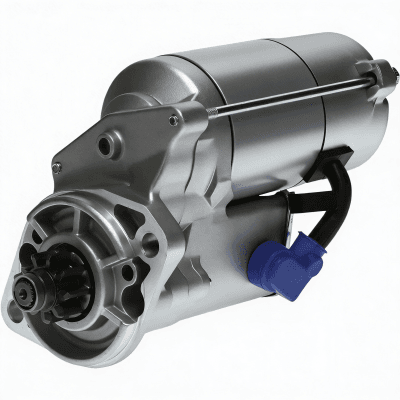

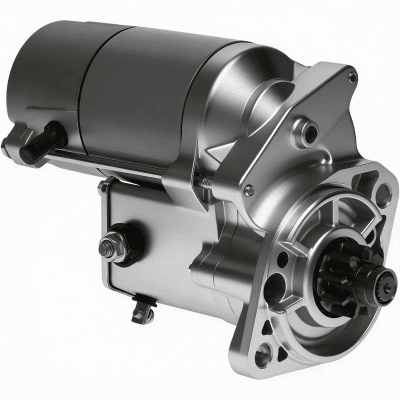

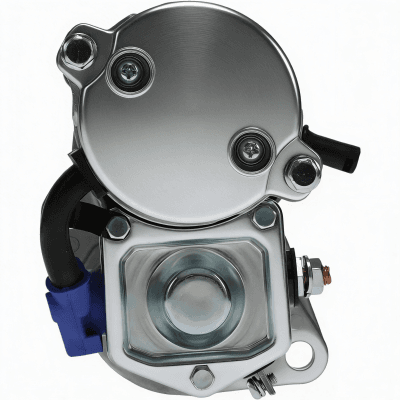

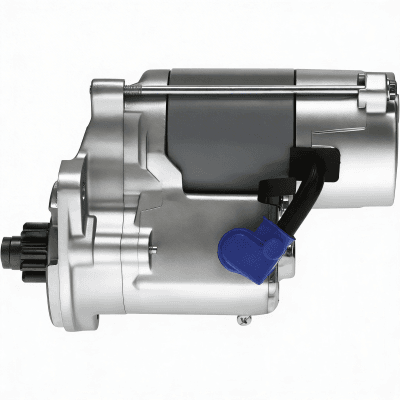

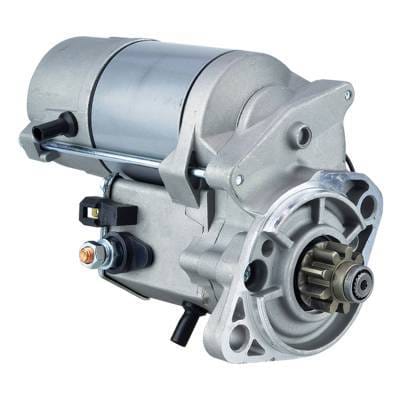

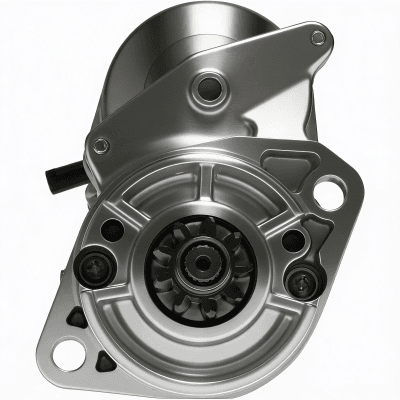

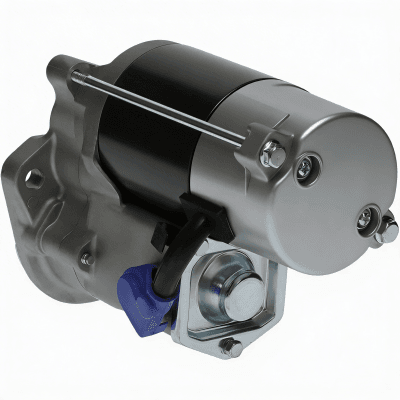

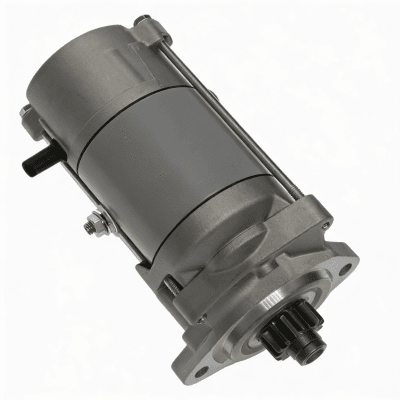

Engine Starter Compatible With Case Uni-Loader 1838 Trencher 560 6010 Kubota Wg2503 61.7Hp V2203

OEM PART NUMBERS:
• Kubota: 15425-63010 / 1542563010, 15425-63011 / 1542563011, 15425-63012 / 1542563012, 15425-63013 / 1542563013
• Kubota: 15425-63014 / 1542563014, 15425-63015 / 1542563015, 15425-63016 / 1542563016
• Kubota: 16652-63012 / 1665263012, 16652-63013 / 1665263013
• Kubota: 17490-63014 / 1749063014, 1K371-63010 / 1K37163010, 1C010-63014 / 1C01063014
• Kubota: KEARS-17490 / KEARS17490, 17331-63014 / 1733163014, 17331-63016 / 1733163016
• Kubota: 17123-63014 / 1712363014, 77700-06124 (Reman)
• Denso: 228000-4570 / 2280004570, 228000-4571 / 2280004571, 228000-4572 / 2280004572, 228000-4573 / 2280004573
• Denso: 228000-4750 / 2280004750, 228000-4752 / 2280004752
• Denso: 228000-5270 / 2280005270, 228000-5271 / 2280005271, 228000-5272 / 2280005272, 228000-5273 / 2280005273
• Denso: 228000-527 / 228000527, 028000-9030 / 0280009030, 028000-9031 / 0280009031, 028000-9032 / 0280009032
• Denso: 228000-0690 / 2280000690, 228000-0691 / 2280000691, 428000-2030 / 4280002030
• Denso Reman: 9722809-457 / 9722809457, 9722809-475 / 9722809475
• Case: 126895A1 / Gehl: 127592 / Prestolite: 20513033
• Yamaha: 1MC81890-01 / 1MC8189001

SPECIFICATIONS:
• Type: OSGR (Offset Gear Reduction)
• Voltage: 12V
• Power: 2.0 kW / 2.68 HP
• Rotation: Clockwise (CW)
• Teeth: 9
• Gear OD: 33.5mm / 1.319in
• Length: 184.6mm / 7.268in
• Mounting: Two 11.2mm ID Unthreaded Holes, 104.4mm Center-to-Center
• Registry OD: 82.3mm / 3.24in
• Terminal: M8-1.25 B+ & Motor Studs, Male Spade S Terminal
• Weight: 10.91 lbs / 4.96 kg
• Condition: New

EQUIPMENT APPLICATIONS:
• Case Trencher 560 (1994-2003), 6010 (1997-2007), Uni-Loader 1838 (1995-1999)
• Gehl SL4625 / SL4625DX / SL4625SX Skid Steers (1992-2002)
• Thomas T153/T153S (2000-2002), T173 (1996-2006), T183/T203 (1989-1994)
• Kubota KX121-2/2S, KX161-2/2S Excavators / R510, R520BU-1A Loaders
• Morooka MST300VD/VDL/VDR Rubber Track Carriers
• Kubota Engines: V2203, D1703, D1803, V2403, WG2503PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
CASE CONSTRUCTION EQUIPMENT:
• Trencher 560 w/Kubota V2203 4-Cyl 2.2L Diesel (1994-2003)
• Trencher 6010 w/Kubota V2203 4-Cyl 2.2L Diesel (1997-2007)
• Uni-Loader 1838 w/Kubota V2203DI-B 4-Cyl 2.2L Diesel (1995-1999)

GEHL SKID STEER LOADERS:
• SL4625 w/Kubota V2203 4-Cyl 2.2L Diesel (1992-2002)
• SL4625DX w/Kubota V2203 4-Cyl 2.2L Diesel (1992-2002)
• SL4625SX w/Kubota V2203 4-Cyl 2.2L Diesel (1992-2002)

THOMAS EQUIPMENT SKID STEERS:
• T153 w/Kubota V2203E 4-Cyl 2.2L Diesel (2000-2002)
• T153S w/Kubota V2203E 4-Cyl 2.2L Diesel (2000-2002)
• T173 w/Kubota V2203E 4-Cyl 2.2L Diesel (1996-2006)
• T183 w/Kubota V2203E 4-Cyl 2.2L Diesel (1989-1994)
• T203 w/Kubota V2203E 4-Cyl 2.2L Diesel (1989-1994)

KUBOTA EXCAVATORS:
• KX121-2 w/Kubota V2203BH 4-Cyl 2.2L 42.6HP Diesel
• KX121-2S w/Kubota V2203EBH 4-Cyl 2.2L 42.6HP Diesel
• KX161-2 w/Kubota V2203BH 4-Cyl 2.2L 42.6HP Diesel
• KX161-2S w/Kubota V2203EBH 4-Cyl 2.2L 42.6HP Diesel

KUBOTA LOADERS:
• R510 w/Kubota V2203DI 4-Cyl 2.2L 50HP Diesel
• R520BU-1A w/Kubota V2203 4-Cyl 2.2L 49HP Diesel

KUBOTA ENGINES (INDUSTRIAL/STANDALONE):
• V2203 / V2203-M / V2203-DI / V2203BH / V2203EBH 4-Cyl 2.2L (46HP) Diesel
• D1703 / D1703-M-DI 4-Cyl 1.7L Diesel
• D1803 / D1803-M / D1803-CR-E4 4-Cyl 1.8L Diesel
• V2403 / V2403-M / V2403-CR-E4 4-Cyl 2.4L Diesel
• WG2503 4-Cyl 2.5L Gas/LPG (55HP / 61.7HP)

MOROOKA RUBBER TRACK CARRIERS:
• MST300VD w/Kubota V2203 4-Cyl 2.2L Diesel
• MST300VDL w/Kubota V2203 4-Cyl 2.2L Diesel
• MST300VDR w/Kubota V2203 4-Cyl 2.2L Diesel
