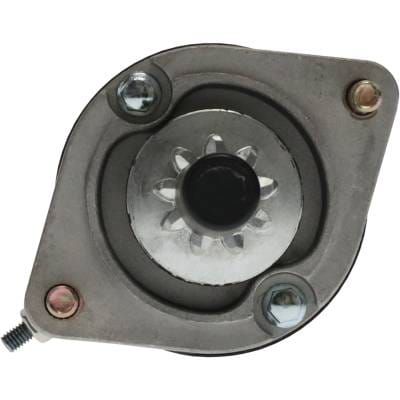

Electric Starter 12 Volt 9 Tooth Compatible With Arctic Cat Cougar 440 El Tigre Ext Jag 340 440Z

OEM PART NUMBERS:
• Arctco: 0745-052
• Arctco: 0745-257
• Arctco: 0745-030
• Arctco: 0745-018
• Arctco: 0745-357 (replaced by 0745-434)
• Arctco: 0745-434 (current number)
• Arctco: 6639-631
• Arctco: 0745-395
• Arctco: 0745-382
• Arctco: 0745-376
• Arctco: 0745-358
• Arctco: 0745-351
• Arctco: 0745-331
• Arctco: 0645-064

SUPERSESSION CHAIN:
• 0745-052 → superseded by 0745-257 → superseded by 0745-357 → superseded by 0745-434
• 0745-018 → superseded by 0745-030 → superseded by 0745-357 → superseded by 0745-434

SPECIFICATIONS:
• Type: Starter Motor
• Voltage: 12V
• Rotation: CW (Clockwise)
• Teeth: 9
• Gear OD: 29.1mm / 1.146in
• Weight: 6 lbs / 2.72 kg
• Brush Type: Carbon
• Torque: 1.74 Nm
• Cycle Rating: 10000
• Manufacturer: Johnson Electric
• Dimensions: Length 183mm (7.2in), Width 78mm (3.1in), Height 78mm (3.1in)
• Mounting Hole Distance: 90mm (3.5in)PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
ARCTIC CAT SNOWMOBILE APPLICATIONS:

BEARCAT (339-431cc):
• Bearcat 340 (339cc) - 1995, 1996, 1997, 1998, 1999, 2000
• Bearcat 440 (431cc) - 1995, 1996, 1997, 1998, 1999, 2000
• Bearcat 440 I (431cc) - 1999, 2000
• Bearcat 440 II (431cc) - 1999, 2000

CHEETAH (339-431cc):
• Cheetah 340 (339cc) - 1994
• Cheetah 440 (431cc) - 1991, 1992, 1993, 1994
• Cheetah 440 1-Speed (431cc) - 1994
• Cheetah 440 2-Speed (431cc) - 1994
• Cheetah 440 Touring (431cc) - 1991, 1992
• Cheetah 500 Touring (500cc) - 1990

COUGAR (431-500cc):
• Cougar 440 (431cc) - 1991, 1992, 1993, 1994
• Cougar 440 2-Up (431cc) - 1991, 1992
• Cougar 440 Mountain Cat (431cc) - 1993, 1994
• Cougar 500 (500cc) - 1990
• Cougar 500 Mountain Cat (500cc) - 1990

EL TIGRE (529cc):
• El Tigre EXT (529cc) - 1989, 1990, 1991
• El Tigre EXT Mountain Cat (529cc) - 1989, 1990, 1991
• El Tigre EXT Special (529cc) - 1990

JAG 340 (339cc):
• Jag 340 (339cc) - 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
• Jag 340 Deluxe (339cc) - 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
• Jag 340 Mountain Cat (339cc) - 1990, 1991

JAG 440 (431cc):
• Jag 440 (431cc) - 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
• Jag 440 AFS (431cc) - 1989, 1990, 1991, 1992, 1993
• Jag 440 AFS Deluxe (431cc) - 1990, 1991
• Jag 440 AFS Long Track (431cc) - 1990, 1991, 1992, 1993
• Jag 440 AFS Special (431cc) - 1991
• Jag 440 Deluxe (431cc) - 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
• Jag 440 LC (431cc) - 1996
• Jag 440 Special (431cc) - 1992
• Jag 440 Z (431cc) - 1993, 1994

LYNX (339cc):
• Lynx (339cc) - 1991, 1992, 1993
• Lynx Deluxe (339cc) - 1991, 1992, 1993
• Lynx Mountain Cat (339cc) - 1992, 1993
