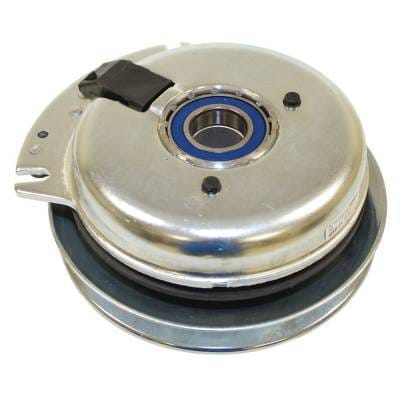

Electric Pto Clutch Compatible With Exmark Lazer Z Xs 31Hp 35Hp Vanguard Toro Z Master Z587l

OEM PART NUMBERS:
• Exmark/Toro: 103-2453 (1032453)
• Exmark/Toro: 103-3244 (1033244)
• Exmark/Toro: 103-6589 (1036589)
• Exmark/Toro: 109-7666 (1097666)
• Exmark/Toro: 103-3132 (1033132)
• Warner: 5218-101 (5218101)
• Warner: 5218-163 (5218163)
• Warner: 5218-217 (5218217)
• Warner: 5218-376 (5218376)
• Warner: 5218-99
• Warner: 5218-159
• Warner: 5218-168
• Warner: 5218-202
• Warner: 5218-209
• Warner: 5218-254

SPECIFICATIONS:
• Type: Electric PTO Clutch
• Crankshaft Diameter: 1-1/8" (1.125")
• Pulley Diameter: 7-5/32"
• Belt Width: 5/8"
• Rotation: Clockwise (CW)
• Torque: 200 ft-lbs
• Height: 3-1/4"
• Weight: 11.1 lbs

FITS EXMARK MODELS:
• Lazer Z: LZ27KC605, LZ27LKA604, LZ27LKA724, LZ28KA605
• Lazer Z: LZ31BV604, LZ31BV605, LZ31BV665, LZ31BV724, LZ31BV725
• Lazer Z AS: LAS28KA524, LAS28KA604, LAS28KA724, LAS28KA724N
• Lazer Z XS: LXS29LKA605, LXS29LKA665, LXS29LKA725
• Lazer Z XS: LXS31BV605, LXS31BV665, LXS35BV665, LXS35BV725
• Lazer Z XS: LXSKD725, LXSLKA605, LXSLKA665, LXSLKA725

FITS TORO MODELS:
• Z Master Z555: 74245
• Z Master Z587L: 74250, 74251, 74252
• Z Master Z550: 74271, 74272, 74272CP, 74273, 74273CP
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EXMARK LAZER Z:

LAZER Z (LZ SERIES):
• Exmark Lazer Z LZ27KC605 - 27HP Kohler, 60" Deck
• Exmark Lazer Z LZ27LKA604 - 27HP Kawasaki, 60" Deck
• Exmark Lazer Z LZ27LKA724 - 27HP Kawasaki, 72" Deck
• Exmark Lazer Z LZ28KA605 - 28HP Kawasaki, 60" Deck
• Exmark Lazer Z LZ31BV604 - 31HP Briggs Vanguard, 60" Deck
• Exmark Lazer Z LZ31BV605 - 31HP Briggs Vanguard, 60" Deck
• Exmark Lazer Z LZ31BV665 - 31HP Briggs Vanguard, 66" Deck
• Exmark Lazer Z LZ31BV724 - 31HP Briggs Vanguard, 72" Deck
• Exmark Lazer Z LZ31BV725 - 31HP Briggs Vanguard, 72" Deck

LAZER Z AS (LAS SERIES):
• Exmark Lazer Z AS LAS28KA524 - 28HP Kawasaki, 52" Deck
• Exmark Lazer Z AS LAS28KA604 - 28HP Kawasaki, 60" Deck
• Exmark Lazer Z AS LAS28KA724 - 28HP Kawasaki, 72" Deck
• Exmark Lazer Z AS LAS28KA724N - 28HP Kawasaki, 72" Deck

LAZER Z XS (LXS SERIES):
• Exmark Lazer Z XS LXS29LKA605 - 29HP Kawasaki, 60" Deck
• Exmark Lazer Z XS LXS29LKA665 - 29HP Kawasaki, 66" Deck
• Exmark Lazer Z XS LXS29LKA725 - 29HP Kawasaki, 72" Deck
• Exmark Lazer Z XS LXS31BV605 - 31HP Briggs Vanguard, 60" Deck
• Exmark Lazer Z XS LXS31BV665 - 31HP Briggs Vanguard, 66" Deck
• Exmark Lazer Z XS LXS35BV665 - 35HP Briggs Vanguard, 66" Deck
• Exmark Lazer Z XS LXS35BV725 - 35HP Briggs Vanguard, 72" Deck
• Exmark Lazer Z XS LXSKD725 - Kubota Diesel, 72" Deck
• Exmark Lazer Z XS LXSLKA605 - Kawasaki, 60" Deck
• Exmark Lazer Z XS LXSLKA665 - Kawasaki, 66" Deck
• Exmark Lazer Z XS LXSLKA725 - Kawasaki, 72" Deck

TORO Z MASTER:

Z555:
• Toro Z Master Z555 (Model 74245) - 60" Turbo Force Side Discharge

Z587L:
• Toro Z Master Z587L (Model 74250) - 60" Turbo Force Side Discharge
• Toro Z Master Z587L (Model 74251) - 60" Turbo Force Side Discharge
• Toro Z Master Z587L (Model 74252) - 72" Turbo Force Side Discharge

Z550:
• Toro Z Master Z550 (Model 74271) - 28HP Kawasaki, 52" Turbo Force
• Toro Z Master Z550 (Model 74272) - 28HP Kawasaki, 60" Turbo Force
• Toro Z Master Z550 (Model 74272CP) - 28HP Kawasaki, 60" Turbo Force (California)
• Toro Z Master Z550 (Model 74273) - 28HP Kawasaki, 72" Turbo Force
• Toro Z Master Z550 (Model 74273CP) - 28HP Kawasaki, 72" Turbo Force (California)

CLUTCH SPECIFICATIONS:
• Type: Electric PTO Clutch
• Crankshaft Diameter: 1-1/8" (1.125")
• Pulley Diameter: 7-5/32"
• Belt Width: 5/8"
• Rotation: Clockwise (CW)
• Torque: 200 ft-lbs
• Height: 3-1/4"
• Weight: 11.1 lbs

NOTE:
• Verify OEM part number from your original unit before ordering
• Check serial number range for proper fitment
