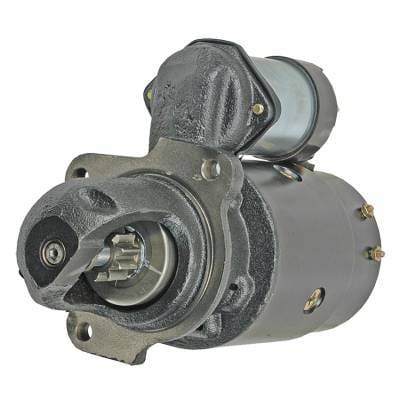

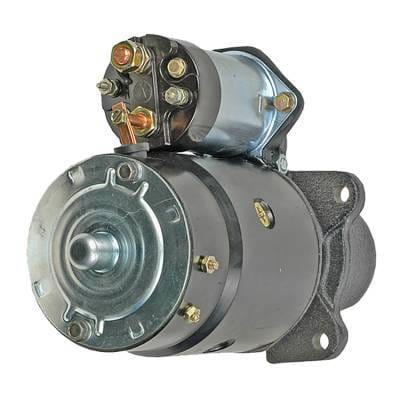

Direct Drive 12V Starter Compatible With International Farmall 504 544 656 666 686 706 756 806 856

OEM PART NUMBERS:
• Case: 396522R91 / 396556R92
• Delco: 1108334 / 1108344 / 1109360
• Delco: 1998283 / 323635 / 323-635 / 323-649 / 323649
• IHC/Navistar: 396523R93
• Manufacturer P/N: 4236N

SPECIFICATIONS:
• Voltage: 12V
• Rotation: Counterclockwise (CCW)
• Teeth: 10
• Starter Type: DD (Direct Drive)
• Unit Type: Delco
• Gear OD: 1.252" / 31.8mm
• Mounting Ear 1: 10mm Unthreaded
• Mounting Ear 2: 10mm Unthreaded
• Weight: 25.76 lbs / 11.71 kg
• Condition: New

INTERNATIONAL / FARMALL APPLICATIONS:
• International 504, 544, 656, 706, 756, 766, 806, 856 (1963-1976)
• International 2544, 2656, 2756, 2806, 2856, 6000 (1967-1972)
• Farmall 504, 544, 656, 666, 686, 706, 756, 806, 856 (1963-1980)
• Industrial 544 IHC C-200 Gas (1968-1973)PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
INTERNATIONAL AGRICULTURAL TRACTORS:
• 504 Industrial IHC C-153 Gas/LPG (1967-1968)
• 544 IHC C-200 Gas (1968-1973)
• 656 IHC C-263 Gas/LPG (1967-1973)
• 706 IHC C-291 Gas (1963-1967)
• 756 IHC C-291 Gas/LPG (1967-1976)
• 766 IHC C-291 Gas (1971-1976)
• 806 IHC C-301 Gas/LPG (1967)
• 856 IHC C-301 Gas/LPG (1967-1971)
• 2544 IHC C-200 Gas (1969-1970)
• 2656 IHC C-263 Gas/LPG (1971-1972)
• 2756 IHC C-291 Gas (1968-1971)
• 2806 IHC C-301 Gas/LPG (1967)
• 2856 IHC C-301 Gas (1968-1970)
• 6000 IHC C-200 Gas (1969-1970)

FARMALL TRACTORS:
• Farmall 504 IHC C-153 Gas/LPG (1967-1968)
• Farmall 544 IHC C-200 Gas (1968-1973)
• Farmall 656 IHC C-263 Gas/LPG (1967-1973)
• Farmall 666 IHC C-291 Gas (1972-1976)
• Farmall 686 IHC C-291 Gas (1976-1980)
• Farmall 706 IHC C-291 Gas (1963-1967)
• Farmall 756 IHC C-291 Gas/LPG (1967-1971)
• Farmall 806 IHC C-301 Gas/LPG (1967)
• Farmall 856 IHC C-301 Gas (1967-1971)

INTERNATIONAL INDUSTRIAL:
• 544 Industrial IHC C-200 Gas (1968-1973)

STARTER SPECIFICATIONS:
• Voltage: 12V
• Rotation: CCW
• Teeth: 10
• Type: DD (Direct Drive)
• Unit Type: Delco
• Gear OD: 1.252"
• Mounting: 10mm Unthreaded x2
• Weight: 25.76 lbs
• Condition: New
