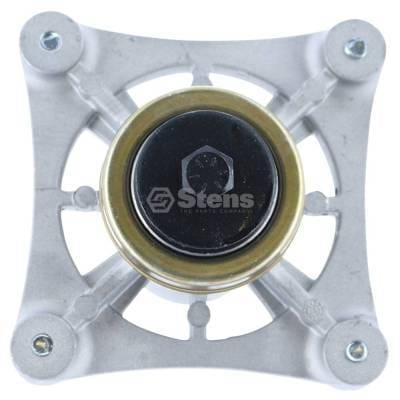

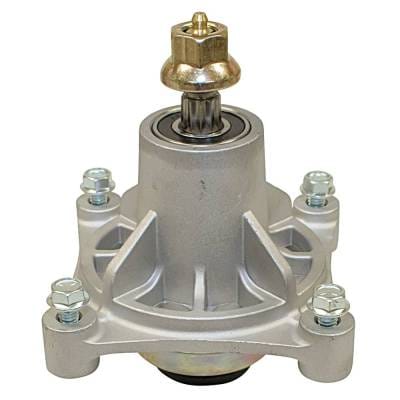

Deck Spindle Assembly Compatible With Husqvarna Rz4619 Rz4620 Rz4621 Rz4622 Rz4623 48-Inch 966582301

OEM PART NUMBERS:
• AYP/Husqvarna: 174358 / 539107515 • AYP/Husqvarna: 532174358 / 532192656
SPECIFICATIONS:
• Type: Deck Spindle Assembly

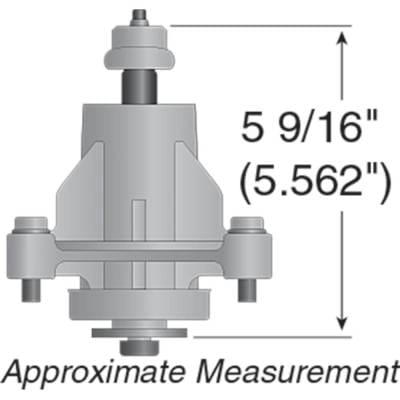

• Height: 5-9/16" (141mm)
• Mounting Hole Distance: 5-5/8" (143mm)
• Housing: 4-Bolt Short Housing
• Shaft Mount: 5-Point Star Center Hole
• Grease Fitting: Yes (threaded end)
• Deck Sizes: 46", 48", 54"
• Year Range: 2002 and Newer
• Condition: New

APPLICATION:
• Husqvarna RZ4619 / RZ4620 / RZ4621 / RZ4622 / RZ4622T / RZ4623 — Zero Turn Mowers • Husqvarna 966582301 / 966659101 / 966676501 / 966678201

Husqvarna RZ4619 RZ4620 RZ4621 RZ4622 RZ4623 Deck Spindle Assembly — 174358 539107515
Deck spindle assembly for Husqvarna RZ4619, RZ4620, RZ4621, RZ4622, RZ4622T, and RZ4623 zero-turn mowers. Also covers 966582301, 966659101, and 966676501. Replaces OEM 174358 and 539107515. Height 5-9/16", 4-bolt housing, 5-point star blade mount.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
AYP / ELECTROLUX RIDING MOWERS:
• 46", 48" & 54" Deck (2002 and Newer)
• PDGT26H48A / PR25PH48STB / PRGT22H48A
• SP25PH48STA / SPGT25H48A / WAGT20H48STA

CRAFTSMAN RIDING LAWN TRACTORS — 48" DECK:
• 917204130 / 917250980 / 917251120 / 917251160
• 917272240 / 917272241 / 917272242 / 917272243 / 917272244 / 917272245 / 917272246 / 917272248 / 917272264
• 917273240 / 917273241 / 917273280 / 917273610 / 917273620 / 917273621 / 917273622
• 917273660 / 917273661 / 917273663 / 917273664
• 917275010 / 917275011 / 917275013 / 917275021 / 917275223 / 917275240 / 917275242
• 917275280 / 917275282 / 917275700 / 917275701 / 917275740 / 917275900 / 917275901 / 917275902
• 917276010 / 917276011 / 917276013 / 917276020 / 917276021 / 917276022
• 917276070 / 917276071 / 917276080 / 917276081
• 917276310 / 917276320 / 917276350 / 917276351 / 917276360 / 917276361
• 917277780 / 917277800
• Named Models: GT5000 / DYT4000 / DLT2000

DIXON ZERO TURN MOWERS:
• SPEED-ZTR-46

HUSQVARNA GARDEN TRACTORS — 48" DECK:
• GT2248 / GTH2248 / GTH2248XP / GTH2248XPA / GTH250 / GTH2548
• 460ZX / 917277820 / 917279080 / 917279081
• 954170026 / 954170055 / 954567086 / 954567888 / 954567895 / 954568489 / 954571977 / 954571984
• 954572004 / 954572035 / 954572134 / 96013000700 / 96015000100 / 96015000101 / 96015000102 / 96015000103
• 960230003 / 96023000300 / EZ4624BF / EZ4822BI / GTH2248XPA

HUSQVARNA YTH SERIES — 48" DECK:
• YTH1848XP / YTH1848XPF / YTH2048A / YTH2148 / YTH2148A / YTH2248 / YTH2448 / YTH2548A / YTH2748
• 965880801 / 965880901 / 965881001 / 965881201 / 965921501 / 966503401 / 966582301
• 966659101 / 966676501 / 966678201 / 967009805 / 967150901 / 967153002 / 967176201
• 967271401 / 967271501 / 967271601 / 967323901 / 967323902 / 967323903
• 967324001 / 967324002 / 967665401 / 967844501 / 967924601
• 968999219 / 968999220 / 968999250 / 968999276 / 968999301 / 968999512 / 968999513 / 968999696 / 970467401

HUSQVARNA Z / EZ / LSZ ZERO TURN MOWERS:
• Z246 / Z246i / Z4218 / Z4219 / Z4818 / Z4822 / Z4824 / Z4826 / Z5426
• EZ4220 / EZ4624BF / EZ4822BI / EZ4824 / EZ5226
• LSZ4622 / LSZ5422 / LSZ5424

HUSQVARNA RZ ZERO TURN MOWERS:
• RZ4219 / RZ4619 / RZ4620 / RZ4621 / RZ4622 / RZ4622T / RZ4623
• RZ5422 / RZ5424

HUSQVARNA ADDITIONAL MODELS:
• GTH2548 (96023000300) / RZ4219 (954572134) / Z4824 / GTH2248XPA
• 967271401 / 967271601 / 968999512 / 970467401

JONSERED LAWN TRACTORS:
• LT19A / LT2119A / LT2122A / LT2122A2
• 954130071 / 954130090 / 954130214
• 96011001100 / 96011001101 / 96011013000 / 96011022600

POULAN / POULAN PRO RIDING MOWERS:
• COGT22H48A / DB24H48YT / DB27H48YT / POGT20H48STA / POGT20T48STA
• PRO-CO24H48STA / PRO-DPR22H48STA / PRO-P46ZX / PRO-PD20PH48STA / PRO-PD22PH48STA
• PRO-PD25PH48STA / PRO-PK23H48YT / PRO-PRGT25H48A / PRO-XT24H48YT / PRO-967721801

NOTE: Fits AYP 46", 48" & 54" decks 2002 and newer. 5-point star blade mount. Verify OEM part number from your original unit before ordering to ensure proper fitment.
