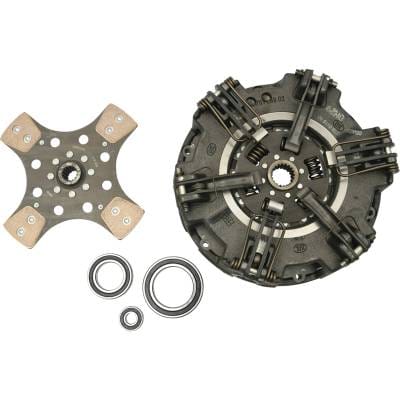

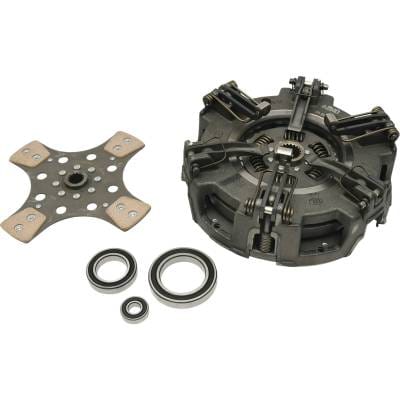

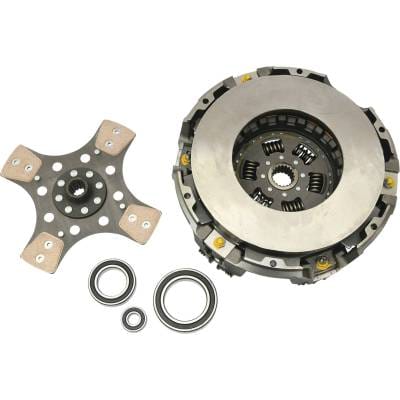

Clutch Kit Compatible With John Deere 5415H 5420 5425 5425N 5510 5520 5603 5615 5625 5715 5725

OEM PART NUMBERS:
• John Deere: RE72534, RE72535, RE72860, RE211277
• John Deere: RE173314, RE173315, RE177574, CH18554, CH18562
• John Deere: RE27648, RE72536, RE72826, RE242274
• John Deere: RE258870, RE2276498, RE73611
• LuK: 228011510, 302816102, 328037910
• LuK: 328043510, 628313600, 628-3136-00

SPECIFICATIONS:
• Disc OD: 11" | Spline: 13 | Type: Double (Dual Stage)
• 6 Bolt | 6 Lever | Material: Cast Iron
• Bearing OD: 100mm/75mm | Bearing Thk: 18mm/16mm
• Pilot Bearing ID: 17mm
• Collarshift/TSS/Synchronized Reverse Trans
• Includes: Pressure Plate, PTO Disc, Release Bearings, Pilot Bearing

JOHN DEERE APPLICATIONS:
• 3-Cyl: 5320, 5320N, 5410, 5415H, 5420, 5425, 5425N
• 4-Cyl: 5510, 5510N, 5520, 5520N, 5600, 5603, 5605,
• 5615, 5625, 5700, 5715, 5715HC, 5725, 5725NPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
JOHN DEERE 5000 SERIES - 3-CYL (JD 3029T 2.9L Diesel):
• 5320 w/JD 3029T 3-Cyl 2.9L Diesel Turbo 55HP (2001-2006)
• 5320N w/JD 3029T 3-Cyl 2.9L Diesel Turbo 55HP (2001-2006)
• 5410 w/JD 3029T 3-Cyl 2.9L Diesel Turbo 65HP (1997-2003)
• 5415H w/JD 3029T 3-Cyl 2.9L Diesel 65HP (2005-2008)
• 5420 w/JD 3029T 3-Cyl 2.9L Diesel Turbo 65HP (2003-2008)
• 5425 w/JD 3029T 3-Cyl 2.9L Diesel Turbo 65HP (2003-2008)
• 5425N w/JD 3029T 3-Cyl 2.9L Diesel Turbo 65HP (2003-2008)


JOHN DEERE 5000 SERIES - 4-CYL (JD 4045T 4.5L Diesel):
• 5510 w/JD 4045T 4-Cyl 4.5L Diesel 75HP (1997-2003)
• 5510N w/JD 4045T 4-Cyl 4.5L Diesel 75HP (1997-2003)
• 5520 w/JD 4045T 4-Cyl 4.5L Diesel 75HP (2003-2008)
• 5520N w/JD 4045T 4-Cyl 4.5L Diesel 75HP (2003-2008)
• 5600 w/JD 4045T 4-Cyl 4.5L Diesel 75HP (1992-1997)
• 5603 w/JD 4045T 4-Cyl 4.5L Diesel 80HP (2005-2008)
• 5605 w/JD 4045T 4-Cyl 4.5L Diesel 80HP (2005-2008)
• 5615 w/JD 4045T 4-Cyl 4.5L Diesel 75HP (2005-2008)
• 5625 w/JD 4045T 4-Cyl 4.5L Diesel 75HP (2005-2008)
• 5700 w/JD 4045T 4-Cyl 4.5L Diesel 85HP (1992-1997)
• 5715 w/JD 4045T 4-Cyl 4.5L Diesel 85HP (2005-2008)
• 5715HC w/JD 4045T 4-Cyl 4.5L Diesel 85HP (2005-2008)
• 5725 w/JD 4045T 4-Cyl 4.5L Diesel 90HP (2005-2008)
• 5725N w/JD 4045T 4-Cyl 4.5L Diesel 90HP (2005-2008)
