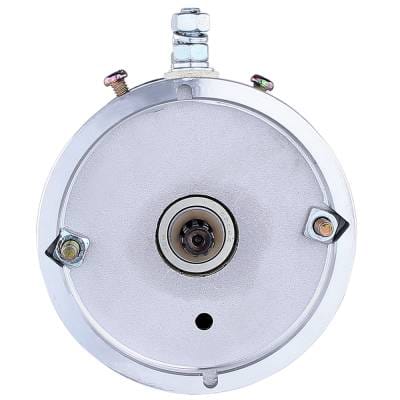

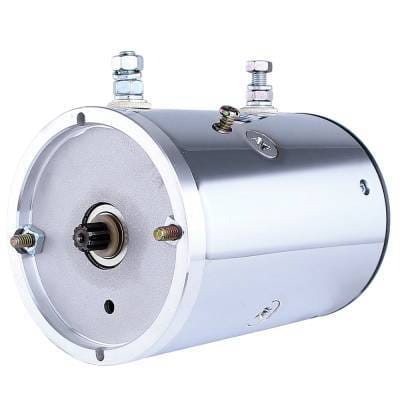

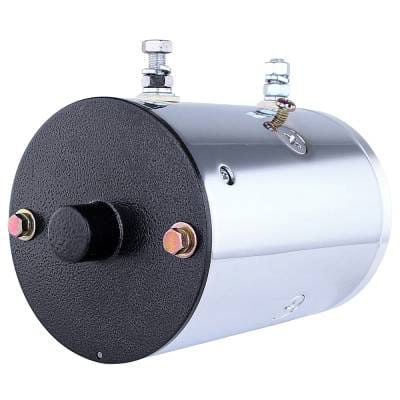

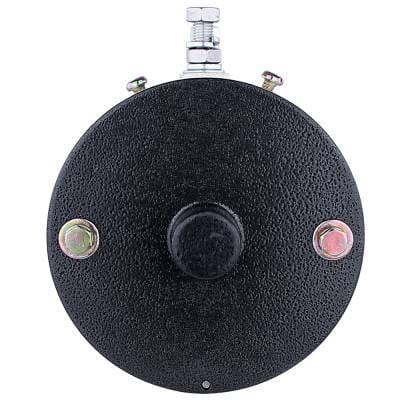

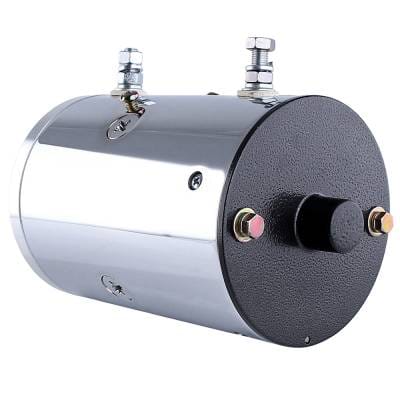

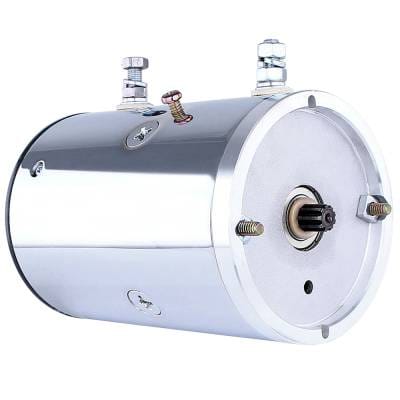

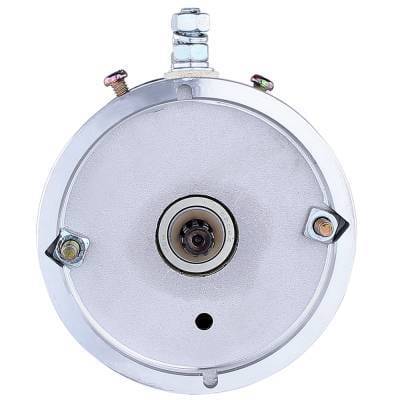

Chrome Dc Motor Compatible With Fenner Stone Spx Hydraulic Pump 12 Volt Clockwise 9 Spline 4 Field

OEM PART NUMBERS:
• W-9799C (Prestolite Style Chrome)
• W-9799LC (Prestolite Style Chrome)

SPECIFICATIONS:
• Type: DC Hydraulic Pump Motor
• Voltage: 12V DC
• Rotation: Clockwise (CW)
• Shaft: 9 Straight Splines
• Shaft OD: 12.2mm / 0.480in
• Field Housing OD: 113.8mm / 4.480in
• Overall Length: 195mm / 7.677in
• Terminal Size: 5/16-24
• Field Coils: 4 (Parallel High RPM)
• Ground: Double Insulated
• Finish: Chrome
• Weight: 17 lbs

FEATURES:
• Chrome HD special 4 field coil motor
• Special duty parallel high RPM field coils
• Heavy double lead wires to brushes
• High RPM balanced armature with welded windings
• Double insulated rear ground post
• Prestolite style old school plus design with improvements

FITS HYDRAULIC SYSTEMS:
• Fenner Fluid Power / SPX Hydraulic Pumps
• Pro Hopper / Cool Cars / Showtime
• Orlie's Auto Accessories / Red's Pro Series
• Lowrider / Hi-Jacker Competition Hydraulics
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
