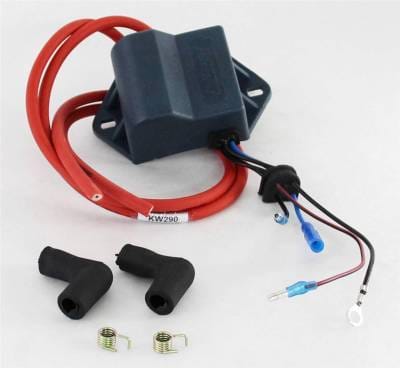

Cdi Ignition Module Coil Compatible With Kawasaki 650 Sx Stand-Up Jet Ski Js650-A1 A2 A3 A4 B1 635Cc

OEM PART NUMBERS:
• Kawasaki: 21119-3703 / 211193703
• Kawasaki: 21119-3711 / 211193711

SUPERSESSION CHAIN:
• 21119-3703 superseded by → 21119-3711

SPECIFICATIONS:
• Type: Combined CDI Module with Integrated HT Ignition Coil
• Wiring: 4-Wire System (Blue/Stop, Black/Stop, Black-Red/Stator, Black/Ground)
• Mounting Hole Spacing: 90mm
• Engine Compatibility: 635cc Vertical Twin-Cylinder 2-Stroke / 52HP
• Weight: 2 lbs
• Condition: New

KAWASAKI 650 SX APPLICATIONS:
• JS650-A1 650 SX 635cc 52HP Stand-Up PWC (1987)
• JS650-A2 650 SX 635cc 52HP Stand-Up PWC (1988)
• JS650-A3 650 SX 635cc 52HP Stand-Up PWC (1989)
• JS650-A4 650 SX 635cc 52HP Stand-Up PWC (1990)
• JS650-B1 650 SX 635cc 52HP Stand-Up PWC (1991)PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
KAWASAKI 650 SX STAND-UP JET SKI — JS650 (1987-1991):
• JS650-A1 Kawasaki 650 SX 635cc Vertical Twin-Cylinder 2-Stroke 52HP Stand-Up PWC (1987)
• JS650-A2 Kawasaki 650 SX 635cc Vertical Twin-Cylinder 2-Stroke 52HP Stand-Up PWC (1988)
• JS650-A3 Kawasaki 650 SX 635cc Vertical Twin-Cylinder 2-Stroke 52HP Stand-Up PWC (1989)
• JS650-A4 Kawasaki 650 SX 635cc Vertical Twin-Cylinder 2-Stroke 52HP Stand-Up PWC (1990)
• JS650-B1 Kawasaki 650 SX 635cc Vertical Twin-Cylinder 2-Stroke 52HP Stand-Up PWC (1991)

ENGINE SPECIFICATIONS:
• Engine: 635cc Vertical Twin-Cylinder 2-Stroke
• Power Output: 52 Horsepower
• Induction: Crankcase Reed Valve
• Fuel System: 28mm Keihin Carburetor (Single)
• Starting System: Electric Start
• Propulsion: Axial-Flow Single-Stage Jet Pump / 3-Blade Aluminum Impeller
• Maximum Thrust: 463 lbs / Top Speed: 41 MPH
• Fuel Tank: 4.6 Gallons / Fuel Consumption: 5 GPH at Full Throttle
• Dry Weight: 282.2 lbs
• Dimensions: 86.8 in (L) x 26.8 in (W) x 29.9 in (H)
• Type: Stand-Up Single Rider Personal Watercraft

IGNITION SYSTEM NOTES:
• 4-Wire CDI/Coil System
• Blue Wire — Stop Switch
• Black Wire — Stop Switch
• Black/Red Wire — Stator Coil Plate
• Black Wire — Ground
• Mounting Hole Spacing: 90mm
