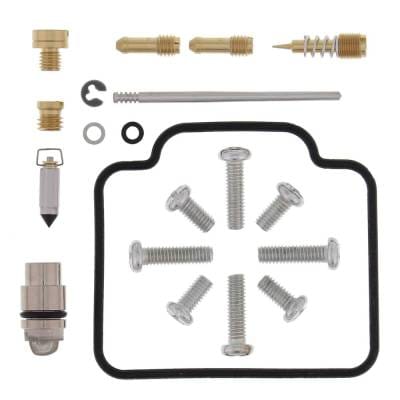

Carburetor Repair Kit Compatible With Polaris Sportsman 500 4X4 Duse Rse 1999-2001 Worker 500

OEM PART NUMBERS:
• Polaris: 3130922 (Repair Kit - Sportsman 500)
• Polaris: 1253438 (Carb Assembly - Sportsman 700)
• Polaris: 1253158, 1253493, 1253563 (Carb Assemblies)
• Polaris: 1203060 (Carb Assembly - Sportsman 700)

SPORTSMAN 500 ENGINE SPECS (1999-2001):
• Engine: Fuji 499cc Liquid-Cooled SOHC 4-Valve 4-Stroke Single
• Bore x Stroke: 92.0mm x 75.0mm
• Compression Ratio: 10.0:1
• Carburetor: Mikuni BST 34mm CV
• Lubrication: Pressurized Dry Sump
• Fuel Capacity: 5.25 Gallons

SPORTSMAN 700 ENGINE SPECS (2002):
• Engine: Liberty 683cc Liquid-Cooled SOHC V-Twin 4-Stroke
• Bore x Stroke: 80.0mm x 68.0mm
• Compression Ratio: 9.78:1
• Carburetor: Mikuni BST 34mm CV
• Lubrication: Pressurized Wet Sump

SPORTSMAN 600 ENGINE SPECS (2005):
• Engine: Liberty 597cc Liquid-Cooled OHV V-Twin 4-Stroke
• Bore x Stroke: 76.5mm x 65.0mm
• Compression Ratio: 10.3:1
• Carburetor: Mikuni BST 34mm CV
• Main Jet: #155 (600), Pilot: #45
• Alternator: 300 Watts

KIT JET CONTENTS:
• Main Jet: #152.5
• Pilot Jet: #45
• Slow Jet: #40
• Air Pilot Jet: #160
• Transmission: Automatic PVT (All Models)
• Drivetrain: On-Demand AWD 4x4 / Shaft DrivePRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
POLARIS SPORTSMAN 500 / 600 / 700 / WORKER 500 APPLICATIONS:
• Polaris Sportsman 500 4x4 Built Before 9/98 (1999)
• Polaris Sportsman 500 4x4 Built After 9/98 (1999)
• Polaris Sportsman 500 4x4 (2000)
• Polaris Sportsman 500 4x4 RSE Built Before 9/98 (1999)
• Polaris Sportsman 500 4x4 RSE Built After 9/98 (1999)
• Polaris Sportsman 500 4x4 RSE (2000)
• Polaris Sportsman 500 4x4 DUSE (2001)
• Polaris Worker 500 4x4 Built Before 9/98 (1999)
• Polaris Worker 500 4x4 Built After 9/98 (1999)
• Polaris Sportsman 700 4x4 (2002)
• Polaris Sportsman 700 4x4 Built Before 5/01/02 (2002)
• Polaris Sportsman 600 4x4 Twin (2005)
