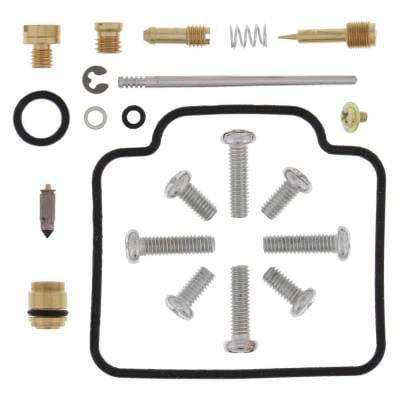

Carburetor Rebuild Kit Compatible With Suzuki Quadrunner 250 Lt-F250 2X4 1990-1999 Lt-4Wd 4X4

OEM PART NUMBERS:
• Suzuki: 13200-19B63, 13200-19B80, 13200-19BA3, 13200-39D01, 13200-09F01, 13200-09F10, 13200-09F30, 13200-09F50

SPECIFICATIONS:
• Product Type: Carburetor Rebuild Kit
• Carburetor: Mikuni BST31SS (31mm CV)
• Engine: 246cc Air Cooled 4-Stroke OHC Single-Cylinder
• Kit Contents: O-Rings, Gaskets, Jets, Needle, Mixture Screw, Float Bowl Screws, Float Valve Needle and Seat
• O-Ring Material: NBR Rubber (Ethanol Resistant)
• OEM Jet Sizes Included
• Paper Float Bowl Gaskets Upgraded to High Performance Interface Gasket Material
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
SUZUKI ATV APPLICATIONS:
• Suzuki LT-4WD 250 Quad Runner 4x4 (1990)
• Suzuki LT-4WD 250 Quad Runner 4x4 (1991)
• Suzuki LT-4WD 250 Quad Runner 4x4 (1992)
• Suzuki LT-4WD 250 Quad Runner 4x4 (1993)
• Suzuki LT-4WD 250 Quad Runner 4x4 (1994)
• Suzuki LT-4WD 250 Quad Runner 4x4 (1995)
• Suzuki LT-4WD 250 Quad Runner 4x4 (1996)
• Suzuki LT-F250 Quad Runner 2x4 (1990)
• Suzuki LT-F250 Quad Runner 2x4 (1991)
• Suzuki LT-F250 Quad Runner 2x4 (1992)
• Suzuki LT-F250 Quad Runner 2x4 (1993)
• Suzuki LT-F250 Quad Runner 2x4 (1994)
• Suzuki LT-F250 Quad Runner 2x4 (1995)
• Suzuki LT-F250 Quad Runner 2x4 (1996)
• Suzuki LT-F250 Quad Runner 2x4 (1997)
• Suzuki LT-F250 Quad Runner 2x4 (1998)
• Suzuki LT-F250 Quad Runner 2x4 (1999)

ENGINE SPECIFICATIONS:
• Engine: 246cc Air Cooled 4-Stroke OHC Single-Cylinder
• Bore x Stroke: 66mm x 72mm (2.60" x 2.83")
• Compression Ratio: 9.2:1
• Carburetor: Mikuni BST31SS (31mm CV)
• Transmission: 5-Speed with Reverse, Auto-Clutch
• Final Drive: Shaft (4WD) / Chain (2WD)
• Starting: Electric with Recoil Backup
