Carburetor Rebuild Kit Compatible With Suzuki King Quad 400 Lta400f Ltf400f Asi Fsi 2008-2010 376Cc

OEM PART NUMBERS:
• Suzuki: 13200-27H0V (Carburetor Assembly)
• Suzuki: 13200-27H10 (Carburetor Assembly)
• Cylinder: 11210-27H00-0F0, 11210-38F10-0F0
• Piston: 12100-38F21-050

SPECIFICATIONS:
• Product Type: Carburetor Rebuild Kit
• Carburetor: Keihin CVK32 (32mm CV)
• Engine Platform: Shared with Suzuki Eiger 400 (2002-2007)

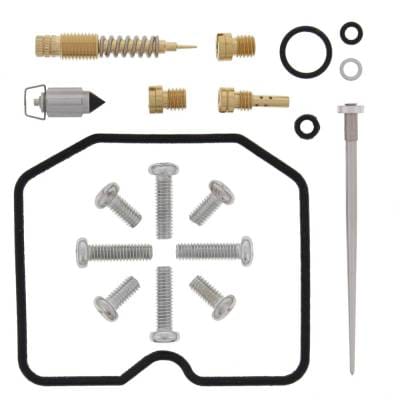

• Kit Contents: O-Rings, Gaskets, Jets, Needle, Mixture Screw, Float Bowl Screws, Float Valve Needle and Seat
• O-Ring Material: NBR Rubber (Ethanol Resistant)
• Float Bowl Gaskets: Upgraded High Performance Interface Material
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
SUZUKI LT-A400F KINGQUAD 400 ASi 4x4 (AUTOMATIC):
• Suzuki LT-A400F KingQuad 400 ASi 4x4 (2008)
• Suzuki LT-A400F KingQuad 400 ASi 4x4 (2009)
• Suzuki LT-A400F KingQuad 400 ASi 4x4 (2010)

SUZUKI LT-A400 KINGQUAD 400 AS 2x4 (AUTOMATIC):
• Suzuki LT-A400 KingQuad 400 AS 2x4 (2008)
• Suzuki LT-A400 KingQuad 400 AS 2x4 (2009)

SUZUKI LT-F400F KINGQUAD 400 FSi 4x4 (5-SPEED):
• Suzuki LT-F400F KingQuad 400 FSi 4x4 (2008)
• Suzuki LT-F400F KingQuad 400 FSi 4x4 (2009)
• Suzuki LT-F400F KingQuad 400 FSi 4x4 (2010)

SUZUKI LT-F400 KINGQUAD 400 FS 2x4 (5-SPEED):
• Suzuki LT-F400 KingQuad 400 FS 2x4 (2008)

ENGINE SPECIFICATIONS:
• 376cc Air-Cooled with SACS, SOHC 4-Valve Single Cylinder Four-Stroke
• Bore x Stroke: 82.0mm x 71.2mm (3.23" x 2.80")
• SACS: Suzuki Advanced Cooling System (Oil Cooler + Thermostat-Controlled Cooling Fan)
• Gear-Driven Balancer Shaft
• Carburetor: Keihin CVK32 (32mm CV)
• Ignition: Electronic CDI
• Starting: Electric with Start-in-Gear Feature

TRANSMISSION VARIANTS:
• AS/ASi (LT-A): Quadmatic CVT Automatic with Hi/Lo Range + Reverse
• FS/FSi (LT-F): 5-Speed Manual Shift with Automatic Clutch, Hi/Lo Sub-Transmission + Reverse

CHASSIS:
• Drive: Selectable 2WD/4WD (4x4 models) with Torque-Sensing Limited-Slip Front Differential
• Front Suspension: Independent A-Arm, 6.7" Travel
• Rear Suspension: Swingarm with Twin Shocks, 6.7" Travel
• Front Brakes: Dual Hydraulic Disc (190mm, 34mm Pistons)
• Rear Brake: Drum
• Fuel Capacity: 4.2 Gallons
• Tires: 25" Maxxis

NOTE: 2011+ KingQuad 400 models switched to Electronic Fuel Injection (EFI) and do not use a carburetor.
