Carburetor Rebuild Kit Compatible With Suzuki King Quad 300 Ltf4wdx 4X4 1991-1998 Ltf300f 1999

OEM PART NUMBERS:
• Suzuki: 13200-19B92 (Carburetor Assembly — LTF4WDX/LTF300F 1994-1999)
• Suzuki: 13383-38B00 (Gasket)
• Suzuki: 13370-44500 (Needle Valve Assembly)
• Suzuki: 13279-47070, 13251-42A00 (Components)
• Suzuki: 13394-10010, 13394-40D20 (Float Components)
• Suzuki: 13374-44080, 13374-35C00 (Jet Components)
• Suzuki: 02112-04083, 02112-0408A (Screws)
• Suzuki: 02112-04163, 02112-0416A (Screws)

SPECIFICATIONS:
• Product Type: Carburetor Rebuild Kit
• Carburetor: Mikuni BST31SS (31mm CV)

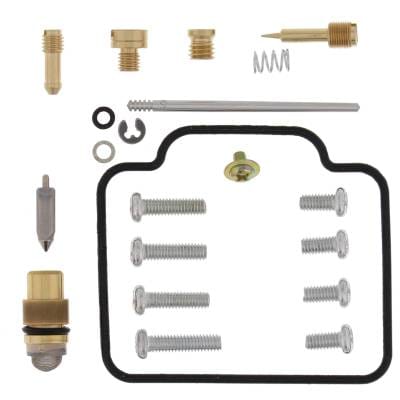

• Kit Contents: O-Rings, Gaskets, Jets, Needle, Mixture Screw, Float Bowl Screws, Float Valve Needle and Seat
• O-Ring Material: NBR Rubber (Ethanol Resistant)
• Float Bowl Gaskets: Upgraded High Performance Interface Material
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
SUZUKI LT-F4WDX KING QUAD 300 4x4:
• Suzuki LT-F4WDX King Quad 300 4x4 (1991)
• Suzuki LT-F4WDX King Quad 300 4x4 (1992)
• Suzuki LT-F4WDX King Quad 300 4x4 (1993)
• Suzuki LT-F4WDX King Quad 300 4x4 (1994)
• Suzuki LT-F4WDX King Quad 300 4x4 (1995)
• Suzuki LT-F4WDX King Quad 300 4x4 (1996)
• Suzuki LT-F4WDX King Quad 300 4x4 (1997)
• Suzuki LT-F4WDX King Quad 300 4x4 (1998)

SUZUKI LT-F300F KING QUAD 4x4:
• Suzuki LT-F300F King Quad 300 4x4 (1999)

ENGINE SPECIFICATIONS:
• 280cc Air-Cooled OHC (Overhead Cam) Single Cylinder Four-Stroke
• Bore x Stroke: 68.5mm x 76.0mm (2.70" x 2.99")
• Compression Ratio: 9.2:1
• Power Output: ~25 HP
• Carburetor: Mikuni BST31SS (31mm CV)
• Ignition: CDI
• Starting: Electric with Recoil Backup

DRIVETRAIN:
• Transmission: 5-Speed with Reverse
• Final Drive: Shaft
• Drive System: Selectable 2WD/4WD with Lockable Front Differential

CHASSIS:
• Front Suspension: Independent Double Wishbone
• Rear Suspension: Swingarm with Single Shock
• Ground Clearance: 8.3"
• Dry Weight: ~610 lbs
