Carburetor Rebuild Kit Compatible With Suzuki Eiger 400 Auto Manual 4Wd 2Wd Lta400f Ltf400f

OEM PART NUMBERS:
• Suzuki: 13200-38F4V (Carburetor Assembly — Latest)
• Suzuki: 13200-38FCV, 13200-38FBV (Carburetor Assembly)
• Suzuki: 13200-38FC2, 13200-38FC0 (Carburetor Assembly)
• Suzuki: 13200-38FB2, 13200-38FB1, 13200-38FB3
• Suzuki: 13200-38FA0, 13200-38FA1
• Suzuki: 13200-38F2V, 13200-38F40
• Suzuki: 13200-38F22, 13200-38F21
• Suzuki: 13200-38F00, 13200-38F01 (Original)

SPECIFICATIONS:
• Product Type: Carburetor Rebuild Kit
• Carburetor: Keihin CVK32 (32mm CV)
• Engine Platform: Continued as Suzuki KingQuad 400 (2008+)

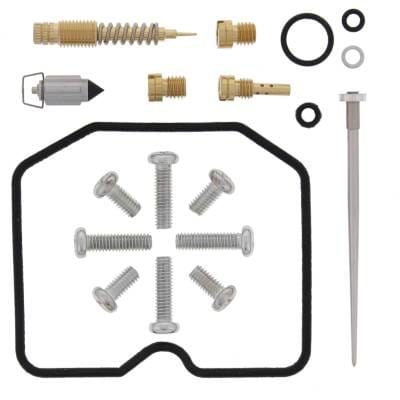

• Kit Contents: O-Rings, Gaskets, Jets, Needle, Mixture Screw, Float Bowl Screws, Float Valve Needle and Seat
• O-Ring Material: NBR Rubber (Ethanol Resistant)
• Float Bowl Gaskets: Upgraded High Performance Interface Material
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
SUZUKI LT-A400F EIGER 400 AUTO 4x4:
• Suzuki LT-A400F Eiger 400 Auto 4x4 (2002)
• Suzuki LT-A400F Eiger 400 Auto 4x4 (2003)
• Suzuki LT-A400F Eiger 400 Auto 4x4 (2004)
• Suzuki LT-A400F Eiger 400 Auto 4x4 (2005)
• Suzuki LT-A400F Eiger 400 Auto 4x4 (2006)
• Suzuki LT-A400F Eiger 400 Auto 4x4 (2007)

SUZUKI LT-A400 EIGER 400 AUTO 2x4:
• Suzuki LT-A400 Eiger 400 Auto 2x4 (2002)
• Suzuki LT-A400 Eiger 400 Auto 2x4 (2003)
• Suzuki LT-A400 Eiger 400 Auto 2x4 (2004)
• Suzuki LT-A400 Eiger 400 Auto 2x4 (2005)
• Suzuki LT-A400 Eiger 400 Auto 2x4 (2006)
• Suzuki LT-A400 Eiger 400 Auto 2x4 (2007)

SUZUKI LT-F400F EIGER 400 MANUAL 4x4:
• Suzuki LT-F400F Eiger 400 Manual 4x4 (2002)
• Suzuki LT-F400F Eiger 400 Manual 4x4 (2003)
• Suzuki LT-F400F Eiger 400 Manual 4x4 (2004)
• Suzuki LT-F400F Eiger 400 Manual 4x4 (2005)
• Suzuki LT-F400F Eiger 400 Manual 4x4 (2006)
• Suzuki LT-F400F Eiger 400 Manual 4x4 (2007)

SUZUKI LT-F400 EIGER 400 MANUAL 2x4:
• Suzuki LT-F400 Eiger 400 Manual 2x4 (2002)
• Suzuki LT-F400 Eiger 400 Manual 2x4 (2003)
• Suzuki LT-F400 Eiger 400 Manual 2x4 (2004)
• Suzuki LT-F400 Eiger 400 Manual 2x4 (2005)
• Suzuki LT-F400 Eiger 400 Manual 2x4 (2006)
• Suzuki LT-F400 Eiger 400 Manual 2x4 (2007)

ENGINE SPECIFICATIONS:
• 376cc Air-Cooled with SACS, SOHC 4-Valve Single Cylinder Four-Stroke
• Bore x Stroke: 82.0mm x 71.2mm (3.23" x 2.80")
• SACS: Suzuki Advanced Cooling System (Oil Cooler + Thermostat-Controlled Cooling Fan)
• Gear-Driven Balancer Shaft
• Carburetor: Keihin CVK32 (32mm CV)
• Ignition: Electronic CDI
• Starting: Electric with Recoil Backup

TRANSMISSION VARIANTS:
• Auto (LT-A): Quadmatic CVT Automatic with Hi/Lo Range + Reverse
• Manual (LT-F): 5-Speed Foot Shift with Automatic Clutch + Reverse

CHASSIS:
• Drive: Selectable 2WD/4WD (4x4 models) with Front Differential
• Front Suspension: Independent A-Arm
• Rear Suspension: Swingarm with Twin Shocks
• Front Brakes: Dual Hydraulic Disc
• Rear Brake: Drum
• Fuel Capacity: 4.2 Gallons
