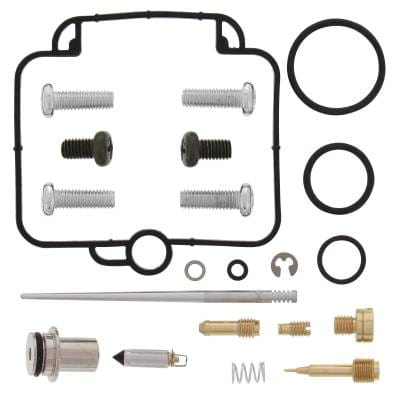

Carburetor Rebuild Kit Compatible With Polaris Sportsman 500 Ho 4X4 Duse Rse Worker 2001 2002 2003

OEM PART NUMBERS:
• Polaris: 3130922 (Carburetor Repair Kit)

SPECIFICATIONS:
• Engine Model: Fuji EH50PLE (Various Suffixes by Year)
• Displacement: 499cc
• Configuration: Liquid-Cooled SOHC 4-Valve 4-Stroke Single Cylinder
• Bore x Stroke: 92.0mm x 75.0mm
• Compression Ratio: 10.2:1
• Cooling: Liquid-Cooled
• Lubrication: Pressurized Dry Sump
• Carburetor: Mikuni BST 40mm CV (Constant Velocity)
• Main Jet: #152.5 (included)
• Pilot Jet: #40
• Air Jet: #13
• Pilot Air Jet: #160
• Jet Needle: 6MGH1-94-3 (clip position 3)
• Needle Jet: X-6M
• Pilot Screw: 2.0 Turns Out (Initial Setting)
• Float Height: 14.7mm
• Fuel Delivery: Impulse Fuel Pump
• Max RPM: 7000
• Alternator: 250-260 Watts
• Transmission: Automatic PVT (HI/LO/R/N/P)
• Drivetrain: On-Demand AWD 4x4 / Shaft Drive
• Fuel Capacity: 4.25 GallonsPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
POLARIS SPORTSMAN 500 HO / DUSE / RSE / WORKER / TOURING / FOREST:
• Polaris Sportsman 500 4x4 DUSE HO (2001)
• Polaris Sportsman 500 4x4 HO (2001-2013)
• Polaris Sportsman 500 4x4 RSE (2001-2002)
• Polaris Worker 500 4x4 (2001)
• Polaris Sportsman 500 4x4 DUSE (2002)
• Polaris Sportsman 500 4x4 HO (2003)
• Polaris Sportsman 500 4x4 HO AA AC AE AG (2004)
• Polaris Sportsman 500 4x4 HO AO AX (2004)
• Polaris Sportsman 500 4x4 HO (2005-2013)
• Polaris Sportsman Touring 500 4x4 (2010-2013)
• Polaris Sportsman Forest 500 4x4 (2011-2013)
