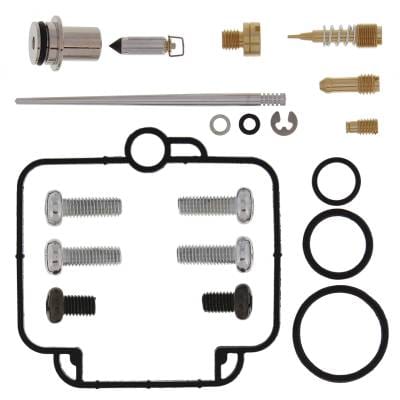

Carburetor Rebuild Kit Compatible With Polaris Scrambler 500 2X4 4X4 1997 1998 1999 2000 2001 2002

OEM PART NUMBERS:
• Polaris: 3130922 (Carburetor Repair Kit)
• Moose: 1003-0083

SPECIFICATIONS:
• Engine Model: Fuji EH500PLE (Various Suffixes by Year)
• Displacement: 499cc
• Configuration: Liquid-Cooled SOHC 4-Valve 4-Stroke Single Cylinder
• Bore x Stroke: 92.0mm x 75.0mm
• Compression Ratio: 10.2:1
• Cooling: Liquid-Cooled
• Lubrication: Pressurized Dry Sump
• Carburetor: Mikuni BST 40mm CV (Constant Velocity)
• Main Jet: #152.5 (included in kit)
• Pilot Jet: #40
• Air Jet: #13
• Pilot Air Jet: #160
• Jet Needle: 6H25-94-3 (clip position 3)
• Needle Jet: Y-0M (896)
• Pilot Screw: 2.0 Turns Out (Initial Setting)
• Float Height: 13mm
• Fuel Delivery: Impulse Fuel Pump
• Idle Speed: 1200 RPM ± 100
• Max RPM: 6500
• Alternator: 250 Watts
• Transmission: Automatic PVT (F/N/R)
• Drivetrain: On-Demand AWD 4x4 or 2WD / Chain Drive
• Fuel Capacity: 3.5 Gallons (2x4) / 4.0 Gallons (4x4)PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
POLARIS SCRAMBLER 500 APPLICATIONS:
• Polaris Scrambler 500 4x4 (1997)
• Polaris Scrambler 500 4x4 (1998)
• Polaris Scrambler 500 4x4 (1999)
• Polaris Scrambler 500 2x4 (2000)
• Polaris Scrambler 500 4x4 (2000)
• Polaris Scrambler 500 2x4 (2001)
• Polaris Scrambler 500 4x4 (2001)
• Polaris Scrambler 500 2x4 (2002)
• Polaris Scrambler 500 4x4 (2002)
• Polaris Scrambler 500 2x4 (2003)
• Polaris Scrambler 500 4x4 (2003)
• Polaris Scrambler 500 2x4 (2004)
• Polaris Scrambler 500 4x4 (2004)
• Polaris Scrambler 500 2x4 (2005)
• Polaris Scrambler 500 4x4 (2005)
• Polaris Scrambler 500 2x4 (2006)
• Polaris Scrambler 500 4x4 (2006)
• Polaris Scrambler 500 2x4 (2007)
• Polaris Scrambler 500 4x4 (2007)
• Polaris Scrambler 500 2x4 (2008)
• Polaris Scrambler 500 4x4 (2008)
• Polaris Scrambler 500 4x4 (2009)
