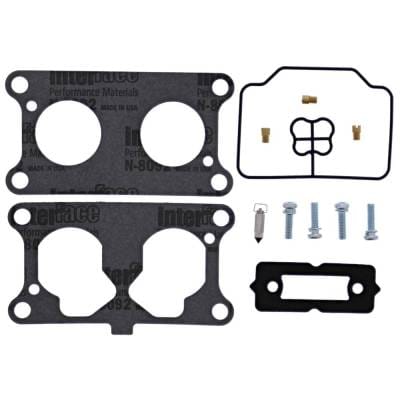

Carburetor Rebuild Kit Compatible With Kawasaki Mule 3000 Kaf620g Mule 3010 4X4 Kaf620e Mule 3020

OEM PART NUMBERS:
• Kawasaki: 15003-2766 (Carburetor Assembly)
• Kawasaki: 11060-2478, 11060-2479 (Gaskets)
• Kawasaki: 11061-2090, 11061-2091 (Gaskets)
• Kawasaki: 214B0414 (Jet)
• Kawasaki: 92063-2403, 92063-2402 (O-Rings)
• Kawasaki: 92064-2132 (Seal)

SPECIFICATIONS:
• Engine: KAF620 617cc Liquid-Cooled OHV V-Twin 4-Stroke
• Bore x Stroke: 76.0mm x 68.0mm
• Compression Ratio: 10.3:1
• Cooling: Liquid-Cooled
• Carburetor: Mikuni BW26-18
• Air Filter: Snorkel-Type Cyclone Two-Stage Dry Element
• Oil Filter: Automotive-Type Spin-On Canister
• Transmission: 2-Range Automatic (Variable Speed CVT)
• Drivetrain: Selectable 2WD/4WD / Shaft Drive
• Vehicle Type: Side-by-Side UTV
• Payload Capacity: 1,000 lbs
• Towing Capacity: 1,200 lbs
• Seating: 2 Passengers
• Wheelbase: 73.6 inchesPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
KAWASAKI MULE 3000 / 3010 / 3020 APPLICATIONS:
• Kawasaki Mule 3000 KAF620G (2001-2008)
• Kawasaki Mule 3010 4x4 KAF620E (2001-2008)
• Kawasaki Mule 3020 Turf KAF620F (2001-2003)
