Carburetor Rebuild Kit Compatible With Kawasaki Brute Force 650 4X4i Kvf650 2006-2013 633Cc V-Twin

OEM PART NUMBERS:
• Kawasaki: 15003-0095 (Carburetor Assembly)
• Kawasaki: 15003-1755 (Carburetor Assembly)
• Kawasaki: 15003-1557 (Carburetor Assembly)
• Kawasaki: 15003-1670 (Carburetor Assembly)
• Kawasaki: 15003-1756 (Carburetor Assembly)
• Kawasaki: 15004-0037 (Carburetor Assembly)
• Kawasaki: 16030-1007 (Carburetor Repair Kit)

SPECIFICATIONS:
• Product Type: Carburetor Rebuild Kit (Dual Carb - Components for Both Carburetors)
• Carburetors: (2) Keihin CVKR-D32 (32mm Downdraft Constant Velocity)

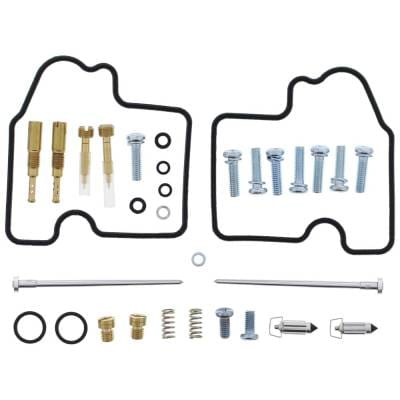

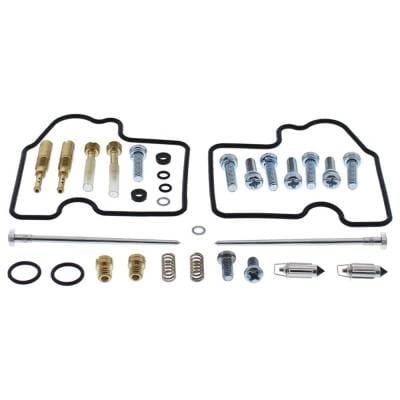

• Kit Contents: O-Rings, Gaskets, Jets, Needles, Mixture Screws, Float Bowl Screws, Float Valve Needles and Seats for Both Carburetors
• O-Ring Material: NBR Rubber (Ethanol Resistant)
• OEM Jet Sizes Included
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
KAWASAKI KVF650 BRUTE FORCE 650 4x4i:
• Kawasaki KVF650 Brute Force 650 4x4i (2006)
• Kawasaki KVF650 Brute Force 650 4x4i (2007)
• Kawasaki KVF650 Brute Force 650 4x4i (2008)
• Kawasaki KVF650 Brute Force 650 4x4i (2009)
• Kawasaki KVF650 Brute Force 650 4x4i (2010)
• Kawasaki KVF650 Brute Force 650 4x4i (2011)
• Kawasaki KVF650 Brute Force 650 4x4i (2012)
• Kawasaki KVF650 Brute Force 650 4x4i (2013)

ENGINE SPECIFICATIONS:
• 633cc Liquid-Cooled 90-Degree V-Twin SOHC 4-Valve Four-Stroke
• Bore x Stroke: 80mm x 63mm (3.15" x 2.48")
• Compression Ratio: 9.9:1
• Power Output: ~47 HP @ 7,500 RPM
• Max Torque: 37.9 ft-lbs @ 5,500 RPM
• Carburetors: (2) Keihin CVKR-D32 Downdraft
• Ignition: DC-CDI
• Starting: Electric with Recoil Backup

DRIVETRAIN:
• Transmission: KAPS Dual-Range CVT (H, L, N, R)
• Kawasaki Engine Brake Control
• Final Drive: Shaft
• Selectable 2WD/4WD with Variable Front Differential Control
• Limited-Slip Front Differential

CHASSIS:
• Frame: Double Cradle Tubular Steel
• Front Suspension: Independent Double Wishbone, Adjustable Preload
• Rear Suspension: Independent Double Wishbone, Adjustable Preload
• Front Brakes: Dual-Piston Disc
• Rear Brakes: Sealed Oil-Bathed Multi-Disc
• Total Rack Capacity: 264 lbs
• Ground Clearance: 9.0" (Center)
