Carburetor Rebuild Kit Compatible With Kawasaki Brute Force 300 Kvf300c 2012-2018 271Cc

OEM PART NUMBERS:
• Kawasaki: 15004-Y004 (Carburetor Assembly)

SPECIFICATIONS:
• Product Type: Carburetor Rebuild Kit
• Carburetor: Keihin CVK32 (32mm Constant Velocity)
• Jetting: Main Jet #125, Pilot Jet #38

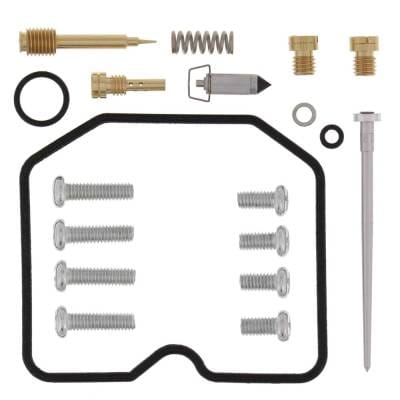

• Kit Contents: O-Rings, Gaskets, Jets, Needle, Mixture Screw, Float Bowl Screws, Float Valve Needle and Seat
• O-Ring Material: NBR Rubber (Ethanol Resistant)
• OEM Jet Sizes Included
• Paper Float Bowl Gaskets Upgraded to High Performance Interface Gasket Material
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
KAWASAKI KVF300 BRUTE FORCE 300:
• Kawasaki KVF300C Brute Force 300 (2012)
• Kawasaki KVF300C Brute Force 300 (2013)
• Kawasaki KVF300C Brute Force 300 (2014)
• Kawasaki KVF300C Brute Force 300 (2015)
• Kawasaki KVF300C Brute Force 300 (2016)
• Kawasaki KVF300C Brute Force 300 (2017)
• Kawasaki KVF300 Brute Force (2018)

ENGINE SPECIFICATIONS:
• 271cc Liquid-Cooled SOHC Single-Cylinder Four-Stroke
• Bore x Stroke: 72.7mm x 65.2mm (2.86" x 2.57")
• Compression Ratio: 11.0:1
• Max Torque: 15.9 ft-lbs @ 6,500 RPM
• Carburetor: Keihin CVK32 (32mm Constant Velocity)
• Main Jet: #125, Pilot Jet: #38
• Ignition: DC-CDI
• Starting: Electric Start

DRIVETRAIN:
• Transmission: Automatic CVT with Centrifugal Clutch
• Gear Selection: H, L, N, R
• Final Drive: Shaft
• Drive: 2WD

CHASSIS:
• Front Suspension: Independent Double Wishbone, 5.2" Travel
• Rear Suspension: Swingarm, 5.6" Travel
• Front Brakes: Dual 180mm Discs
• Rear Brakes: Single 180mm Disc
• Fuel Tank: 3.2 Gallons
• Ground Clearance: 6.1"
• Towing Capacity: 500 lbs
• Curb Weight: ~536 lbs
