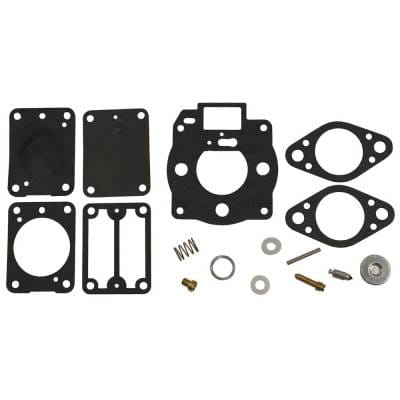

Carburetor Rebuild Kit Compatible With Craftsman 917254450 917255970 917257561 917258492 Briggs &

BRIGGS & STRATTON OEM PART NUMBERS:
• 693503
• 693501

SPECIFICATIONS:
• Product Type: Carburetor Overhaul / Rebuild Kit
• Engine Type: Briggs & Stratton Opposed Twin Cylinder
• Valve Configuration: L-Head (Side Valve)
• Displacement: 694cc (42.35 CID)
• Horsepower: 18HP
• Cylinder Bore: 87.3mm (3.44")
• Piston Stroke: 58.0mm (2.28")
• PTO Shaft: Vertical
• Fuel Pump Mounting: 4 Screw
• Included: Diaphragm
• Exclusions: Does Not Contain Two Throttle Plate Screws
• Ethanol: Not Compatible with Greater Than 10% Ethanol Fuel
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
BRIGGS & STRATTON ENGINE MODELS (4-SCREW FUEL PUMP):
• 422432 / 422435 / 422437 / 422442 / 422445 / 422447
• 422707 / 422777
• 42A707 / 42A777
• 42B707
• 42D707 / 42D777
• 42E707 / 42E777
• Opposed Twin Cylinder L-Head (Side Valve) / 694cc (42.35 CID) / 18HP

CRAFTSMAN RIDING LAWN TRACTORS:
• 917254450
• 917255970
• 917257561
• 917258492

ENGINE SERIES:
• 422400 Series / 422700 Series
• 42A700 Series / 42B700 Series
• 42D700 Series / 42E700 Series
