Carburetor Rebuild Kit Compatible With Arctic Cat 400 Fis 4X4 Manual Trans 2002 376Cc Keihin Cvk34

OEM PART NUMBERS:
• Arctic Cat: 0470-449 (Carburetor Assembly — Latest)
• Arctic Cat: 0470-433 (Carburetor Assembly — Superseded)
• Arctic Cat: 0470-390 (Carburetor Assembly — Original)

SPECIFICATIONS:
• Product Type: Carburetor Rebuild Kit
• Carburetor: Keihin CVK34 (34mm CV)
• Engine Platform: 376cc Air-Cooled SOHC 4-Valve (Suzuki)

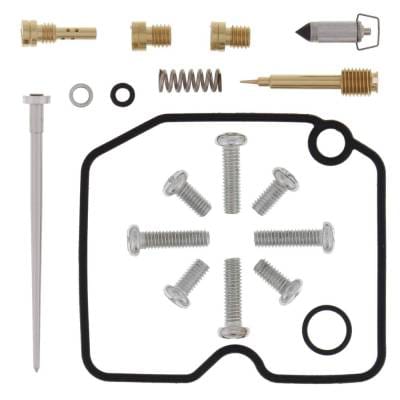

• Kit Contents: O-Rings, Gaskets, Jets, Needle, Mixture Screw, Float Bowl Screws, Float Valve Needle and Seat
• O-Ring Material: NBR Rubber (Ethanol Resistant)
• Float Bowl Gaskets: Upgraded High Performance Interface Material
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
ARCTIC CAT 400 4x4 MANUAL TRANSMISSION:
• Arctic Cat 400 4x4 w/MT (2002)
• Arctic Cat 400 FIS 4x4 w/MT (2002)

ENGINE SPECIFICATIONS:
• 376cc Air-Cooled SOHC 4-Valve Single Cylinder Four-Stroke (Suzuki-Supplied)
• Bore x Stroke: 82.0mm x 71.2mm (Oversquare)
• Compression Ratio: 9.2:1
• Carburetor: Keihin CVK34 (34mm CV)
• Gear-Driven Counterbalancer
• Ignition: CDI
• Starting: Electric with Recoil Backup

DRIVETRAIN:
• Transmission: 5-Speed Manual with Automatic Centrifugal Clutch
• Drivetrain: Selectable 2WD/4WD with Front Locking Differential
• Final Drive: Shaft

CHASSIS:
• Front Suspension: Independent Double A-Arm
• Rear Suspension: Independent Double A-Arm
• Brakes: Hydraulic Disc (Front and Rear)

CARBURETOR CONTEXT — 2002 AC 400 SPLIT:
• 1998-2001: Mikuni BST-Type (31mm) — Use Kit 26-1078
• 2002 Manual Trans: Keihin CVK34 (34mm) — Use THIS Kit 26-1068
• 2002 Auto Trans: Keihin CVK32 (32mm) — Different kit needed
• The 2002 model year was a major transition — new carburetor brand, new chassis features, introduction of FIS digital gauge package
