Carburetor Rebuild Kit Compatible With Arctic Cat 400 2X4 4X4 Manual 1998-2001 376Cc Suzuki Engine

OEM PART NUMBERS:
• Arctic Cat: 0470-348 (Carburetor Assembly)
• Arctic Cat: 0470-352 (Carburetor Assembly)
• Arctic Cat: 0470-362, 0470-367
• Arctic Cat: 4505-022 (Carburetor Repair Kit)

SPECIFICATIONS:
• Product Type: Carburetor Rebuild Kit
• Carburetor: Mikuni BST-Type (31mm CV)
• Engine Platform: 376cc Air-Cooled SOHC 4-Valve (Suzuki)

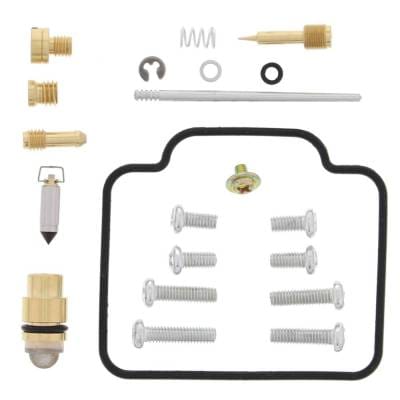

• Kit Contents: O-Rings, Gaskets, Jets, Needle, Mixture Screw, Float Bowl Screws, Float Valve Needle and Seat
• O-Ring Material: NBR Rubber (Ethanol Resistant)
• Float Bowl Gaskets: Upgraded High Performance Interface Material
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
ARCTIC CAT 400 4x4:
• Arctic Cat 400 4x4 (1998)
• Arctic Cat 400 4x4 (1999)
• Arctic Cat 400 4x4 (2000)

ARCTIC CAT 400 2x4:
• Arctic Cat 400 2x4 (1999)
• Arctic Cat 400 2x4 (2000)
• Arctic Cat 400 2x4 (2001)

ARCTIC CAT 400 4x4 MANUAL TRANSMISSION:
• Arctic Cat 400 4x4 w/MT (2001)

ENGINE SPECIFICATIONS:
• 376cc Air-Cooled with SACS SOHC 4-Valve Single Cylinder Four-Stroke (Suzuki-Supplied)
• Bore x Stroke: 82.0mm x 71.2mm (Oversquare)
• Gear-Driven Counterbalancer
• Carburetor: Mikuni BST-Type (31mm CV)
• Ignition: CDI
• Starting: Electric with Recoil Backup

DRIVETRAIN:
• 4x4: Duramatic Automatic CVT with Hi/Lo Range + Reverse (1998-2000)
• 4x4 w/MT: 5-Speed Manual with Hi/Lo Range + Reverse (2001)
• 2x4: 5-Speed Manual with Automatic Clutch + Reverse
• Final Drive: Shaft
• 4x4: Selectable 2WD/4WD with Lockable Front Differential

CHASSIS:
• Front Suspension: Independent Double A-Arm
• Rear Suspension: Independent Double A-Arm
• Brakes: Hydraulic Disc (All Corners)
• Fuel Capacity: 4.75 Gallons

ENGINE HERITAGE:
• Same Suzuki 376cc engine platform used in Suzuki Eiger 400 (LT-A/F400F)
• 82.0mm bore x 71.2mm stroke shared with Eiger 400 and KingQuad 400
• Suzuki supplied engines and transmissions to Arctic Cat from 1976
