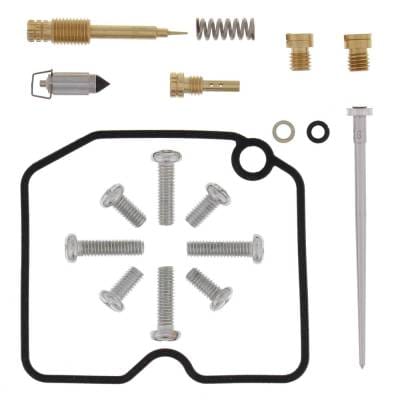

Carburetor Rebuild Kit Compatible With Arctic Cat 366 Fis 4X4 Auto 2008 366Cc Keihin Cvk34 Replaces

OEM PART NUMBERS:
• Arctic Cat: 0470-737 (Carburetor Assembly — Latest)
• Arctic Cat: 0470-843 (Carburetor Assembly — Superseded)
• Arctic Cat: 0470-738, 0470-667 (Alternate Carb Numbers)

SPECIFICATIONS:
• Product Type: Carburetor Rebuild Kit
• Carburetor: Keihin CVK34 (34mm CV)
• Engine Platform: 366cc Air/Oil-Cooled SOHC 4-Valve
• Kit Contents: O-Rings, Gaskets, Jets, Needle, Mixture Screw, Float Bowl Screws, Float Valve Needle and Seat
• O-Ring Material: NBR Rubber (Ethanol Resistant)
• Float Bowl Gaskets: Upgraded High Performance Interface Material
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
ARCTIC CAT 366 FIS 4x4 AUTOMATIC:
• Arctic Cat 366 FIS 4x4 Automatic (2008)

ENGINE SPECIFICATIONS:
• 366cc Air/Oil-Cooled SOHC 4-Valve Single Cylinder Four-Stroke
• Bore x Stroke: 81.0mm x 71.2mm
• Compression Ratio: 10.0:1
• Carburetor: Keihin CVK34 (34mm CV)
• Cooling: Air/Oil Combination
• Ignition: CDI
• Starting: Electric with Recoil Backup

DRIVETRAIN:
• Transmission: Duramatic CVT Automatic with Hi/Lo Range + Reverse
• Drivetrain: Selectable 2WD/4WD with Differential Lock
• Final Drive: Shaft

CHASSIS:
• Front Suspension: Independent Double A-Arm
• Rear Suspension: Independent Double A-Arm
• Brakes: Hydraulic Disc (Front and Rear)
• Ground Clearance: 10 inches
• Dry Weight: 571 lbs
• Fuel Capacity: 4.0 gallons

NOTE — "FIS" NAMING:
• Despite the "FIS" (Fuel Injection System) name, the 2008 Arctic Cat 366 uses a Keihin CVK34 carburetor — NOT fuel injection
• Arctic Cat used the FIS designation inconsistently across their 2008 lineup
• The 366 was never offered with true fuel injection during its production run
