Carburetor Rebuild Kit Compatible With Arctic Cat 300 2X4 4X4 Mrp 2001-2005 280Cc Keihin Cvk32 32Mm

OEM PART NUMBERS:
• Arctic Cat: 0470-448 (Carburetor Assembly — Latest)
• Arctic Cat: 0470-427 (Carburetor Assembly — Original 2001)
• Arctic Cat: 5507-038 (Carburetor Repair Kit)
• Arctic Cat: 5507-068, 5507-017, 5507-055
• Arctic Cat: 5507-040, 5507-246, 5507-058, 5507-057

SPECIFICATIONS:
• Product Type: Carburetor Rebuild Kit
• Carburetor: Keihin CVK32 (32mm CV)
• Jetting: Main #125, Pilot #38, Air Jet 70mm
• Engine Platform: 280cc Air/Oil-Cooled SOHC (Suzuki)

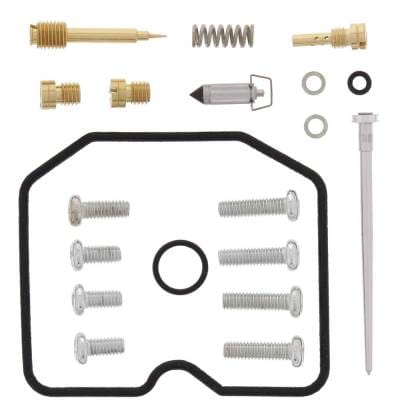

• Kit Contents: O-Rings, Gaskets, Jets, Needle, Mixture Screw, Float Bowl Screws, Float Valve Needle and Seat
• O-Ring Material: NBR Rubber (Ethanol Resistant)
• Float Bowl Gaskets: Upgraded High Performance Interface Material
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
ARCTIC CAT 300 2x4:
• Arctic Cat 300 2x4 (2001)
• Arctic Cat 300 2x4 (2002)
• Arctic Cat 300 2x4 (2003)
• Arctic Cat 300 2x4 (2004)

ARCTIC CAT 300 4x4:
• Arctic Cat 300 4x4 (2001)
• Arctic Cat 300 4x4 (2002)
• Arctic Cat 300 4x4 (2003)
• Arctic Cat 300 4x4 (2004)
• Arctic Cat 300 4x4 (2005)
• Arctic Cat 300 4x4 MRP (2004)

ENGINE SPECIFICATIONS:
• 280cc Air/Oil-Cooled SOHC Single Cylinder Four-Stroke (Suzuki-Supplied)
• Bore x Stroke: 68.5mm x 76.0mm
• Compression Ratio: 9.2:1
• Carburetor: Keihin CVK32 (32mm CV) — Updated for 2001+
• Jetting: Main #125, Pilot #38
• Ignition: CDI
• Starting: Electric with Recoil Backup

DRIVETRAIN:
• Transmission: 5-Speed with Hi/Lo Range + Reverse
• Clutch: Automatic Centrifugal
• Final Drive: Shaft
• 2x4: Rear-Wheel Drive Only
• 4x4: Selectable 2WD/4WD with Lockable Front Differential

CARBURETOR CHANGE — 2001:
• 1998-2000: Mikuni BST31 (31mm) — Use Kit 26-1080
• 2001-2005: Keihin CVK32 (32mm) — Use THIS Kit 26-1076
• Different carburetor brand and design — kits are NOT interchangeable
