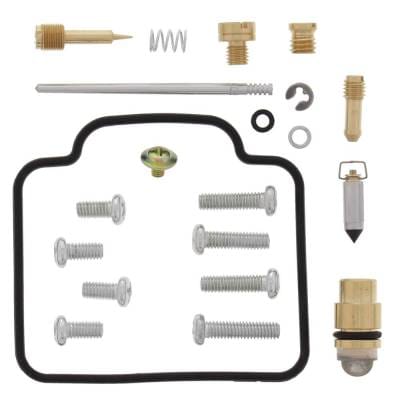

Carburetor Rebuild Kit Compatible With Arctic Cat 300 2X4 4X4 1998 1999 2000 280Cc Suzuki Engine

OEM PART NUMBERS:
• Arctic Cat: 0470-348 (Carburetor Assembly)
• Arctic Cat: 4505-022 (Carburetor Repair Kit)
• Arctic Cat: 4505-061, 4505-044, 4505-016
• Arctic Cat: 4505-059, 4505-060, 4505-057
• Arctic Cat: 6505-610, 4505-005

SPECIFICATIONS:
• Product Type: Carburetor Rebuild Kit
• Carburetor: Mikuni BST31 (31mm CV)
• Jetting: Main #155 (spare #137.5), Pilot #45
• Needle: 4D28
• Engine Platform: 280cc Air/Oil-Cooled SOHC (Suzuki)
• Kit Contents: O-Rings, Gaskets, Jets, Needle, Mixture Screw, Float Bowl Screws, Float Valve Needle and Seat
• O-Ring Material: NBR Rubber (Ethanol Resistant)
• Float Bowl Gaskets: Upgraded High Performance Interface Material
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
ARCTIC CAT 300 2x4:
• Arctic Cat 300 2x4 (1998)
• Arctic Cat 300 2x4 (1999)
• Arctic Cat 300 2x4 (2000)

ARCTIC CAT 300 4x4:
• Arctic Cat 300 4x4 (1998)
• Arctic Cat 300 4x4 (1999)
• Arctic Cat 300 4x4 (2000)

ENGINE SPECIFICATIONS:
• 280cc Air/Oil-Cooled SOHC Single Cylinder Four-Stroke (Suzuki-Supplied)
• Bore x Stroke: 68.5mm x 76.0mm
• Compression Ratio: 9.2:1
• Carburetor: Mikuni BST31 (31mm CV)
• Ignition: CDI
• Starting: Electric with Recoil Backup

DRIVETRAIN:
• Transmission: 5-Speed with Triple Range (Hi/Lo/Super Lo) + Reverse
• Clutch: Automatic Centrifugal
• Final Drive: Shaft
• 2x4: Rear-Wheel Drive Only
• 4x4: Selectable 2WD/4WD with Lockable Front Differential

CHASSIS:
• Front Suspension: Independent Double A-Arm with CV Joints
• Rear Suspension: Dual A-Arm Independent
• Front Brakes: Hydraulic Disc
• Rear Brake: Hydraulic Disc
• Fuel Capacity: 4.25 Gallons

ENGINE HERITAGE:
• Same Suzuki 280cc engine used in Suzuki King Quad 300 (LT-F300F)
• Same Mikuni BST31 carburetor as Suzuki King Quad 300 and QuadRunner 250
• Arctic Cat improved chassis with full independent suspension and disc brakes
