Carburetor Compatible With Intek V-Twin 20Hp 656Cc Ohv 4-Stroke Air-Cooled Vertical Shaft Engine

OEM PART NUMBERS:
• Briggs & Stratton: 699807 / 697722
• Briggs & Stratton: 699815 / 699814
• Briggs & Stratton: 491026
• John Deere: AM135089

SPECIFICATIONS:
• Type: Carburetor Assembly
• Engine Series: Intek V-Twin OHV
• Horsepower: 20 HP
• Displacement: 656cc (40.0 cu in)
• Bore x Stroke: 75.44mm x 73.40mm (2.970" x 2.890")
• Configuration: V-Twin OHV 4-Stroke Air-Cooled Vertical Shaft
• Governed Idle: 1750 RPM
• Spark Plug Gap: 0.76mm (0.030")
• Lubrication: Full Pressure with Oil Filter
• Ethanol: Not compatible with greater than 10% ethanol fuel
• Condition: New

APPLICATION:
• Engine Models: 401577 / 4045A7 / 405577 / 406577 / 407577 / 407777 / 40F777 / 441577 / 441677
• Cub Cadet RZT22 / RZT50 / Z-Force 48 zero turn mowers
• Toro 74591 / 74592 / 74704 lawn tractors
• Riding mowers and lawn tractors with Intek V-Twin 20HP engine
• Does not fit all applications — verify part number by model specifications

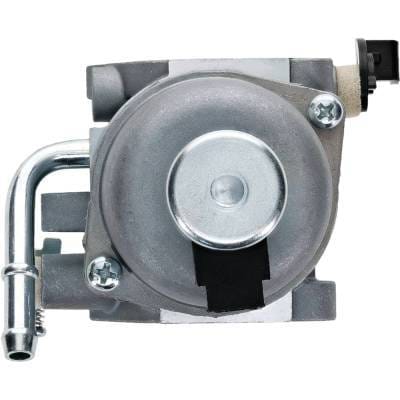

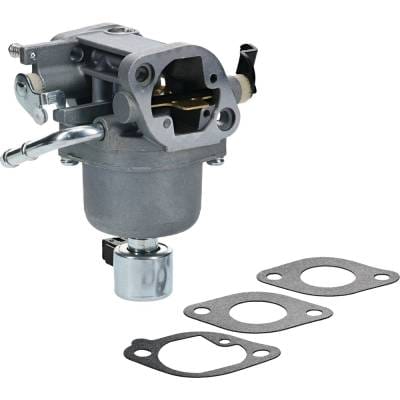

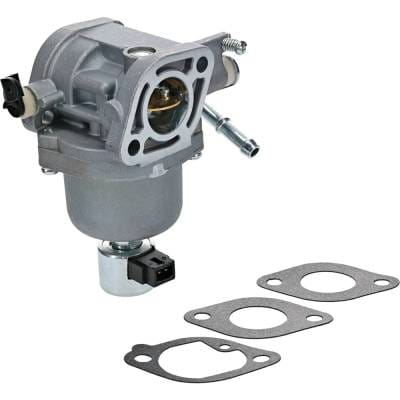

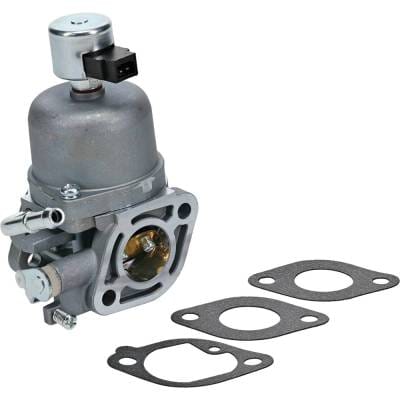

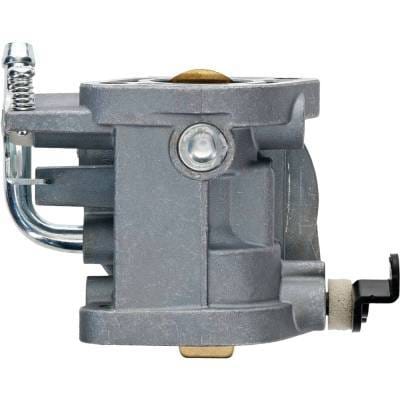

Replacement Carburetor — 699807 / 699815 / 491026
New replacement carburetor for Intek V-Twin 20HP 656cc OHV air-cooled vertical shaft engines. Replaces 699807, 697722, 699815, 699814, 491026, and AM135089. Fits riding mowers, lawn tractors, and zero turn mowers with Intek V-Twin engine. Full pressure lubrication system with oil filter. Not compatible with greater than 10% ethanol fuel.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
ENGINE MODELS — INTEK V-TWIN OHV:
• 401577 Series (401577-0123 through 401577-5887)
• 4025A7 Series (4025A7-0224)
• 4035A7 Series (4035A7-0409)
• 403677 Series (403677-0343)
• 404577 Series (404577-0264 / 404577-0291)
• 4045A7 Series (4045A7-0100 / 0211 / 0259 / 0285 / 0286 / 0307 / 0312)
• 405577 Series (405577-0110 through 405577-0379)
• 406577 / 406677 Series
• 407577 / 407777 / 40F777 Series
• 441577 / 441677 Series

CUB CADET EQUIPMENT:
• RZT22 Zero Turn Mower (17AA5A7P710 / 17AA5A7P712)
• RZT50 Zero Turn Mower (17BA5A7P709 / 17BA5A7P710)
• Z-Force 48 Commercial Ride-On Mower (53AA5A7M710)

JOHN DEERE EQUIPMENT:
• 107H / 125 Lawn Tractors
• L111 / L118 / L120 Lawn Tractors
• LA120 / LA130 Lawn Tractors
• S2046 / 2046HV Lawn Tractors
• X130R / X140 / X155R Tractors

TORO EQUIPMENT:
• 74591 Lawn Tractor (2006)
• 74592 Lawn Tractor (2007-2008)
• 74704 TimeCutter / Lawn Tractor (2005-2006)

ENGINE SPECIFICATIONS:
• Displacement: 656cc (40.0 cu in) / Bore x Stroke: 75.44mm x 73.40mm (2.970" x 2.890")
• Configuration: V-Twin OHV 4-Stroke Air-Cooled Vertical Shaft / 20 HP
• Governed Idle: 1750 RPM / Spark Plug Gap: 0.76mm (0.030")
• Lubrication: Full Pressure with Oil Filter

NOTE: Does not fit all applications. Verify OEM part number by referring to model specifications before ordering.
