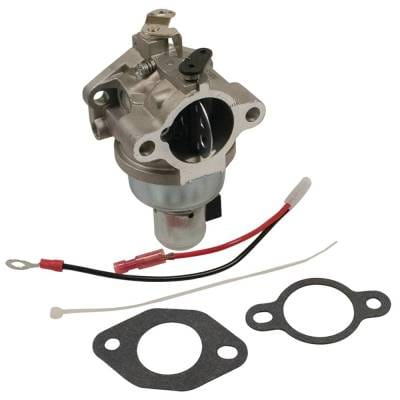

Carburetor Compatible With Courage Sv470 Sv530 Sv540 Sv590 Sv600 Sv610 Cv490 15-22Hp Ohv Vertical

OEM PART NUMBERS:
• Kohler: 20 853 33-S / 2085333S (current)
• Kohler: 20 853 14-S / 2085314S
• Kohler: 20 853 16-S / 2085316S
• Kohler: 20 853 01-S / 2085301S
• Kohler: 20 853 02-S / 2085302S
• Kohler: 20 853 42-S / 2085342S
• Kohler: 20 853 43-S / 2085343S

SPECIFICATIONS:
• Type: Carburetor Kit Complete
• Engine Series: Courage SV / Command CV
• Displacement: 477-597cc (29.1-36.4 cu in)
• Bore: 84.0-94.0mm / Stroke: 86.0mm (3.38")
• Horsepower Range: 15-22 HP
• Carburetor: Walbro Fixed Main Jet
• Mounting: 52mm Center-to-Center
• Fuel Pump: Pulse Type / Governor: Mechanical
• Ethanol: Not compatible with greater than 10% ethanol fuel
• Condition: New

APPLICATION:
• Courage SV470/SV471/SV480/SV530/SV540/SV541 (15-18HP)
• Courage SV590/SV591/SV600/SV601/SV610/SV620 (19-22HP)
• Command CV490/CV491/CV492/CV493
• Cub Cadet, Toro, MTD, Husqvarna, Craftsman riding mowers and lawn tractors
• Does not fit all applications — verify part number by engine model and spec

Replacement Carburetor — 20 853 14-S / 20 853 16-S / 20 853 02-S
New carburetor for Courage SV and Command CV series single cylinder OHV engines rated 15 to 22 HP. Replaces 20 853 33-S, 20 853 14-S, 20 853 16-S, 20 853 01-S, 20 853 02-S, 20 853 42-S, and 20 853 43-S. Walbro fixed main jet with electronic ignition, full pressure lubrication, and mechanical governor. 52mm mounting. Not compatible with greater than 10% ethanol fuel.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
COURAGE SV SERIES ENGINE APPLICATIONS:
• SV470 / SV471 15HP Single Cylinder OHV 477-597cc
• SV480 16HP Single Cylinder OHV 477-597cc
• SV530 17HP Single Cylinder OHV 535-597cc
• SV540 / SV540S / SV541 18HP Single Cylinder OHV 535-597cc
• SV590 / SV590S / SV591 19HP Single Cylinder OHV 597cc (36.4 cu in)
• SV600 / SV600S / SV601 20HP Single Cylinder OHV 597cc (36.4 cu in)
• SV610 21HP Single Cylinder OHV 597cc (36.4 cu in)
• SV620 22HP Single Cylinder OHV 597cc (36.4 cu in)

COMMAND CV SERIES ENGINE APPLICATIONS:
• CV490 / CV491 / CV492 / CV493

EQUIPMENT APPLICATIONS:
• Cub Cadet LT1042 / LT1045 / LTX1042 / LTX1045 / RZT42 / i1046
• Toro TimeCutter Z4200 / Z4220 / 74360 / 74370 / 74380 / 74391
• MTD 13AX79TH090 / 13BX60RG744 / 13BX60RG748
• Husqvarna and Craftsman riding mowers with Courage SV engines

ENGINE SPECIFICATIONS:
• Displacement: 477-597cc (29.1-36.4 cu in) depending on model
• Bore: 84.0-94.0mm (3.30"-3.70") / Stroke: 86.0mm (3.38")
• Compression Ratio: 8.5:1 / Lubrication: Full Pressure / Oil: 2.0 US qt (1.9L)
• Carburetor: Walbro Fixed Main Jet / Fuel Pump: Pulse Type / Governor: Mechanical

NOTE: Does not fit all applications. Verify OEM part number by referring to engine model and spec number before ordering.
