Carburetor Compatible With 103M02 093J02 725Exi 550Ex Series 163Cc 125Cc Single Cylinder Ohv

OEM PART NUMBERS:
• Briggs & Stratton: 596587 (superseded by 592361)
• Briggs & Stratton: 592361 (current)

SPECIFICATIONS:
• Type: Carburetor
• Engine Configuration: Single Cylinder OHV 4-Stroke Air-Cooled Vertical Shaft
• Displacement: 163cc (103M02 / 725EXi) / 125cc (093J02 / 550EX)
• Bore: 2.69" (68.33mm)
• Stroke: 1.75" (44.45mm)
• Gross Torque: 7.25 ft-lbs @ 3,200 RPM (103M02)
• Starting: ReadyStart Auto Choke, Recoil
• Cylinder: Aluminum
• Lubrication: Dura-Lube Splash
• Oil Capacity: 15 oz
• Spark Plug: Champion RC12YC
• Ethanol: Not Compatible with Greater Than 10% Ethanol Fuel
• Condition: New

APPLICATION:
• 103M02 Series 725EXi 163cc OHV Vertical Shaft Engines
• 093J02 Series 550EX 125cc OHV Vertical Shaft Engines
• Walk-Behind Lawn Mowers and Push Mowers
• Does not fit all applications — verify part number by referring to model specifications

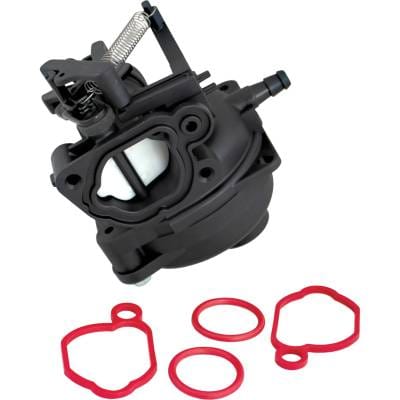

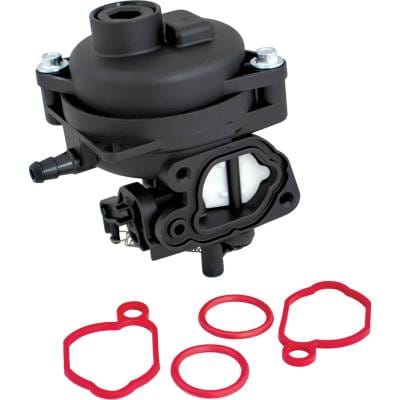

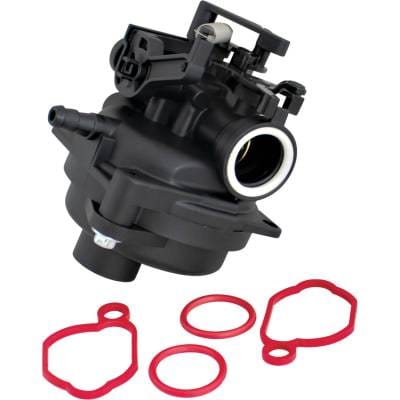

Carburetor — 596587 / 592361
New carburetor for 103M02 and 093J02 series engines. Replaces Briggs & Stratton 596587 and 592361. Fits 725EXi series 163cc and 550EX series 125cc single cylinder OHV 4-stroke air-cooled vertical shaft engines. ReadyStart auto choke system with recoil start. Aluminum cylinder with Dura-Lube splash lubrication. Compatible with walk-behind and push lawn mowers.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
BRIGGS & STRATTON 103M02 ENGINES (725EXi SERIES — 163cc):
• 103M02-0001-F1 163cc OHV Vertical Shaft (725EXi Series)
• 103M02-0002-F1 163cc OHV Vertical Shaft (725EXi Series)
• 103M02-0003-F1 163cc OHV Vertical Shaft (725EXi Series)
• 103M02-0005-F1 163cc OHV Vertical Shaft (725EXi Series)
• 103M02-0008-F1 163cc OHV Vertical Shaft (725EXi Series)
• 103M02-0042-F1 163cc OHV Vertical Shaft (725EXi Series)
• 103M02-0070-F1 163cc OHV Vertical Shaft (725EXi Series)
• 103M02-0102-F1 163cc OHV Vertical Shaft (725EXi Series)

BRIGGS & STRATTON 093J02 ENGINES (550EX SERIES — 125cc):
• 093J02-0001-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0002-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0003-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0004-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0006-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0010-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0011-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0012-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0021-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0022-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0023-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0032-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0035-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0057-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0060-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0063-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0075-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0076-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0082-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0086-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0093-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0098-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0113-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0116-F1 125cc OHV Vertical Shaft (550EX Series)
• 093J02-0124-F1 125cc OHV Vertical Shaft (550EX Series)

ENGINE SPECIFICATIONS (103M02):
• Displacement: 163cc
• Configuration: Single Cylinder OHV 4-Stroke Air-Cooled
• Bore x Stroke: 2.69" x 1.75" (68.33mm x 44.45mm)
• Gross Torque: 7.25 ft-lbs @ 3,200 RPM
• Starting: ReadyStart Auto Choke, Recoil
• Cylinder: Aluminum
• Lubrication: Dura-Lube Splash
• Oil Capacity: 15 oz
• Spark Plug: Champion RC12YC
• Air Cleaner: Dual-Sealing Commercial Grade

EQUIPMENT APPLICATIONS:
• Walk-Behind Lawn Mowers
• Push Mowers
• Self-Propelled Mowers

NOTE: Does not fit all applications. Verify OEM part number by referring to model specifications before ordering.
