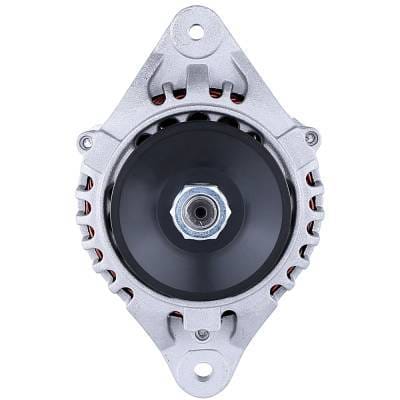

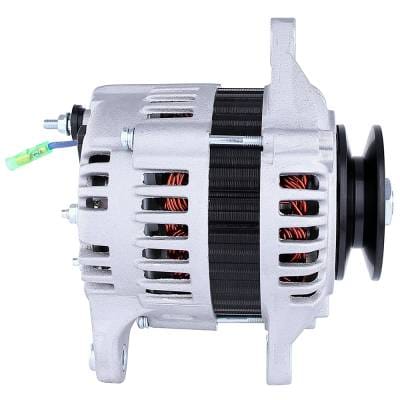

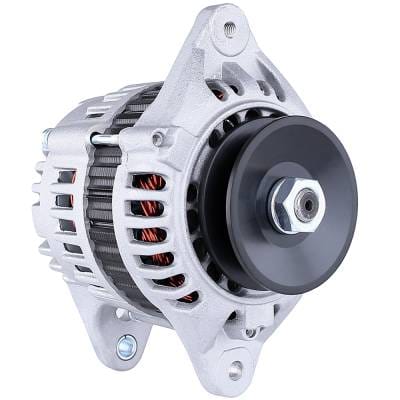

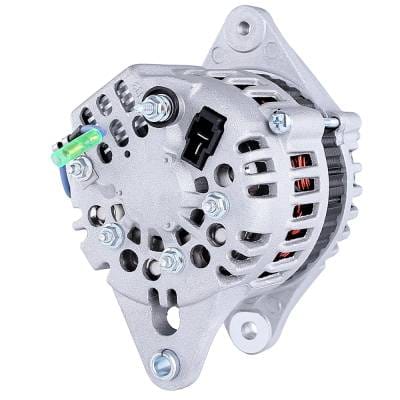

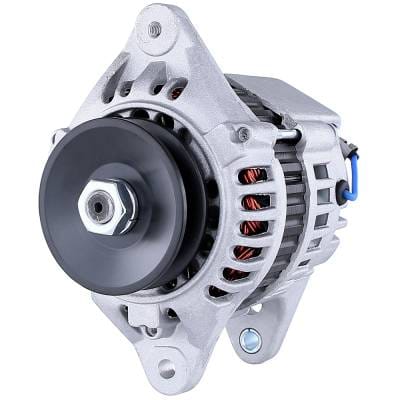

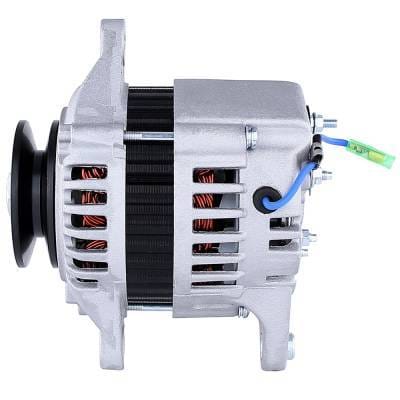

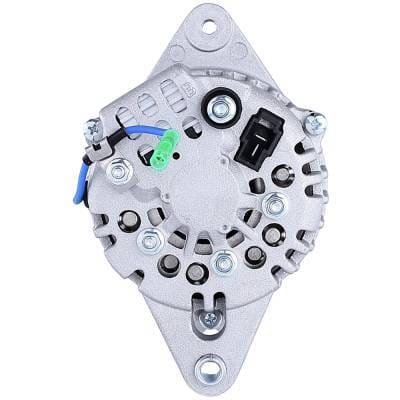

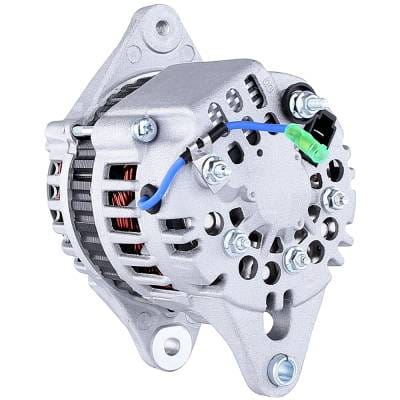

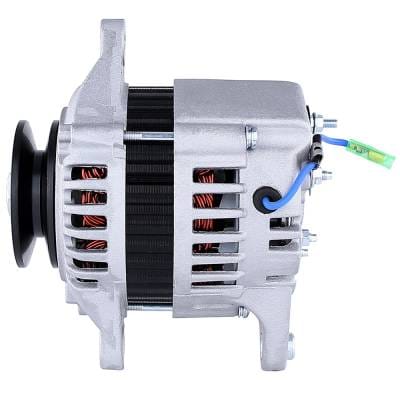

Alternator Compatible With Yanmar Vio-40-2 Vio-50-2 Excavator Marine 3Tne84 4Tne88 Diesel Lr140-714B

OEM PART NUMBERS:
• LR140-714B / LR140714B (Hitachi)
• 119836-77200-2 / 119836772002 (Yanmar)
• 119836-77200-3 / 119836772003 (Yanmar)
• 219210 (Reference)

RELATED OEM NUMBERS (same alternator family):
• LR140-714 / LR140-721 / LR140-721B / LR140-721C / LR140-723 (Hitachi)
• 119836-77200 / 119836-77201 / 129612-77230 (Yanmar)
• AM878581 / AM880733 (John Deere)

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 40A
• Rotation: CW (Clockwise)
• Fan/Regulator: Internal/Internal
• Pulley: V-Belt, 1 Groove
• Regulator Clock: 12:00
• Polarity: Negative
• Mounting: M8-1.25 Threaded / 8.3mm Unthreaded
• Lead: 87mm
• Weight: 8.55 lbs / 3.89 kg
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
YANMAR EXCAVATORS:
• Yanmar VIO-40-2 3TNE88 Diesel - 2001, 2002, 2003, 2004, 2005, 2006
• Yanmar VIO-50-2 3TNE88 Diesel - 2001, 2002, 2003, 2004, 2005, 2006

YANMAR GENERATOR SETS:
• Yanmar Generator Set 4TNE84T Diesel - 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
• Yanmar Various Generator Sets Diesel - 1996

YANMAR MARINE ENGINES:
• Yanmar 3TNE84 3-Cylinder Diesel
• Yanmar 3TNE88 3-Cylinder Diesel
• Yanmar 4TNE84 4-Cylinder 1.995L Diesel
• Yanmar 4TNE88 4-Cylinder 2.190L Diesel
