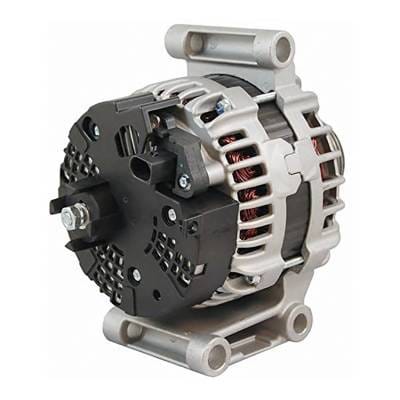

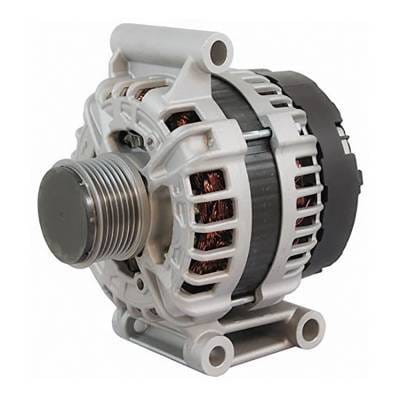

Alternator Compatible With 2015-2019 Ford Transit-350 Transit-250 Transit-150 3.2L 2015-2016 Ranger

OEM PART NUMBERS:
• Bosch: 0125711005 / 0-125-711-005
• Bosch: 0125711046 / 0-125-711-046
• Bosch: 0125711103 / 0-125-711-103
• Bosch: 0125711104 / 0-125-711-104
• Bosch: 0125711133 / 0-125-711-133
• Bosch: 0125711134 / 0-125-711-134
• Bosch Service Europe: 0986082330 / 0-986-082-330
• Ford: CC1T-10300-CA / CC1T-10300-CB / CC1T-10300-CC / CC1T-10300-CD
• Ford: CC1Z-10346-A / RMCC1T-10300-CD
• Ford: 1738113 / 1745662 / 1800123 / 1889372
• Lucas: LRA03639 / LEA0993

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 150A
• Type: Bosch Permanent Magnet (PMA)
• Rotation: CW (Clockwise)
• Fan: Internal
• Regulator: Internal
• Pulley: 7-Groove Serpentine Clutch Pulley
• Pulley OD: 59mm
• Plug Clock: 1
• Plug Orientation: Rear
• Condition: New

APPLICATION:
• Ford Transit-150/250/350/350 HD 3.2L Diesel (2015-2019)
• Ford Ranger 2.2L (2015-2016)
• Ford Europe Transit 2.2 TDCi (2011-2016)
• Ford Europe Ranger TKE 2.2/3.2 TDCi (2011-2015)

Alternator — Ford Transit 3.2L Ranger 2.2L Diesel
New 150-amp Bosch-type alternator for 2015-2019 Ford Transit-150, Transit-250, Transit-350, Transit-350 HD with 3.2L diesel and 2015-2016 Ranger 2.2L. Also covers Ford Europe Transit 2.2 TDCi and Ranger TKE configurations. Permanent magnet design with 7-groove clutch pulley at 59mm OD, clockwise rotation, internal fan and regulator. Replaces CC1Z-10346-A, Bosch 0125711046, and Lucas LRA03639.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
FORD TRANSIT (US MARKET):
• Transit-150 3.2L L5 Power Stroke Diesel (2015-2019)
• Transit-250 3.2L L5 Power Stroke Diesel (2015-2019)
• Transit-350 3.2L L5 Power Stroke Diesel (2015-2019)
• Transit-350 HD 3.2L L5 Power Stroke Diesel (2015-2019)

FORD RANGER:
• Ranger 2.2L L4 2198cc (2015-2016)

FORD EUROPE RANGER (TKE):
• Ranger 2.2 TDCi 96kW/110kW/118kW (2011-2015)
• Ranger 3.2 TDCi 4x4 147kW (2011)

FORD EUROPE TRANSIT:
• Transit Box/Bus/Platform 2.2 TDCi RWD/4x4 74-114kW (2011-2016)
• Transit VII 2198cc Various Engine Codes (2011-2016)

NOTE: Verify OEM part number before ordering to ensure proper fitment.
