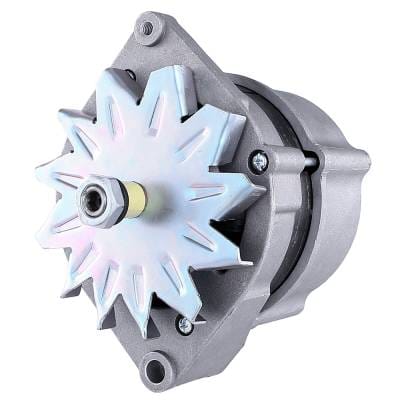

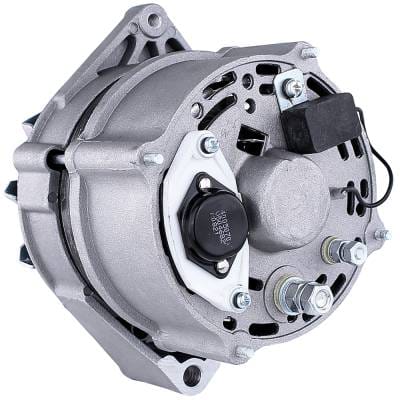

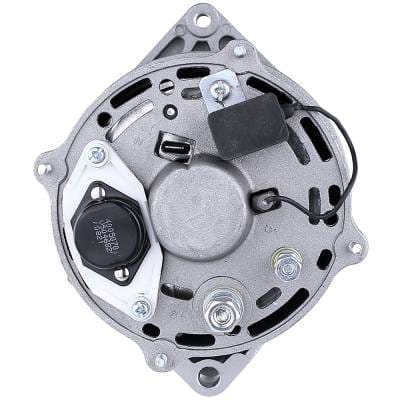

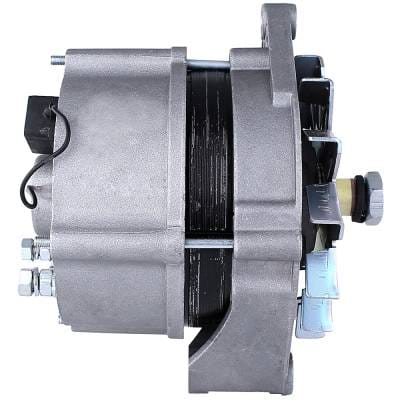

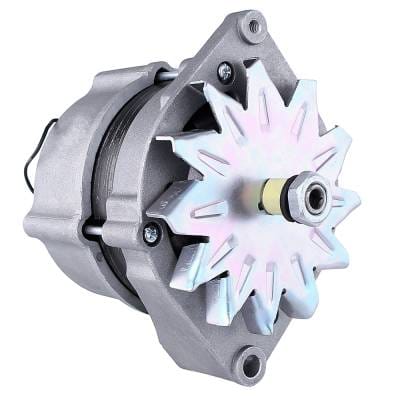

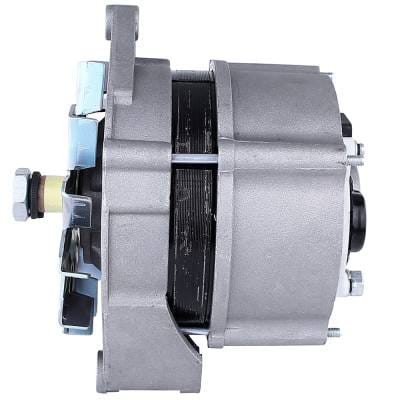

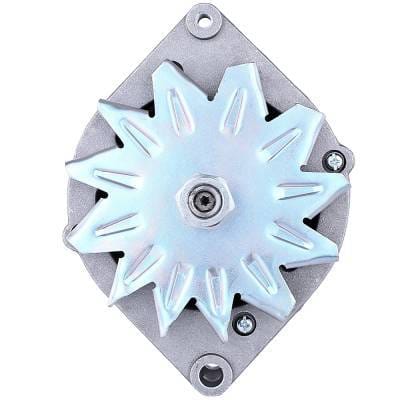

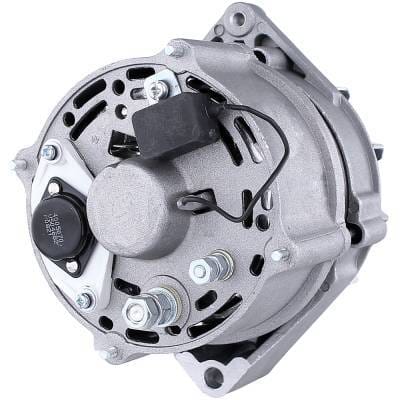

Alternator Compatible With 1988-2001 Case Trencher 25+4 360 560 660 760 860 6030 390 Diesel

OEM PART NUMBERS:
• : 0120489475 / 9120060040
• Reman: AL9959X
• John Deere: AT173624 / AT220393 / SE501387

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 65A
• Fan: External
• Regulator: Internal
• Polarity: Negative
• Regulator Clock: 9:00
• Shaft OD: 0.669in / 17mm
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 10mm Unthreaded
• Weight: 10.6 lbs / 4.82 kg
• Condition: New

APPLICATION:
• Case Tractor 1896/2096/5120-5250/MX100-MX135 Diesel (1984-1999)
• Case Skid Steer 90XT/95XT 390 Diesel (1998-2001)
• Case Trencher 25+4/360/560/660/760/860/6030 (1988-2001)

12V 65A Alternator — Case Farm Tractors / Skid Steers / Trenchers
Direct replacement -type 12V 65A alternator for Case farm tractors, skid steers, and trenchers (1984-2001). Replaces 0120489475, 9120060040, AL9959X, John Deere AT173624, AT220393, SE501387.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
CASE FARM TRACTORS:
• 1896 6-359 Diesel (1984-1989)
• 2096 6-359 Diesel (1984-1989)
• 5120 4-239 Diesel (1990-1991)
• 5130 / 5140 6-359 Diesel (1990-1991)
• 5220 4-239 Diesel (1992-1997)
• 5230 / 5240 / 5250 6-359 Diesel (1992-1997)
• MX100 / MX110 / MX120 / MX135 6-359 Diesel (1997-1999)
• MX100C 4-244 Diesel (1998-1999)

CASE SKID STEERS:
• 90XT / 95XT 390 Diesel (1998-2001)

CASE TRENCHERS:
• 25+4 (1988-1994)
• 360 (1993-1998) / 560 Kubota V2203 DSL (1994-2001)
• 660 390 Diesel (1992-2001) / 760 390 Diesel (1993-1997)
• 860 390 Diesel (1993-2001) / 6030 390 Diesel (1997-2000)

NOTE: Verify OEM part number from your original unit before ordering to ensure proper fitment.
