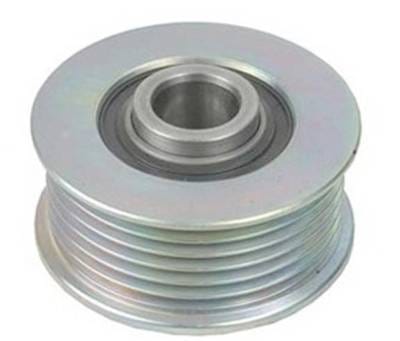

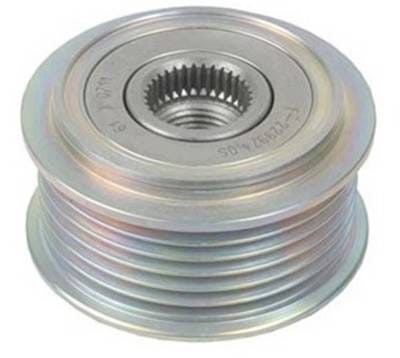

Alternator Clutch Pulley Compatible With 1999-2002 Oldsmobile Intrigue 3.5L 2004 Pontiac Grand Prix

OEM PART NUMBERS:
• Delco: 10484670, 10511059
• INA (Schaeffler): 535 0033 10
• INA: F-230753, F-230753.01, F-230753.03, F-230753.06
• INA: F-230753.1, F-230753.3, F-230753.6
• INA: F-554765.02, F-554765.03, F-554765.2, F-554765.3
• GM: 15845337, 15845338

SPECIFICATIONS:
• Belt Width: 21mm
• Grooves: 6 Serpentine
• Overall OD: 61mm / 2.402in
• Groove OD: 56.7mm / 2.232in
• Bore ID: 17mm / 0.669in
• Thread: M17x1.25 (.669-20)
• Center of Groove to Rear: 5.8mm / 0.228in
• Pulley Type: Overrunning Clutch / Decoupler (OAD)
• Includes: Dust Cover
• Weight: 2 lbs
• Condition: New

FITS ALTERNATORS (BY VEHICLE):
• Oldsmobile Intrigue 3.5L V6 (1999-2002) — 10311493, 10464395, 10480341
• Pontiac Grand Prix 3.8L V6 (2004) — 10343535, 10346705, 10464493
• Chevrolet SSR / Trailblazer 6.0L V8 (2005-2009) — 15288860, 15288861
• Saab 9-7X 6.0L V8 (2008-2009) — 15288860
• Chevrolet Silverado / GMC Sierra 2500/3500 6.6L Duramax (2006-2007) — 15845337, 15845338
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
OLDSMOBILE (Delco AD237 125A Alternators 10311493 / 10464395 / 10480341):
• Intrigue 3.5L (214) V6 (1999-2002)

PONTIAC (Delco AD237 125A Alternators 10343535 / 10346705 / 10464493):
• Grand Prix 3.8L (231) V6 (2004)

CHEVROLET (Delco AD244 145A Alternator 15288861):
• SSR 6.0L (364) V8 (2005-2006)
• Trailblazer 6.0L (364) V8 (2006)

CHEVROLET (Delco AD244 145A Alternator 15288860):
• Trailblazer 6.0L (364) V8 (2007-2009)

SAAB (Delco AD244 145A Alternator 15288860):
• 9-7X 6.0L (364) V8 (2008-2009)

CHEVROLET / GMC (Delco DR44G 145A Alternators 15845337 / 15845338 / 8400075):
• Silverado 2500 HD 6.6L (403) V8 Duramax Diesel (2006-2007)
• Silverado 3500 6.6L (403) V8 Duramax Diesel (2006-2007)
• Sierra 2500 HD 6.6L (403) V8 Duramax Diesel (2006-2007)
• Sierra 3500 6.6L (403) V8 Duramax Diesel (2006-2007)

ALSO FITS DELCO ALTERNATOR SERIES:
• AD237 Series IR/IF 125A
• AD244 Series IR/IF 145A
• DR44G Series IR/IF 145A

NOTE: Verify alternator model and OEM pulley part number before ordering.
