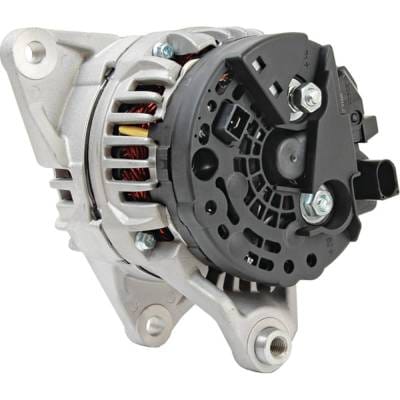

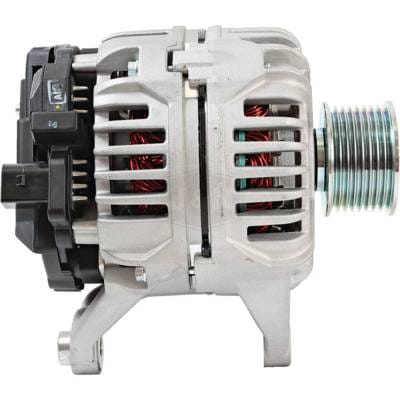

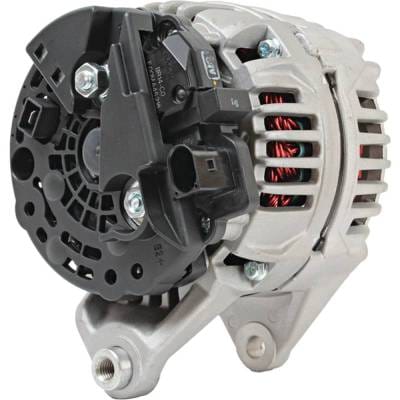

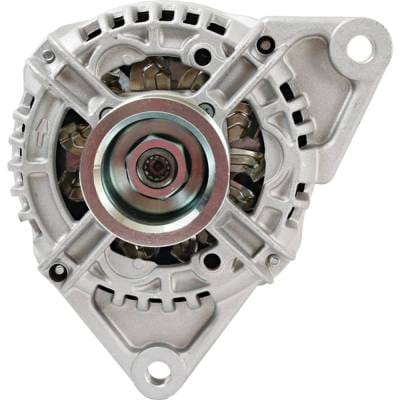

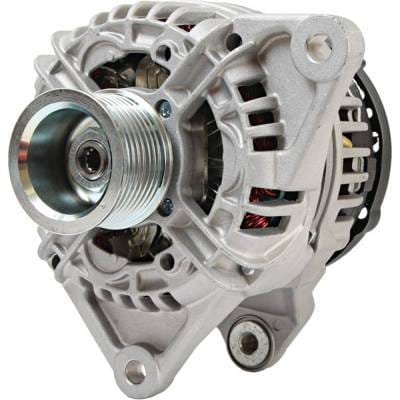

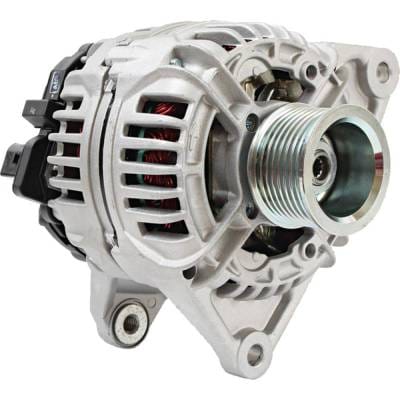

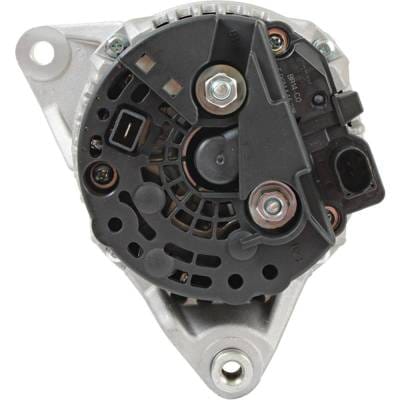

90 Amp Alternator Compatible With Claas Nectis 217 227 237 247 257 267 Tractors Iveco Nef Bosch

OEM PART NUMBERS:
• Bosch: 0124325052, 0124325147
• New Holland: 504010576
• Chrysler: C8520046A
• Himoinsa: 3063487
• Renault: 7700377092

SPECIFICATIONS:
• Voltage: 12V / 14V Regulated
• Amperage: 90A
• Rotation: CW (Clockwise)
• Regulator: Internal (IR/IF)
• Fan: Internal
• Pulley: Solid, 8-Groove Serpentine, 55mm / 2.362" OD
• Mounting: 3 Holes (2x 11mm Unthreaded, 1x M10x1.50 Threaded)
• Polarity: Negative Ground
• Condition: New

APPLICATION:
• Case TX742/TX842/TX945/TX1055 Telehandlers (2006-2015)
• New Holland LM/M Series Telehandlers (2002-2015)
• Komatsu WH609/WH613/WH713/WH714/WH714H/WH716 (2004-2013)
• Kobelco T13/T14/T17 (2003-2005)
• Claas Nectis 217-267 Tractors (2005-On)
• Renault Mascott 130/140/150 Trucks (1999-2004)
• Iveco Vertis 90V16/130V18 (2010-2012)
• Himoinsa HFW Generator Sets
• Iveco/FPT NEF Industrial Engines

12V 90A Alternator - Iveco NEF Engine Applications
Alternator for Claas Nectis tractors, Renault Mascott trucks, and Himoinsa generator sets with Iveco diesel engines. Replaces Bosch 0124325052, Hella 8EL738020001, and Himoinsa 3063487.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
CASE CONSTRUCTION TELEHANDLERS:
• Case TX742 Iveco NEF Diesel (2007-2014)
• Case TX842 Iveco NEF Diesel (2006-2015)
• Case TX945 Iveco NEF Diesel (2006-2015)
• Case TX1055 Iveco NEF Diesel (2008-2014)

NEW HOLLAND TELEHANDLERS:
• LM415A Iveco NEF Diesel (2003-2007)
• LM435A Iveco NEF Diesel (2003-2007)
• LM445A Iveco NEF Diesel (2003-2007)
• LM1445 Iveco NEF Diesel (2005-2011)
• LM1740 Iveco NEF Diesel (2002-2009)
• LM5040 Iveco NEF Diesel (2007-2013)
• LM5060 Iveco NEF Diesel (2007-2013)
• LM5070 Iveco NEF Diesel (2007-2013)
• LM5080 Iveco NEF Diesel (2007-2013)
• M357 (2007-2015)
• M427 (2007-2015)
• M428 (2008-2012)
• M459 (2008-2012)
• M551 (2007-2015)

KOMATSU TELEHANDLERS:
• WH609-1 Iveco NEF Diesel (2004-2013)
• WH613-1 Iveco NEF Diesel (2004-2013)
• WH713-1 Iveco NEF Diesel (2004-2013)
• WH714-1 Iveco NEF Diesel (2004-2013)
• WH714H-1 Iveco NEF Diesel (2004-2013)
• WH716-1 Iveco NEF Diesel (2004-2013)

KOBELCO TELEHANDLERS:
• T13 (2003-2005)
• T14 (2003-2005)
• T17 (2003-2005)

CLAAS TRACTORS:
• Nectis 217 Iveco F4CE0354C 3-Cyl Diesel (2005-On)
• Nectis 227 Iveco F4CE0354C 3-Cyl Diesel (2005-On)
• Nectis 237 Iveco F4CE0354C 3-Cyl Diesel (2005-On)
• Nectis 247 Iveco NEF Diesel (2005-On)
• Nectis 257 Iveco NEF Diesel (2005-On)
• Nectis 267 Iveco NEF Diesel (2005-On)

RENAULT TRUCKS:
• Mascott 130.55 2.8 TD Iveco 8140.43S (1999-2004)
• Mascott 130.65 2.8 TD Iveco 8140.43S (1999-2004)
• Mascott 140.35 2.8 TD Iveco 8140.43K (2001-2004)
• Mascott 140.55 2.8 TD Iveco 8140.43K (2001-2004)
• Mascott 150.35 2.8 TD Iveco 8140.43N (2001-2004)

IVECO TRUCKS:
• Vertis 90V16 NEF Diesel (2010-2012)
• Vertis 130V18 NEF Diesel (2010-2012)

FIAT COMMERCIAL VEHICLES:
• Ducato 2.3L Diesel (2011)

OTHER EQUIPMENT:
• Redrock TH280S Telehandler
• Himoinsa HFW 60/75/100/130/160/180/200 Generator Sets

IVECO/FPT INDUSTRIAL ENGINES:
• NEF Series 3363cc 3-Cylinder Diesel
• NEF Series 4-Cylinder Diesel
• 8140.43S/K/N 2.8L Diesel

NOTE: Verify OEM part number from your original unit before ordering to ensure proper fitment.
