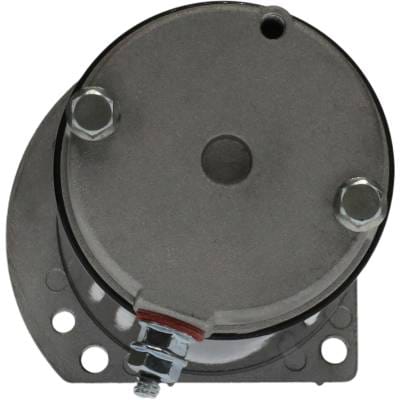

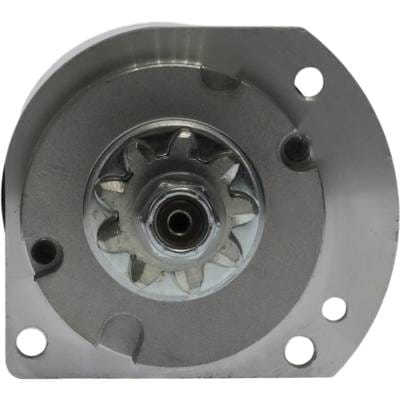

9 Tooth Starter Compatible With John Deere 400 Lawn Tractor Am37725 Am34753 Kohler K-482 K-532 K-582

OEM PART NUMBERS:
• Kohler: 48-098-02, 48-098-04, 48-098-04-S
• Kohler: 45-098-04, 45-098-05
• Kohler: 41-098-05, 48-098-01, 48-098-05
• Kohler: A277214, A277599
• John Deere: AM34753
• John Deere: AM37725
• Bobcat: 6512287

SPECIFICATIONS:
• Type: PMDD Starter Motor
• Voltage: 12V
• Rotation: CCW
• Drive Teeth: 9
• Pinion OD: 36.5mm (1.437 Inches)
• Case Length: 129.2mm (5.07 Inches)
• Mounting Holes: 3x Threaded 5/16-18, 1x Unthreaded 6.6mm
• Weight: 7.39 lbs (3.36 kg)
• Condition: New ReplacementPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
COMPLETE APPLICATION LISTING:

Kohler K-Series Twin Cylinder Air-Cooled Engines:
• K-482 - 18HP - 48 cu.in. (782cc) - Bore: 3.25" Stroke: 2.87"
• K-532 - 20HP - 53 cu.in. (868cc) - Bore: 3.37" Stroke: 3.0"
• K-582 - 23HP - 58 cu.in. (950cc) - Bore: 3.5" Stroke: 3.0"
• All Models: Opposed Twin, 4-Cycle, Horizontal Shaft, Cast Iron Sleeves

Kohler Command PRO CS Series:
• CS4 - 4HP Single Cylinder OHV Horizontal Shaft
• CS6 - 6HP Single Cylinder OHV Horizontal Shaft
• Specifications: 9615xx and 9715xx Series Only

John Deere Applications:
• John Deere 400 Lawn & Garden Tractor
• Engine: Kohler Twin Rated at 19.9HP
• Production Years: 1975 through 1982
• Hydrostatic Transmission
• OEM Starter Part: AM34753, AM37725

Bobcat Skid Steer Loader Applications:
• Bobcat 520 - Kohler K-582S Gasoline - 1976, 1977
• Bobcat 530 - Kohler K-582S Gasoline - 1977, 1978, 1979, 1980, 1981
• Bobcat 540 - Kohler K-582S Gasoline - 1981, 1982, 1983, 1984, 1985, 1986
• OEM Starter Part: 6512287

General Industrial Applications:
• Generators and Gen-Sets with Kohler K-Series Engines
• Construction Equipment with K-482, K-532, K-582 Engines
• Agricultural Equipment with Kohler Twin Cylinder Power
• Stump Grinders, Compactors, Pumps
