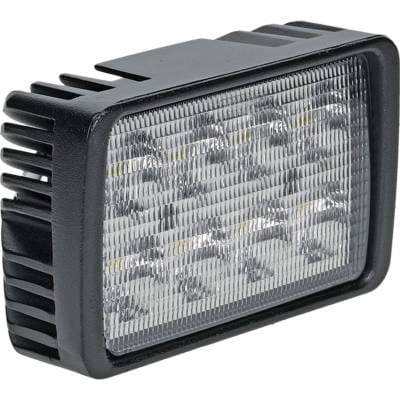

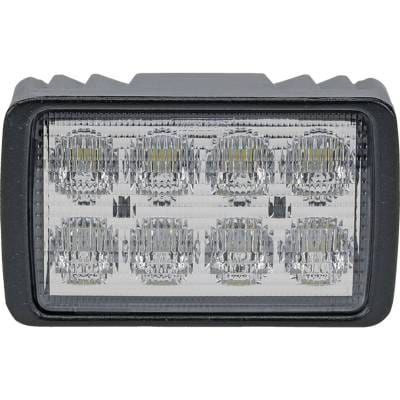

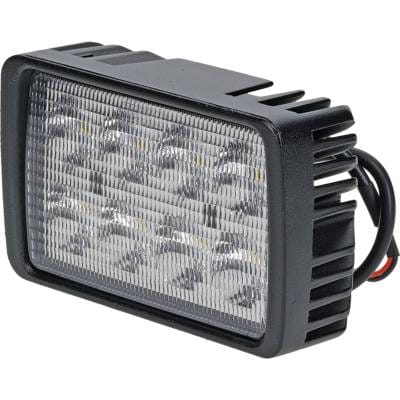

40W Led Fender Light With Hollow Bolt Compatible With Case Ih 9210 9230 9240 9260 9270 9280 3600

OEM PART NUMBERS:

• Case IH: 20-1730T91

SPECIFICATIONS:

• Product Type: LED Fender Light with Hollow Bolt
• Light Pattern: Flood Beam
• Mount Type: Hollow Bolt Fender Mount
• Lumens: 3,600
• Wattage: 40W
• Amperage: 3.33A
• Voltage: 12-24V DC
• Length: 6 in
• Width: 3-1/2 in
• Depth: 3 in
• Weight: 2.8 lbs
• Housing: Die-Cast Aluminum with Heat Sink
• Lens: Polycarbonate
• IP68 Waterproof and Dustproof
• EMI/RFI Filtered
• Uses Original Wiring
• Includes: Deutsch Connector, Stainless Steel Hardware, Mounting Bracket
• Installation Note: Requires installing connector after running wires through hollow bolt
• Supersedes Case IH 20-1730T91
• Condition: New

APPLICATION:
• Case IH Steiger 9100/9200/9300 Series Tractors
• Case IH CX, Magnum, MX Series Tractors
• Ford New Holland T8, T8000, TG Series Tractors
FITS:
CASE IH STEIGER 9100 SERIES TRACTORS:
• 9110/9130/9150/9170/9180

CASE IH STEIGER 9200 SERIES TRACTORS:
• 9210/9230/9240/9260/9270/9280

CASE IH STEIGER 9300 SERIES TRACTORS:
• 9310/9330/9350/9370/9380/9390

CASE IH CX SERIES TRACTORS:
• CX50/CX60/CX70/CX80/CX90/CX100

CASE IH MAGNUM TRACTORS:
• Magnum 215/235/245/255/260/275/305/335

CASE IH MX SERIES (MAXXUM) TRACTORS:
• MX80C/MX90C/MX100/MX100C/MX110/MX120/MX135/MX150/MX170
• MX180/MX200/MX210/MX215/MX220/MX230/MX240/MX245
• MX255/MX270/MX275/MX285/MX305

FORD NEW HOLLAND T8000 SERIES TRACTORS:
• T8010/T8020/T8030/T8040/T8050

FORD NEW HOLLAND T8 SERIES TRACTORS:
• T8.275/T8.300/T8.320/T8.330/T8.350/T8.360/T8.380/T8.390/T8.410/T8.420/T8.435

FORD NEW HOLLAND TG SERIES TRACTORS:
• TG210/TG215/TG230/TG245/TG255/TG275/TG285/TG305

OEM PART NUMBERS:
• Case IH: 20-1730T91

SPECIFICATIONS:
• Product Type: LED Fender Light with Hollow Bolt
• Light Pattern: Flood Beam
• Mount Type: Hollow Bolt Fender Mount
• Lumens: 3,600
• Wattage: 40W
• Amperage: 3.33A
• Voltage: 12-24V DC
• Length: 6 in
• Width: 3-1/2 in
• Depth: 3 in
• Weight: 2.8 lbs
• Housing: Die-Cast Aluminum with Heat Sink
• Lens: Polycarbonate
• IP68 Waterproof and Dustproof
• EMI/RFI Filtered
• Uses Original Wiring
• Includes: Deutsch Connector, Stainless Steel Hardware, Mounting Bracket
• Installation Note: Requires installing connector after running wires through hollow bolt
• Supersedes Case IH 20-1730T91
• Condition: New

APPLICATION:
• Case IH Steiger 9100/9200/9300 Series Tractors
• Case IH CX, Magnum, MX Series Tractors
• Ford New Holland T8, T8000, TG Series Tractors
⚠️ Verify OEM part number from your original unit before ordering to ensure proper fitment.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
CASE IH STEIGER 9100 SERIES TRACTORS:
• 9110/9130/9150/9170/9180

CASE IH STEIGER 9200 SERIES TRACTORS:
• 9210/9230/9240/9260/9270/9280

CASE IH STEIGER 9300 SERIES TRACTORS:
• 9310/9330/9350/9370/9380/9390

CASE IH CX SERIES TRACTORS:
• CX50/CX60/CX70/CX80/CX90/CX100

CASE IH MAGNUM TRACTORS:
• Magnum 215/235/245/255/260/275/305/335

CASE IH MX SERIES (MAXXUM) TRACTORS:
• MX80C/MX90C/MX100/MX100C/MX110/MX120/MX135/MX150/MX170
• MX180/MX200/MX210/MX215/MX220/MX230/MX240/MX245
• MX255/MX270/MX275/MX285/MX305

FORD NEW HOLLAND T8000 SERIES TRACTORS:
• T8010/T8020/T8030/T8040/T8050

FORD NEW HOLLAND T8 SERIES TRACTORS:
• T8.275/T8.300/T8.320/T8.330/T8.350/T8.360/T8.380/T8.390/T8.410/T8.420/T8.435

FORD NEW HOLLAND TG SERIES TRACTORS:
• TG210/TG215/TG230/TG245/TG255/TG275/TG285/TG305

NOTE: Hollow bolt design allows wire to be routed cleanly under the fender. Requires installing the Deutsch connector after running wires through bolt. Verify OEM part number before ordering.
