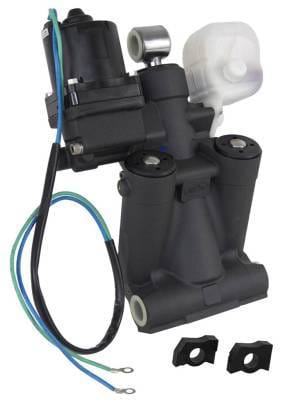

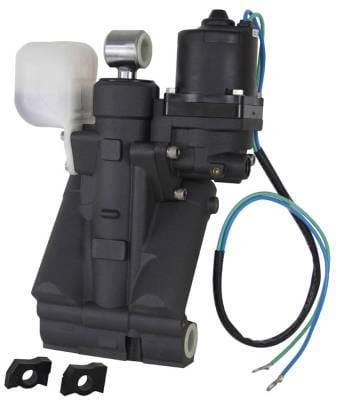

3 Ram Tilt Trim Assembly Compatible With Johnson J40 J60 J70 J90 J115 Outboard 1998-2001 Hydraulic

OEM PART NUMBERS:
• OMC/BRP: 0438528 / 438528
• OMC/BRP: 0434395 / 434395 (superseded by 0438528)
• OMC/BRP: 5005428 (supersedes 0438528)
• OMC/BRP: 0434396 / 434396
• OMC/BRP: 0438534 / 438534
• OMC/BRP: 0434397 / 434397
• OMC/BRP: 5006421
• OMC/BRP: 0433460 / 0435260

SPECIFICATIONS:
• Type: Complete Tilt Trim Hydraulic Pump Assembly
• System: 3 Ram (SHOWA/Fastrac)
• Voltage: 12V
• Rotation: Reversible
• Motor OD: 76mm (2.992 in)
• Motor Length: 103mm (4.055 in)
• Shaft OD: 8mm (0.315 in)
• Shaft: 2.6mm Drive Tang
• Current Type: DC
• Includes: Left/Right Receiving Pads, Installation Instructions
• Condition: New

JOHNSON/EVINRUDE APPLICATIONS:
• Johnson/Evinrude 40-70HP 2-Stroke (1999-2001)
• Johnson/Evinrude 75HP 2-Stroke (2000-2005)
• Johnson/Evinrude 90HP 2-Stroke (1998-2006)
• Johnson/Evinrude 100-105HP 2-Stroke (1998-2005)
• Johnson/Evinrude 115HP 2-Stroke (1998-2009)
• Johnson/Evinrude 130HP 2-Stroke (2009)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
JOHNSON OUTBOARD — 3 RAM TILT SYSTEM:
• 40HP 2-Stroke Outboard (1999-2001)
• 60HP 2-Stroke Outboard (1999-2001)
• 70HP 2-Stroke Outboard (1999-2001)
• 75HP 2-Stroke Outboard (2000-2005)
• 90HP 2-Stroke Outboard (1998-2006)
• 100HP 2-Stroke Outboard (1998-2001)
• 105HP 2-Stroke Outboard (1998-2001)
• 115HP 2-Stroke Outboard (1998-2009)
• 130HP 2-Stroke Outboard (2009)

EVINRUDE OUTBOARD — 3 RAM TILT SYSTEM:
• 75HP 2-Stroke Outboard (2000-2005)
• 90HP 2-Stroke Outboard (1998-2006)
• 100HP 2-Stroke Outboard (1998-2005)
• 105HP 2-Stroke Outboard (1998-2001)
• 115HP 2-Stroke Outboard (1998-2009)
• 130HP 2-Stroke Outboard (2009)

NOTES:
• Complete 3-ram hydraulic pump assembly with receiving pads
• SHOWA/Fastrac style tilt trim system
• Includes detailed installation instructions
• Fits Johnson, Evinrude, and OMC branded outboard motors
