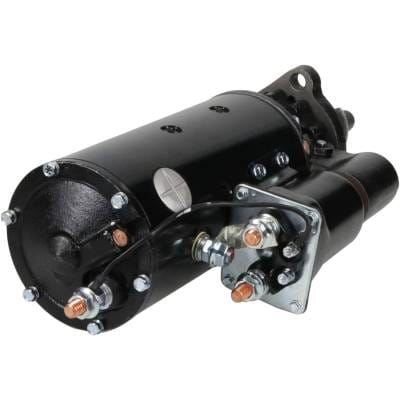

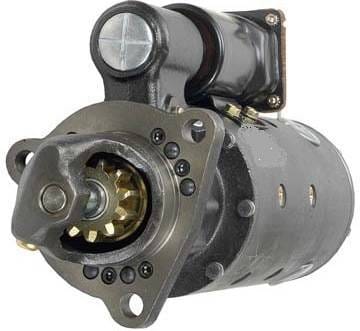

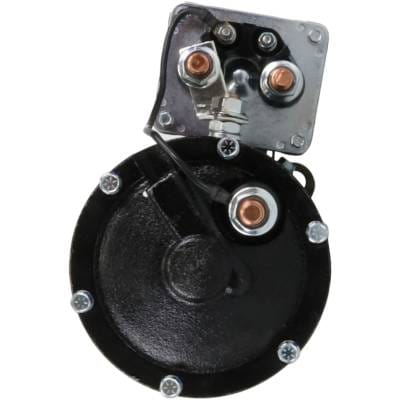

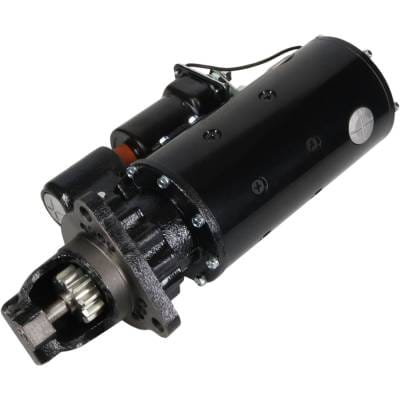

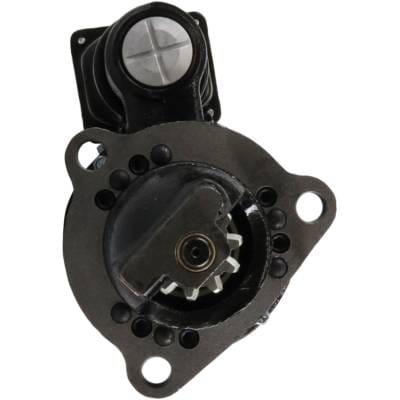

24V Starter Motor Compatible With Grove Crane Tm-1400 Cat 3408Ta Cummins Kt-450 Dd 8V-92Ta Cw Delco

OEM PART NUMBERS:
• Delco: 1109289, 1109290, 1109291, 1109292, 1109293, 1109296, 1109298, 1109385, 1109494, 1109553, 1109631, 1109636
• Delco: 1109638, 1109642, 1109643, 1109647, 1109649, 1109755, 1109759, 1109768, 1109771, 1109772, 1109773, 1109774
• Delco: 1109775, 1109776, 1109777, 1109778, 1109780, 1109782, 1109787, 1109791, 1109798, 1109831, 1109838, 1109839

SPECIFICATIONS:
• Voltage: 24V • Type: DD (Direct Drive) • Series: 50MT • Rotation: CW (Clockwise) • Tooth Count: 11 • Pinion OD: 55.9mm / 2.201" • Power: 9kW • Mounting: SAE 3
APPLICATION:
• Ford 9000 Series Cummins/Cat/DD (1978-1988)
• Freightliner FL/FLC/FLD/FLT/WF (1970-1993)
• Grove TM-1400 Crane (1983-1987)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
FORD HEAVY DUTY TRUCKS:
• 9000 Series Cummins KT-450/KT-525/KT-600 18.8L (1983-1988)
• 9000 Series DD 6V-92 9.0L / DD 8V-92 12.1L (1983-1988)
• All Models Cummins NTC-290/350/400 (1978-1982)
• All Models Cat 3406 14.6L (1979-1982)
• All Models DD 8V-71 9.3L / DD 8V-92 12.1L (1978-1982)

FREIGHTLINER TRUCKS:
• Classic DD Series 60 (1990-1992)
• FL/FLC 112/120 DD 8V-92 / DD Series 60 (1986-1993)
• FLC Series Cat 3306/3408 / Cummins K / DD 8V-92 (1979-1987)
• FLD 112/120 DD 8V-92 / DD Series 60 (1986-1992)
• FLT Series Cat 3408 / Cummins K / DD 8V-92 (1983-1987)
• WF (C,P,T) Series DD 12V-71 (1970-1978)

GROVE CRANES:
• TM-1400 Cat 3408TA / Cummins KT-450 / DD 8V-92TA (1983-1987)

HOUGH DOZERS:
• D-500 Cummins VT12-635 / DD 16V-71 (1965-1966)

INGERSOLL RAND:
• DL-1200 Air Compressor DD 12V-71 (1963-1964)

NOTE: Verify OEM part number before ordering.
