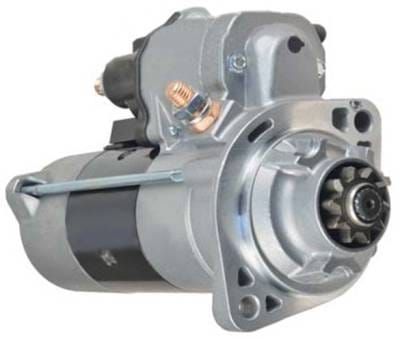

24V Starter Motor Compatible With Cummins 6Cta 8.3L Isb 5.9L 6.7L Diesel Clockwise Denso 428000-7120

OEM PART NUMBERS:
• Cummins: 4996709 / 499670900
• Denso: 428000-7120 / 4280007120
• Denso: 428000-7121 / 4280007121
• Denso: 428000-7122 / 4280007122
• Denso: 438000-3730 / 4380003730

SPECIFICATIONS:
• Type: PLGR (Planetary Gear Reduction)
• Denso Series: PA90L
• Voltage: 24V
• Power: 7.8kW / 10.45HP
• Rotation: CW (Clockwise)
• Teeth: 10
• Gear OD: 40mm / 1.575in
• Overall Length: 245mm / 9.646in
• Registry OD: 88.7mm / 3.492in
• Mounting: 2 Ears, 11.2mm Unthreaded
• Ear Center to Center: 126.6mm / 4.984in
• Wet Clutch Seal: Yes
• Studs: M12 B+ and Ground, M10 Motor, M5 Threaded S Tab
• Weight: 18.56 lbs / 8.44 kg
• Condition: New

APPLICATION:
• Cummins 6CTA 8.3L Diesel
• Cummins B/ISB/QSB Series Diesel 2.8L-8.3L
• Ingersoll Rand XP285-W
• Doosan w/ Cummins 6CTA
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
CUMMINS 6CTA ENGINES:
• Cummins 6CTA 8.3L Diesel

CUMMINS B-SERIES ENGINES:
• B3.9 3.9L Diesel
• B4.5 4.5L Diesel
• B5.9 5.9L Diesel
• B6.7S 6.7L Diesel
• G3.9 3.9L Gas

CUMMINS ISB/ISBE ENGINES:
• ISB5.9 5.9L Diesel
• ISB6.7 6.7L Diesel
• ISBE Diesel

CUMMINS ISD/ISF ENGINES:
• ISD4.5 4.5L Diesel
• ISD6.7 6.7L Diesel
• ISF2.8 2.8L Diesel
• ISF3.8 3.8L Diesel

CUMMINS QSB ENGINES:
• QSB3.9 3.9L Diesel
• QSB5.9 5.9L Diesel
• QSB6.7 6.7L Diesel
• QSB7-DM Diesel

EQUIPMENT APPLICATIONS:
• Ingersoll Rand XP285-W Air Compressor
• Doosan Equipment w/ Cummins 6CTA

NOTE: This starter fits various applications by part number. Verify OEM part number from your original unit before ordering.
