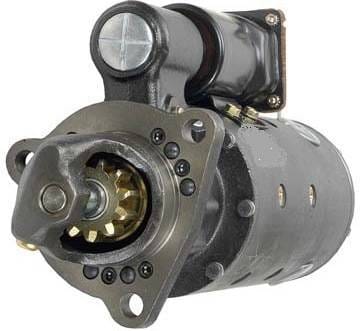

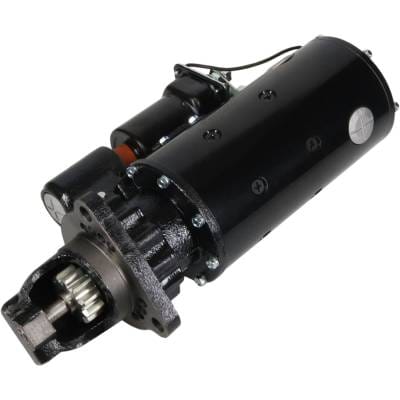

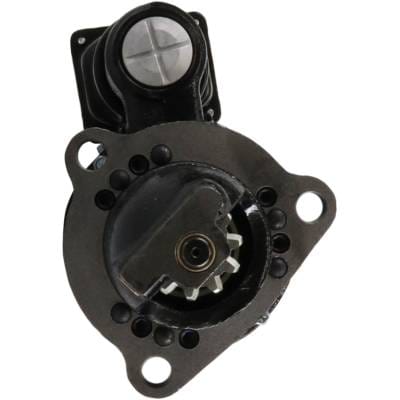

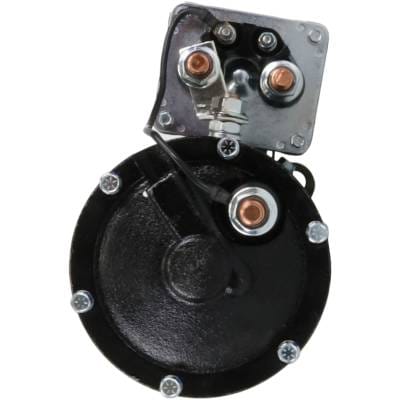

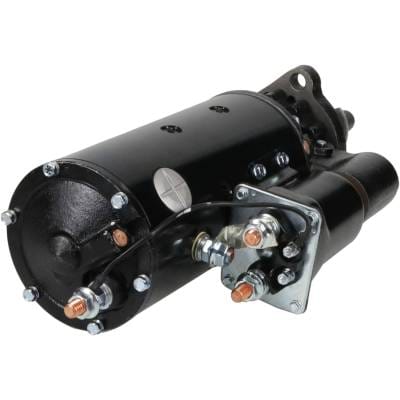

24V Starter Motor Compatible With Clark Scraper 310 330 410 Dd 12V-71T Diesel Clockwise Cummins

OEM PART NUMBERS:
• Cummins: 173184, 3000576, 3004699, 3004700, 300576
• Cummins: 3010125, 3021038, 3063771, 3603868RX, 3603888RX
• Delco: 10461057, 10471057, 10478863, 10478865, 10478866, 10478878, 10478883
• Delco: 10478887, 10478888, 10478907, 10478908, 10478909, 10478911, 10478912
• Delco: 10479126, 10479339, 1109222, 1109285, 1109286, 1109287, 1109288

SPECIFICATIONS:
• Voltage: 24 Volts • Type: 50MT DD (Direct Drive) • Rotation: Clockwise (CW) • Pinion: 11 Teeth, 6/8 Pitch • Pinion OD: 55.9mm / 2.201 Inches • Power: 9kW • SAE 3 Mounting • Rotatable DE Housing • Insulated
APPLICATION:
• Clark Dozers/Scrapers/Tractor Shovels (1965-1986)
• Dresser Loaders 550/560B (1984-1992)
• Euclid Tractors/Scrapers (1960-1967)
• Cummins K Engines (1983-1992)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
CLARK DOZERS:
• 380/380-2/380C Cummins KTA-1150/V-1710/DD 16V-71N (1967-1986)
• 480 Cummins VT12-635 / DD 16V-71N (1965-1968)

CLARK SCRAPERS:
• 310/310 III/310 III H DD 12V-71T Diesel (1965-1974)
• 330 III H DD 12V-71T Diesel (1973-1974)
• 410 Cummins VT12-635/VTA-1710C (1967-1974)

CLARK TRACTOR SHOVELS:
• 275K Cummins KTA-1150 (1981-1986)
• 475/475B/475C Cummins/DD 16V Diesel (1967-1986)
• 675/675B Cummins VTA-1710C (1970-1986)

CONSTRUCTION EQUIPMENT CO.:
• CFA-13/14/15/19 DD 12V-71/8V-71 (1967-1974)
• Tournapull BPA-5/7/8/11/BPH-5 DD 12V-71 (1967-1974)

CUMMINS ENGINES:
• K Series Various Engines (1983-1992)
• K38 (1991-1992)

DRESSER LOADERS:
• 550/560B Cummins KT-1150 (1984-1992)

DROTT CRAWLERS:
• 120C DD 12V-71 (1976-1978)

EUCLID TRACTORS/SCRAPERS:
• 36LDT/41LDT/44LDT/46LDT Cummins/DD Engines (1960-1967)
• SS-40A Cummins V17-525 (1964)

NOTE: Verify OEM part number before ordering.
