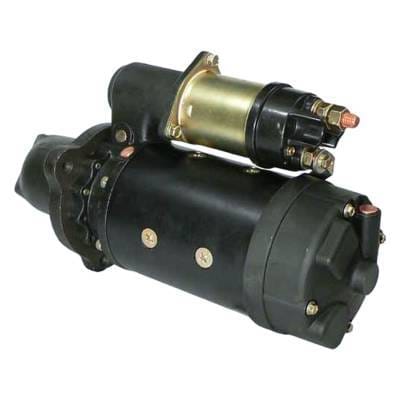

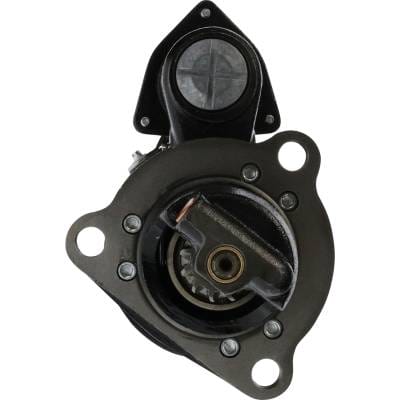

24V Starter Motor Compatible With 1992-1998 Champion Motor Grader 730 730A 736A Cummins 8.3L 6Ct8.3

OEM PART NUMBERS:
• Delco: 1113334, 1113353, 1113369
• Delco: 1113371, 1113407
• Delco: 1113481, 1113534, 1113541
• Delco: 1993742, 1993910, 1993953
• Delco: 10479175

SPECIFICATIONS:
• Unit Type: Delco
• Series: 37MT
• Starter Type: DD (Direct Drive)
• Voltage: 24V
• Rotation: CW (Clockwise)
• Tooth Count: 12
• Gear OD: 1.815 in / 46.1mm
• Solenoid Position: 308 Degrees
• Mounting Hole 1: 0.660" ID Unthreaded
• Mounting Hole 2: 0.660" ID Unthreaded
• Mounting Hole 3: 0.660" ID Unthreaded
• Wet Clutch Seal: Yes
• Specification: 1/2" Reducers Installed Into Mounting Holes
• Weight: 50.5 lbs / 22.95 kg
• Condition: New

APPLICATION:
• Champion Grader 730/730A/736A Cummins 8.3L (1992-1998)

This heavy-duty 24-volt Delco 37MT direct drive starter is a direct OEM replacement for Champion 730, 730A, and 736A motor graders equipped with the Cummins 6CT8.3 turbocharged diesel engine. Features wet clutch seal, 308-degree solenoid position, 12-tooth clockwise engagement with 46.1mm pinion OD, and 1/2" reducers pre-installed in the three 0.660" unthreaded mounting holes.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
CHAMPION MOTOR GRADERS:
• Champion Grader 730 Cummins 8.3L (6CT8.3) Diesel (1992-1998)
• Champion Grader 730A Cummins 8.3L (6CT8.3) Diesel (1992-1998)
• Champion Grader 736A Cummins 8.3L (6CT8.3) Diesel (1992-1998)

NOTE: This starter features a wet clutch seal and 1/2" reducers installed into mounting holes. Verify OEM part number before ordering.
