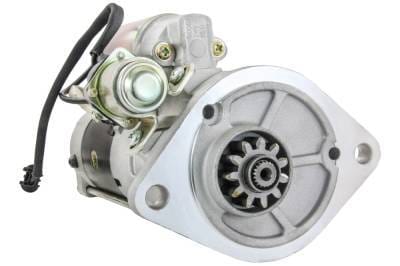

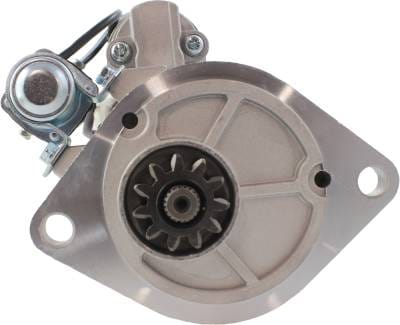

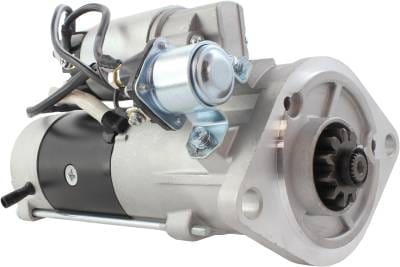

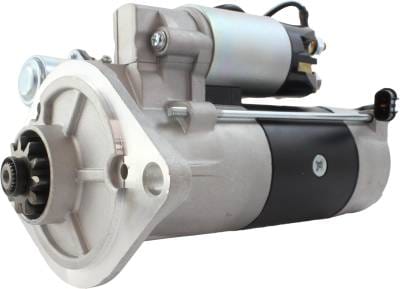

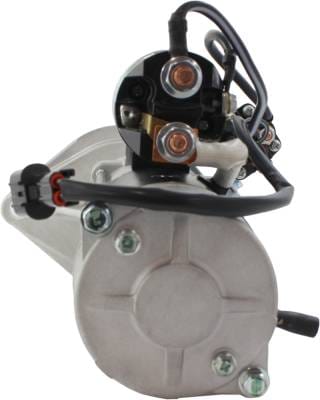

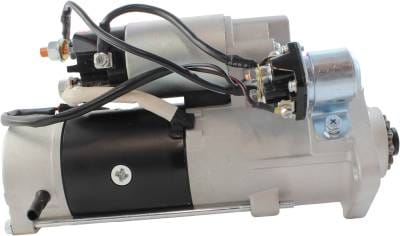

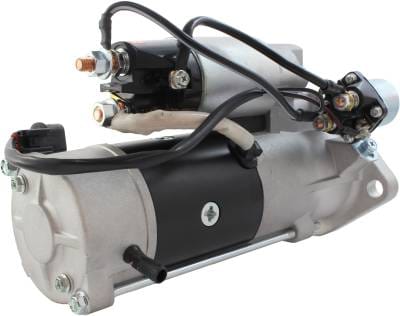

24V Starter Compatible With New Holland E160 E215 E235srlc Kobelco Sk200 Sk210lc Excavator

OEM PART NUMBERS:
• Mitsubishi: M8T87171 / M8T87171ZC
• Mitsubishi: M008T87171 / M008T87171ZC
• Mitsubishi Industrial: ME049303 / ME080740
• New Holland: VAME049303 / VAME049303A

SPECIFICATIONS:
• Voltage: 24V
• Starter Type: PLGR (Planetary Gear Reduction)
• Power: 5.0 kW / 6.7 HP
• Rotation: CW (Clockwise)
• Tooth Count: 11
• Gear OD: 40.4mm / 1.591in
• Mounting Hole 1: 12.8mm ID Unthreaded
• Mounting Hole 2: 12.8mm ID Unthreaded
• Weight: 16.415 lbs / 7.46 kg
• Condition: New

APPLICATION:
• New Holland Excavators: E160, EH160, E215, EH215, E235SR, E235SRLC
• Kobelco Excavators: SK200, SK210LC, SK235SR, SK250LC, ED190LC, SK160LC
• Kato Excavators: HD820, HD1023
• Engines: Mitsubishi 4D34 3.9L, 6D34 5.9L Diesel
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
NEW HOLLAND EXCAVATORS:
• E160 Mitsubishi 4D34-TEG 3.9L Diesel 111HP (2006-2009)
• EH160 Mitsubishi 4D34-TEG 3.9L Diesel (2003-2005)
• E215 Mitsubishi 6D34 5.9L Diesel
• EH215 Mitsubishi 6D34 5.9L Diesel
• E235SR Mitsubishi 6D34 5.9L Diesel
• E235SRLC Mitsubishi 6D34 5.9L Diesel

KOBELCO EXCAVATORS:
• ED190LC / ED190LC-6E (Mitsubishi 6D34)
• SK160LC / SK160LC-6E (Mitsubishi 4D34-TEG)
• SK200 / SK200-5 / SK200-6 / SK200-6ES (Mitsubishi 6D34-TLE2A)
• SK200LC / SK200LC-6 / SK200LC-6ES (Mitsubishi 6D34-TLE2A)
• SK210LC / SK210LC-6E 5.9L (Mitsubishi 6D34) (1999-2006)
• SK235SR / SK235SR-1E / SK235SR-1ES (Mitsubishi 6D34)
• SK235SRLC / SK235SRLC-1E / SK235SRLC-1ES (Mitsubishi 6D34)
• SK235SRNLC-1E / SK235SRNLC-1ES
• SK250LC / SK250LC-6E 5.9L (Mitsubishi 6D34-TLEG) (1999-2006)

KATO EXCAVATORS:
• HD820-1 / HD820-2 / HD820-3 (Mitsubishi 6D34)
• HD1023-1 / HD1023-2 / HD1023-3 (Mitsubishi 6D34)

MITSUBISHI ENGINES:
• 4D34 / 4D34-TEG 3.9L (238 CID) Diesel
• 6D31 Diesel
• 6D34 / 6D34-TLE2A / 6D34-TLEG 5.9L (358 CID) Diesel

NOTE: Verify OEM part number from your original unit before ordering.
