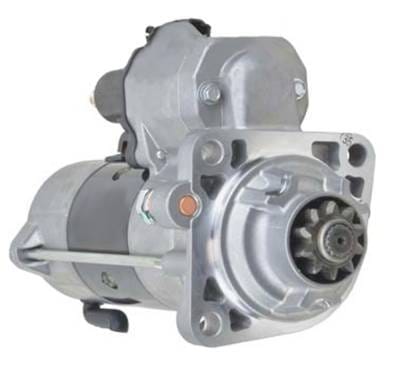

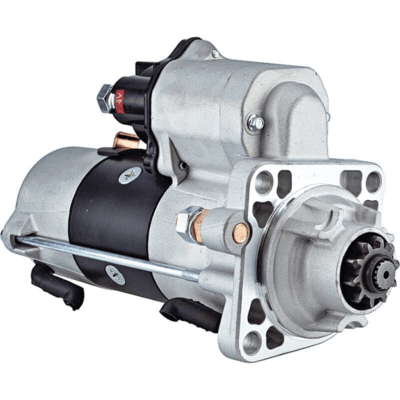

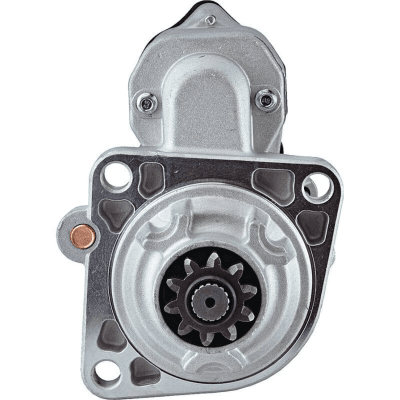

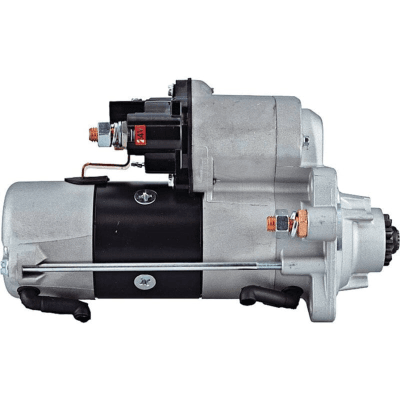

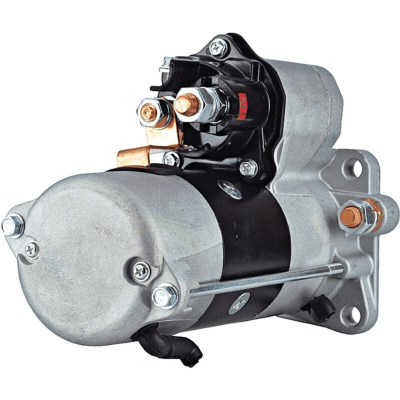

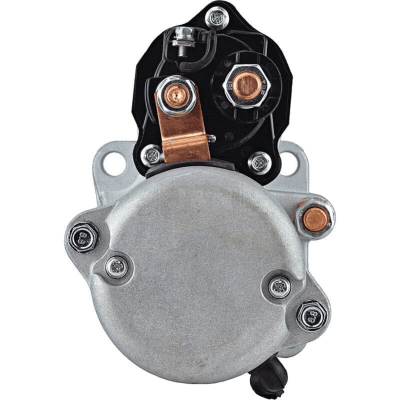

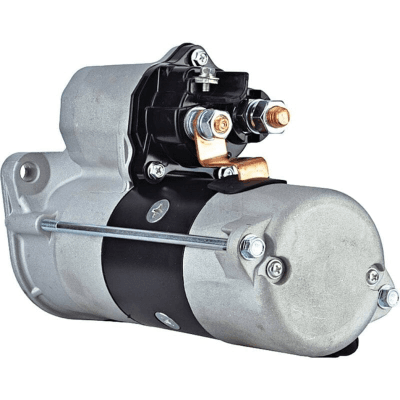

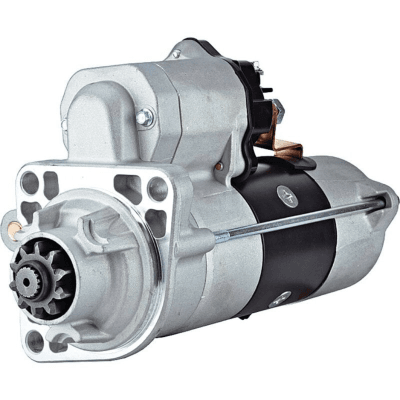

24V Starter Compatible With John Deere 350Glc 380Glc Excavator 6068 6.8L Diesel Cw Denso 428000-6901

OEM PART NUMBERS:
• Denso: 428000-6900 / 4280006900
• Denso: 428000-6901 / 4280006901
• Denso: 428000-9920 / 4280009920
• John Deere: RE537519 / RE539695 / RE548693
• John Deere: RE549230 / SE502559 / SE502823

SPECIFICATIONS:
• Voltage: 24V
• Type: PLGR (Planetary Gear Reduction)
• Series: Denso PA90S
• Rotation: CW (Clockwise)
• Power: 7.8kW
• Tooth Count: 10
• Gear OD: 40.4mm / 1.591"
• Length: 244.6mm / 9.63"
• Registry OD: 89mm / 3.504"
• Mounting Ears: 11.8mm Unthreaded
• Wet Clutch Seal: Yes
• Studs: M12 B+ & Ground, M10 Motor, M5 S Tab
• Brush Type: Carbon
• Weight: 18.33 lbs / 8.33 kg
• Condition: New

APPLICATION:
• John Deere 7230R-7290R 6.8L/9.0L Tractors (2011-2015)
• John Deere 8235R-8370RT 9.0L Tractors (2009-2015)
• John Deere 8120-8520 Prior Generation Tractors
• John Deere S650-S670HM Combines (2014-2015)
• John Deere 250D-300D Dump Trucks (2011-2015)
• John Deere 130G-870G Excavators
• John Deere 620G-872GP Motor Graders
• John Deere 450K-950K Crawler Dozers
• John Deere 444K-744K Wheel Loaders
• John Deere 640L-948L Skidders
• John Deere 803M-959M Feller Bunchers
• John Deere 803MH-1470G Harvesters
• John Deere 1110E-1910G Forwarders
• John Deere 3154G-3756G Swing Machines
• John Deere 310E Backhoe Loader
• Engines: 4045 4.5L / 6068 6.8L / 6090 9.0L Diesel

24V Denso PA90S PLGR Starter - John Deere 4045 6068 6090 Diesel Engines
Brand new Denso PA90S PLGR starter motor for John Deere agricultural, construction, and forestry equipment with 4045, 6068, and 6090 diesel engines. 24V clockwise rotation, 7.8kW output, 10 tooth pinion gear with 40.4mm gear OD. Features wet clutch seal, M12 B+ and ground studs, and 11.8mm unthreaded mounting ears. Replaces Denso 428000-6900, 428000-6901, 428000-9920, and John Deere RE537519, RE539695, RE548693, RE549230, SE502559, SE502823.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
AGRICULTURAL TRACTORS:
• 7230R 6.8L (2011-2013)
• 7250R 6.8L (2011-2014)
• 7260R 6.8L (2011-2014)
• 7270R 6.8L (2011-2014)
• 7280R 6.8L (2011-2014)
• 7290R 9.0L (2014-2015)
• 8235R/8245R/8260R/8270R/8285R 9.0L (2010-2015)
• 8295R/8310R/8310RT/8320R/8320RT 9.0L (2009-2015)
• 8335R/8335RT/8345R/8345RT 9.0L (2010-2015)
• 8360R/8360RT/8370R/8370RT 9.0L (2010-2015)
• 8120/8220/8320/8420/8520 Prior Generation
• 850JR Crawler

COMBINES:
• S650/S660/S670/S670HM Hillmaster (2014-2015)

ARTICULATED DUMP TRUCKS:
• 250D/250D II (2011-2015)
• 260E
• 300D/300D II (2011-2015)

BACKHOE LOADER:
• 310E

EXCAVATORS:
• 130G/210GLC/250GLC/350GLC/350P
• 380GLC/380P/670G/870G

MOTOR GRADERS:
• 620G/620GP/622G/622GP
• 670G/670GP/672G/672GP
• 770G/770GP/772G/772GP
• 870G/870GP/872G/872GP

CRAWLER DOZERS:
• 450K/550K 4.5L (2011-2014)
• 605K 4.5L (2011-2014)/650K 4.5L (2011-2015)
• 655K 6.8L (2013-2014)/700K 6.8L (2012-2014)
• 700L/700L PL/750K 6.8L (2012-2014)/750L
• 755K 6.8L (2012-2014)/850J/850J II/850JR
• 850K/850L/850L PL/950K

WHEEL LOADERS:
• 444K/524K/524K-II/524L/524P
• 544K/544K-II/544L/544P
• 624K/624K-II/624L
• 644K/644L/724K/724L/744K/744L

SKIDDERS:
• 640L/640L-II/648L/648L-II
• 748L/748L-II/848L/848L-II/948L/948L-II

FELLER BUNCHERS:
• 803M/853M/859M/903M/909M/953M/959M

HARVESTERS:
• 803MH/853MH/859MH/903MH/909MH
• 1170E/1270E/1270G/1470E/1470G

FORWARDERS:
• 1110E/1210E/1510E/1910E/1910G

SWING MACHINES:
• 3154G/3156G/3754G/3756G

ENGINE FITMENT:
• John Deere 4045 - 4.5L 4-Cylinder Diesel
• John Deere 6068 - 6.8L 6-Cylinder Diesel
• John Deere 6090 - 9.0L 6-Cylinder Diesel

NOTE: Verify OEM part number before ordering to ensure proper fitment.
