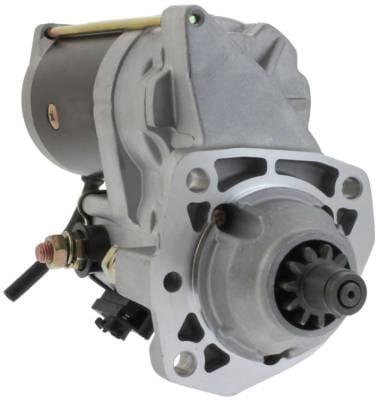

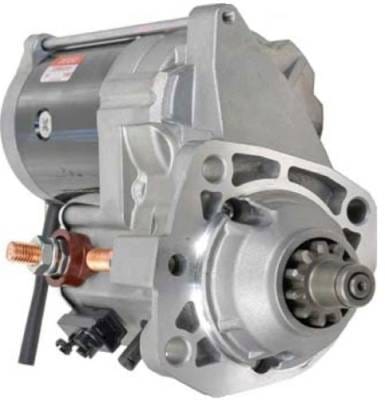

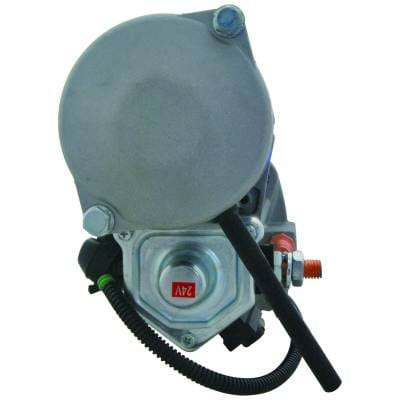

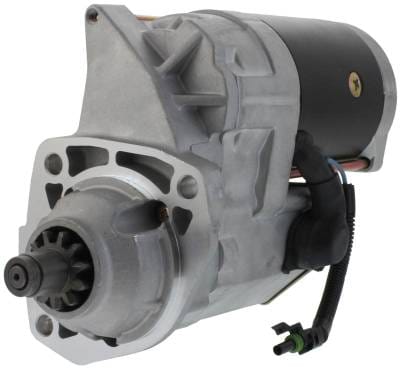

24V Starter Compatible With 770G 770Gp 772G 772Gp 870G 870Gp 872G 872Gp Motor Grader 9.0L Diesel

OEM PART NUMBERS:
• John Deere: RE504245
• John Deere: RE506103
• John Deere: RE537519
• John Deere: RE539695
• John Deere: RE548693
• John Deere: SE501866
• John Deere: SE502559
• John Deere: SE502823
• Denso: 228000-9150 (2280009150)
• Denso: 228000-9151 (2280009151)

SPECIFICATIONS:
• Voltage: 24V
• Power: 7.5KW
• Type: OSGR (Denso)
• Rotation: CW (Clockwise)
• Teeth: 11
• Gear OD: 39.4mm (1.551")
• Mounting: 3 Ears, 11.9mm Unthreaded
• Weight: 25 lbs

FITS MOTOR GRADERS:
• 670G/670GP, 672G/672GP (9.0L 155-170HP)
• 770D, 770G/770GP, 772D, 772G/772GP (9.0L 165-194HP)
• 870D, 870G/870GP, 872D, 872G/872GP (9.0L 180-214HP)PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
MOTOR GRADERS - 670 SERIES:

670G / 670GP:
• 670G Motor Grader JD 9.0L 155HP Diesel
• 670GP Motor Grader JD 9.0L 155HP Diesel

672G / 672GP:
• 672G Motor Grader JD 9.0L 170HP Diesel
• 672GP Motor Grader JD 9.0L 170HP Diesel

MOTOR GRADERS - 770 SERIES:

770D:
• 770D Motor Grader JD 9.0L Diesel

770G / 770GP:
• 770G Motor Grader JD 9.0L 165HP Diesel
• 770GP Motor Grader JD 9.0L 165HP Diesel

772D:
• 772D Motor Grader JD 9.0L Diesel

772G / 772GP:
• 772G Motor Grader JD 9.0L 194HP Diesel
• 772GP Motor Grader JD 9.0L 194HP Diesel

MOTOR GRADERS - 870 SERIES:

870D:
• 870D Motor Grader JD 9.0L Diesel

870G / 870GP:
• 870G Motor Grader JD 9.0L 180HP Diesel
• 870GP Motor Grader JD 9.0L 180HP Diesel

872D:
• 872D Motor Grader JD 9.0L Diesel

872G / 872GP:
• 872G Motor Grader JD 9.0L 214HP Diesel
• 872GP Motor Grader JD 9.0L 214HP Diesel

NOTE: 24V 11-Tooth Denso OSGR starter. JD 6090HT 9.0L diesel engine. Verify OEM part number from your original unit before ordering.
