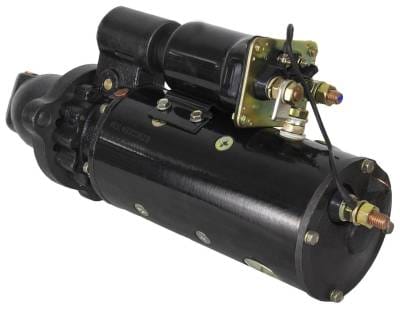

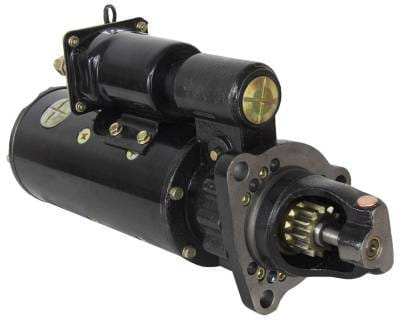

24V Starter Compatible With 1974-1985 Western Star Trucks Cat 3208 3306 Engine Grove Rt-865 Rt-980

OEM PART NUMBERS:
• Caterpillar: 8C3650, 8N2145, 9G4337, 9G4338, 9G4339, 9M1662
• Delco: 1114989, 1990324, 1990343, 1993704, 323-777

SPECIFICATIONS:
• Series: Delco 40MT
• Type: DD (Direct Drive)
• Voltage: 24V
• Rotation: Clockwise (CW)
• Tooth Count: 12
• Gear OD: 1.831 in / 46.5mm
• Mounting Ear 1: 0.660" Unthreaded
• Mounting Ear 2: 0.660" Unthreaded
• Mounting Ear 3: 0.660" Unthreaded
• Weight: 66.031 lbs / 30.01 kg
• Condition: New

APPLICATION:
• Grove Cranes RT-500/RT-625/RT-865/RT-980/TM-1150/TM-1400 (1983-1987)
• Peterbilt Trucks with Cat 1676 Engine (1965-1971)
• Western Star Trucks with Cat 3208/3306 Engines (1974-1985)

24V Starter - Western Star Trucks Cat 3208/3306
New 24 volt direct drive starter for Western Star trucks with Cat 3208 and 3306 engines and Grove RT-865/RT-980 cranes. Delco 40MT with CW rotation, 12-tooth pinion, 46.5mm OD. Three 0.660" mounting ears. 66.031 lbs. Replaces Delco 1993704/323-777, Cat 8C3650/9G4339.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
GROVE CRANES:
• RT-500 Cat. 3208 (1983-1987)
• RT-625 Cat. 3208 (1983-1987)
• RT-865 Cat. 3306T (1983-1987)
• RT-980 Cat. 3306TA (1983-1987)
• TM-1150 Cat. 3206/3208 (1983-1987)
• TM-1400 Cat. 3208 (1983-1987)
• TMS-250 Cat. 3208 (1983-1987)
• TMS-865 Cat. 3306TA (1983-1987)

PETERBILT TRUCKS:
• All Models Cat 1676 Engine (1965-1971)

WESTERN STAR TRUCKS:
• All Models Cat 3208 Engine (1974-1978)
• All Models Cat 3306 Engine (1974-1985)

NOTE: Verify OEM part number from your original unit before ordering.
