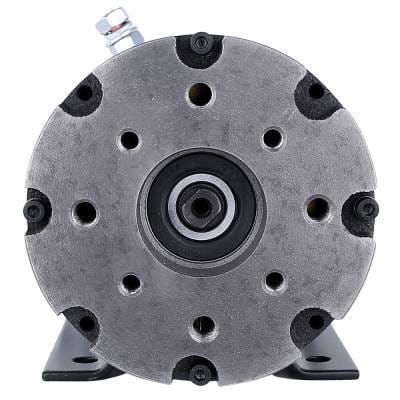

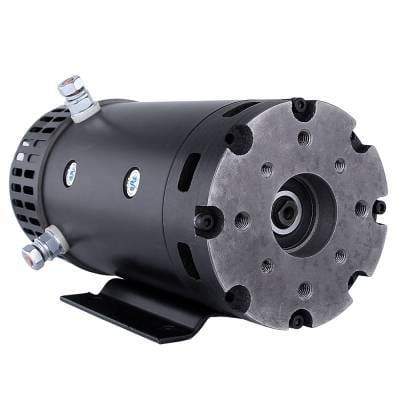

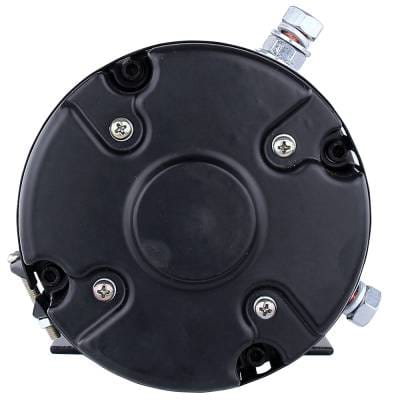

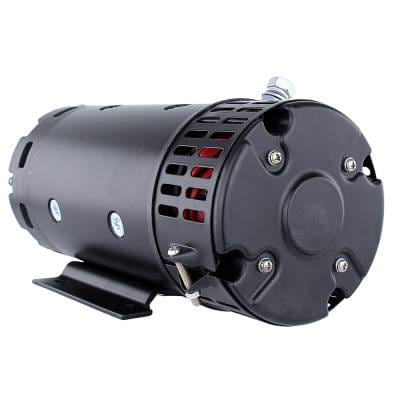

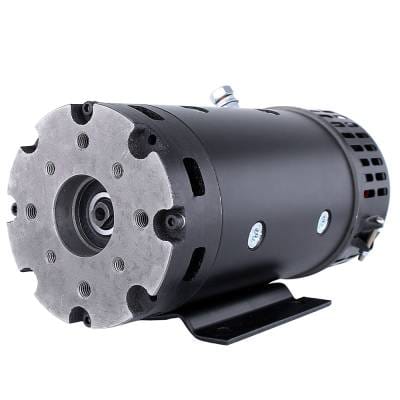

24V Hydraulic Pump Motor Compatible With Jlg Scissor Lift 1532E2 1932E2 2032E2 2632E2 2646E2 3246E2

OEM PART NUMBERS:
• Ohio Motors: D468210XWF02, D468237XWF07A, D468242XWF07, D468247XW07A, D468247XWF07A, D468250XWF07, D468250XWF07A, D468255XWF07A, D482252X7707A
• Prestolite: MBD5112, MBD5112S
• JS Barnes / Haldex: 2200353, 2200858, 2200980
• JLG: 3160263, 3160264, 7011041
• Western Motor: W-5112, W5112

SPECIFICATIONS:
• Voltage: 24V DC
• Power: 4 HP
• Rotation: CW (Clockwise)
• Field Housing OD: 127mm / 5.000in
• Overall Length: 285mm / 11.220in
• Shaft: Chrysler Amplex Coupler Type
• Terminal 1: 3/8-16
• Terminal 2: 3/8-16
• Bearings: Double Ball Bearing
• Housing: Cast Aluminum Comm. and Drive Ends with Black Field Case
• Weight: 34.5 lbs / 15.68 kg
• Condition: New

APPLICATION:
• JLG E2 Series Scissor Lifts (1998-2012)
• Haldex Barnes Hydraulic Pump Systems


Ohio Motors D468210XWF02 Replacement - 24V Hydraulic Pump Motor
New 24 Volt electric pump motor replacing Ohio Motors D468210XWF02 and related D-series part numbers for Haldex Barnes hydraulic pump assemblies and JLG E2 series electric scissor lifts. This heavy duty 4 HP clockwise motor delivers reliable hydraulic pressure with Chrysler Amplex coupler type shaft and double ball bearing design. Cast aluminum commutator and drive ends ensure excellent thermal management. Fits JLG 1532E2, 1932E2, 2032E2, 2632E2, 2646E2, and 3246E2 models from 1998-2012. Also cross-references Prestolite MBD5112 and JS Barnes 2200353.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
JLG 15-20FT SCISSOR LIFTS:
• 1532E2 Electric Scissor Lift - 15ft Working Height (1998-2012)
• 1932E2 Electric Scissor Lift - 19ft Working Height (1998-2012)
• 2032E2 Electric Scissor Lift - 20ft Working Height (1998-2012)

JLG 26-32FT SCISSOR LIFTS:
• 2632E2 Electric Scissor Lift - 26ft Working Height (1998-2012)
• 2646E2 Electric Scissor Lift - 26ft Working Height, Wide Deck (1998-2012)
• 3246E2 Electric Scissor Lift - 32ft Working Height, Wide Deck (1999-2012)

HYDRAULIC PUMP MOTOR APPLICATIONS:
• Haldex Barnes Hydraulic Pump Systems
• Ohio Motors Material Handling Hydraulics
• Aerial Work Platform Hydraulic Systems

NOTE: Verify OEM part number before ordering.
