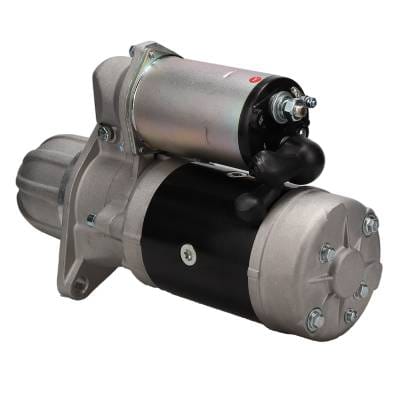

24V 7.4Kw Starter Compatible With Hitachi Ex300lc-2 Ex300-5Hhe Ex310h-3C Excavator Isuzu 6Sd1t 9.8L

OEM PART NUMBERS:
• Isuzu: 1-81100-294-1 / 1811002941 (Current)
• Isuzu: 1-81100-294-0 / 1811002940
• Isuzu: 1-81100-288-0 / 1811002880
• Isuzu: 5-81100-294-1 / 5811002941
• Isuzu: 1-81100-272-2 / 1811002722 (Superseded)
• Isuzu: 1-81100-272-1 / 1811002721 (Superseded)
• Isuzu: 1-81100-272-0 / 1811002720 (Superseded)
• Isuzu: 1-81100-255-0 / 1811002550 (Superseded)
• Isuzu: 1-81100-214-1 / 1811002141 (Superseded)
• Nikko: 0-23000-7292 / 0230007292 (Current)
• Nikko: 0-23000-7291 / 0230007291
• Nikko: 0-23000-7290 / 0230007290
• Nikko: 0-23000-6226 / 0230006226 (Superseded)
• Nikko: 0-23000-6225 / 0230006225 (Superseded)
• Nikko: 0-23000-6224 / 0230006224 (Superseded)
• Nikko: 0-23000-6222 / 0230006222 (Superseded)
• Nikko: 0-23000-6221 / 0230006221 (Superseded)
• Nikko: 0-23000-6220 / 0230006220 (Superseded)
• JCB: 714/55391 / 71455391
• JCB: 332K4865

SPECIFICATIONS:
• Type: Starter Motor
• Starter Type: OSGR (Offset Gear Reduction)
• Voltage: 24V
• Power: 7.4 kW (9.92 HP)
• Rotation: Clockwise (CW)
• Tooth Count: 11
• Gear OD: 1.575 in / 40mm
• Mounting Holes: 2
• OEM Manufacturer: Nikko
• Engine: Isuzu 6SD1T / 6SD1TP 9.839L 6-Cyl Inline Turbocharged Diesel
• Weight: 36.5 lbs / 16.59 kg
• Oil Sealed
• Condition: New

HITACHI / JCB / ISUZU APPLICATIONS:
• Hitachi EX300 Series: EX300-2, EX300LC-2/3, EX300-3/3C/3HHE, EX300-5/5HHE, EX300LCLL-5 (1993-2005)
• Hitachi EX310/EX330: EX310H-3C, EX330LC-5 (1996-2005)
• Hitachi EX345/EX350: EX345USR(LC), EX350H-5/5HHE, EX350K-5 (1999-2005)
• Hitachi EX370/EX385: EX370-5M, EX370HD-5, EX370LL-5, EX385USR (1999-2005)
• Hitachi Crawler Cranes: CD1500, CD2000
• JCB Equipment w/Isuzu 6SD1TP
• Isuzu 6SD1T / 6SD1TP Industrial EnginesPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
HITACHI EX300 SERIES EXCAVATORS w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel:
• EX300-2 w/Isuzu 6SD1TPD 9.8L 6-Cyl Turbo Diesel 208HP (1993-1999)
• EX300LC-2 w/Isuzu 6SD1TPD 9.8L 6-Cyl Turbo Diesel 208HP (1993-1999)
• EX300-3 w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel 208HP (1996-2002)
• EX300LC-3 w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel 208HP (1996-2002)
• EX300-3C w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel 208HP (1996-2002)
• EX300-3HHE w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel (1996-2002)
• EX300-5 w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel 227HP (1999-2005)
• EX300LC-5 w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel 227HP (1999-2005)
• EX300-5HHE w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel (1999-2005)
• EX300LCLL-5 w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel (1999-2005)

HITACHI EX310/EX330 SERIES EXCAVATORS w/Isuzu 6SD1T:
• EX310H-3C w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel (1996-2002)
• EX330LC-5 w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel (1999-2005)

HITACHI EX345/EX350 SERIES EXCAVATORS w/Isuzu 6SD1T:
• EX345USR(LC) w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel (1999-2005)
• EX350H-5 w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel (1999-2005)
• EX350H-5HHE w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel (1999-2005)
• EX350K-5 w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel (1999-2005)

HITACHI EX370/EX385 SERIES EXCAVATORS w/Isuzu 6SD1T:
• EX370-5M w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel (1999-2005)
• EX370HD-5 w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel (1999-2005)
• EX370LL-5 w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel (1999-2005)
• EX385USR w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel (1999-2005)

HITACHI CRAWLER CRANES w/Isuzu 6SD1T:
• CD1500 w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel
• CD2000 w/Isuzu 6SD1T 9.8L 6-Cyl Turbo Diesel

JCB EQUIPMENT w/Isuzu 6SD1TP ENGINE:
• Various JCB Equipment w/Isuzu 6SD1TP 9.8L 6-Cyl Turbo Diesel

ISUZU INDUSTRIAL ENGINES:
• Isuzu 6SD1T Industrial Engine 9.8L 6-Cyl Turbo Diesel
• Isuzu 6SD1TP Industrial Engine 9.8L 6-Cyl Turbo Diesel
