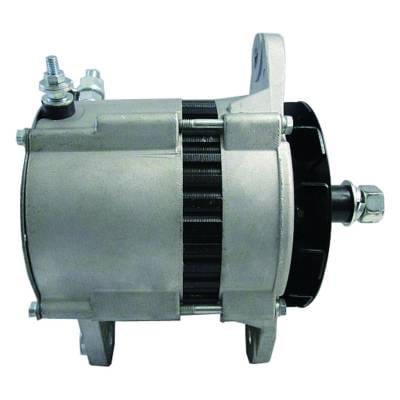

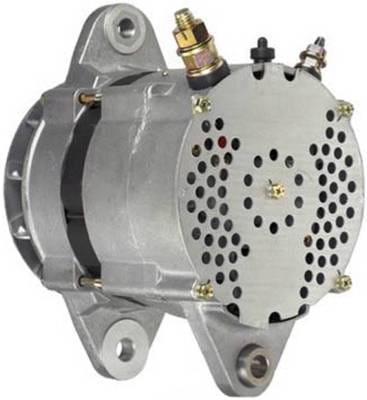

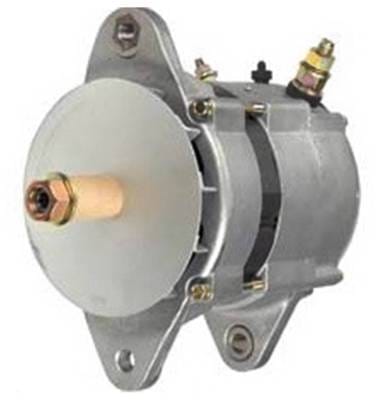

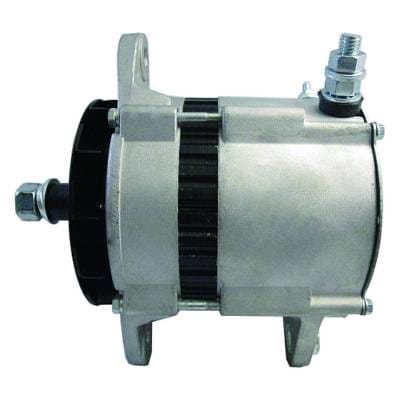

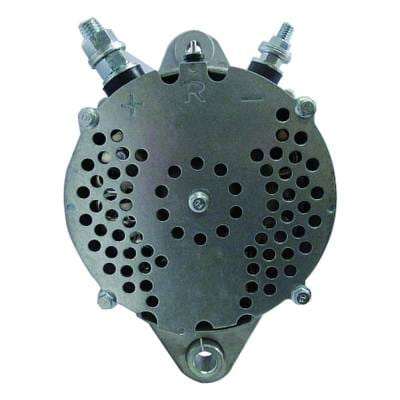

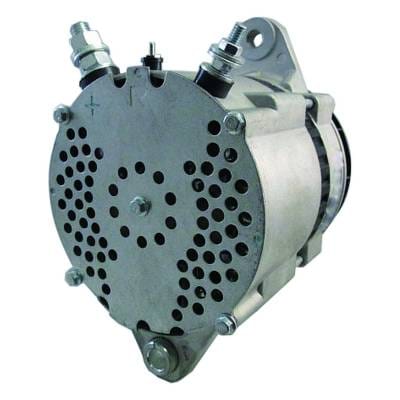

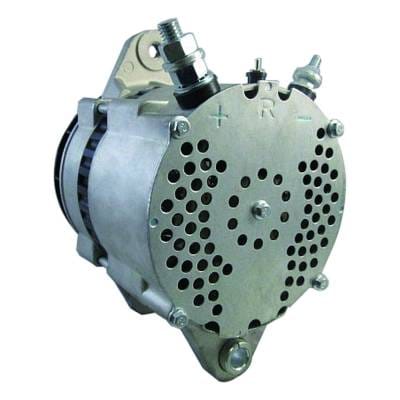

24V 50A Alternator Compatible With Caterpillar Mining Truck 772B 773B 777B 777C Denso 100211-0890

CATERPILLAR OEM PART NUMBERS:
• 6N9294 (6N-9294)
• 7T6172
• 100-5045 (1005045)
• 100-5047 (1005047)
• 5S9088 (5S-9088)
• 6T7223
• 7T6173
• 9G4574
• 0R3667 (0R-3667)
• 0R3669 (0R-3669)
• 0R5206 (0R-5206)
• 112-5041 (1125041)
• 169-3345 (1693345)
• 6L6024
• 3E7578

DENSO / NIPPONDENSO:
• 100211-0860 (1002110860)
• 100211-0890 (1002110890)
• 101211-6100 (1012116100)

ND REMAN:
• 9760218-086 (9760218086)
• 9760218-089 (9760218089)
• 9761219-610 (9761219610)

PRESTOLITE:
• 110-446 (110446)

SPECIFICATIONS:
• Voltage: 24V DC
• Amperage: 50A
• Type: Denso Brushless
• Fan: External (Pulley Not Included)
• Regulator: Internal (IR/EF)
• Polarity: Negative Ground
• B+ Terminal: 7/16-14
• Battery Terminal Position: 11:00
• Weight: 21 lbs / 9.55 kg
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
CATERPILLAR OFF-ROAD & MINING TRUCKS:
• 772B - 1985-1996 - CAT 3412 Engine
• 773B - 1985-1996 - CAT 3412 Engine
• 773D - 1997-2000 - CAT 3412 Engine
• 776B - 1984-1992 - CAT 3508 Engine
• 776C - 1992-1997 - CAT 3508 Engine
• 776D - 1997-2000 - CAT 3508 Engine
• 777B - 1984-1992 - CAT 3508 Engine
• 777C - 1992-2000 - CAT 3508 Engine
• 777D - 1997-2000 - CAT 3508 Engine
• 784 - 1986-1993 - CAT 3512 Engine
• 784B - 1994-1996 - CAT 3512 Engine
• 785 - 1986-1993 - CAT 3512 Engine
• 785B - 1994-2000 - CAT 3512 Engine
• 789 - 1986-1993 - CAT 3516 Engine
• 789B - 1994-1998 - CAT 3516 Engine

CATERPILLAR PIPELAYERS:
• 561D - 1985-1992 - CAT 3306 Engine
• 583K - 1985-1989 - D-342 Diesel Engine
• 589 - 1985-1992 - CAT 3408 Engine
• 591 - 1985-1992 - CAT 3412 Engine

SPECIFICATIONS:
• 24V / 50A Brushless Output
• Denso Type - CW Rotation
• External Fan / Internal Regulator
• B+ Terminal: 7/16-14
• Negative Ground Polarity
• Weight: 21 lbs / 9.55 kg
