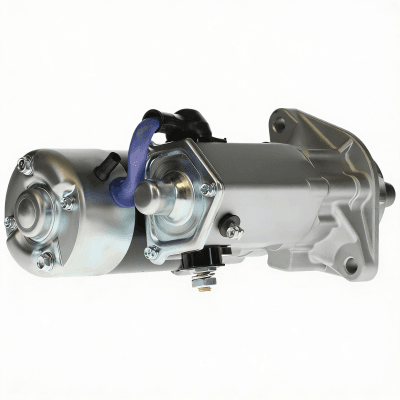

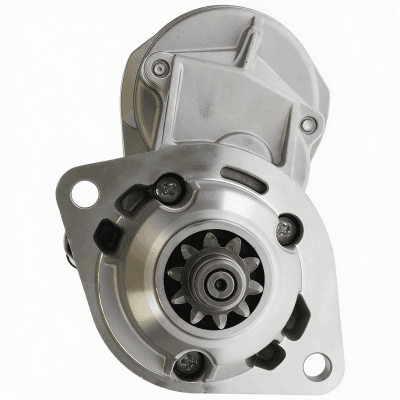

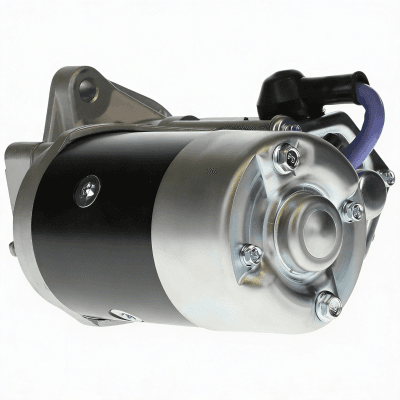

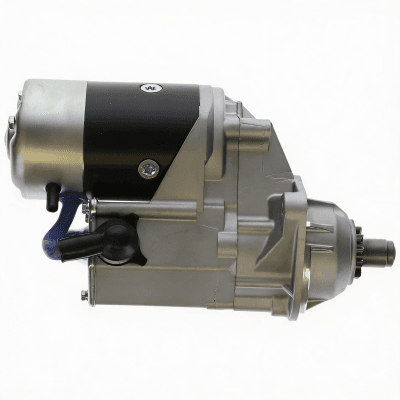

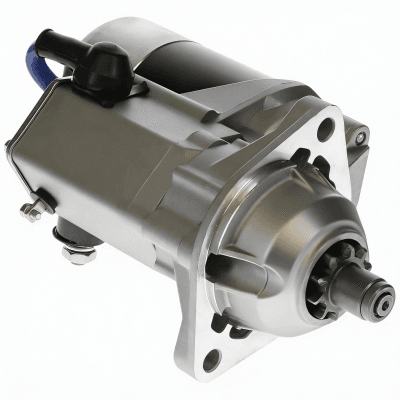

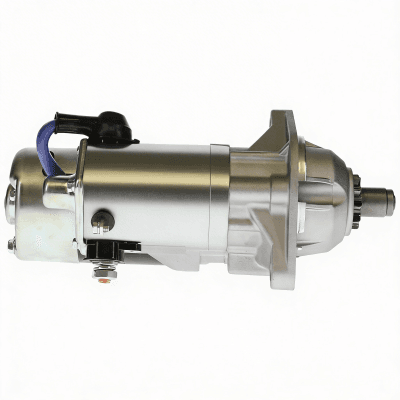

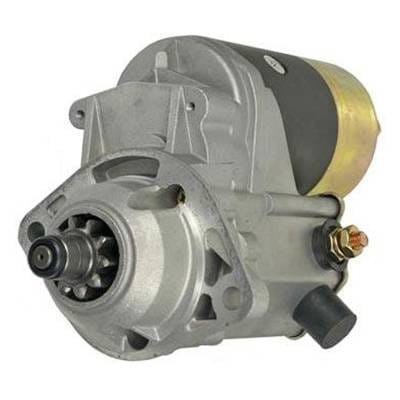

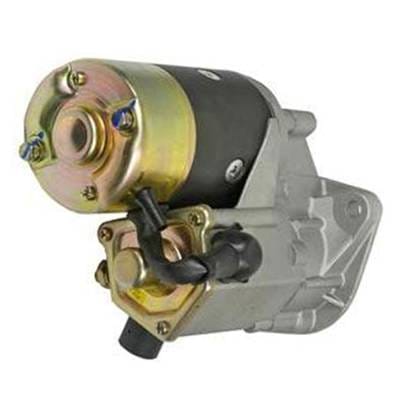

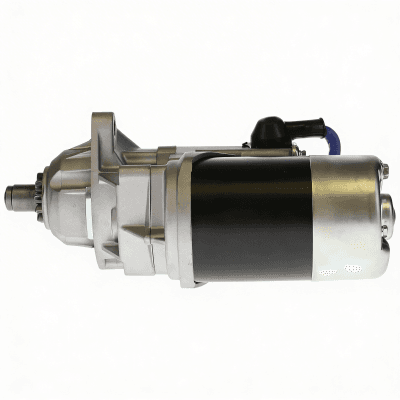

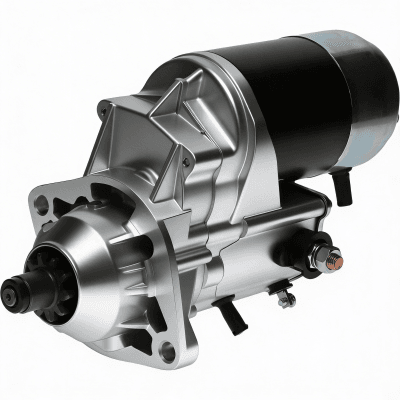

24V 4.5Kw Starter Motor Compatible With Cummins 4B3.9 6B5.9 Industrial Engine Komatsu Wa250 Wa180

OEM PART NUMBERS:
• Cummins: 3920644 / 3922474 / 3575248RX / 3675248RX / 3957592 / 3970101 / 4064168
• Denso: 228000-0630 / 2280000630 / 228000-0631 / 228000-0632 / 228000-0633
• Denso: 228000-1750 / 2280001750 / 228000-1751 / 228000-1752 / 228000-1753
• Denso: 228000-6640 / 2280006640 / 228000-6641 / 228000-6670 / 228000-6671 / AS228000-6671
• Komatsu: 600-813-4130 / 600-813-5110 / 600-863-4110 / 600-863-4111 / 600-863-4130
• Komatsu: 673-181-2530 / 673-381-6510 / 673-382-6510
• Case: 370226A1 / 370226A1C / 370226A1R

SPECIFICATIONS:
• Type: Denso OSGR (Offset Gear Reduction)
• Voltage: 24V / Power: 4.5kW
• Rotation: Clockwise (CW) / Teeth: 10
• Gear OD: 40.4mm (1.591")
• Mounting: 11mm ID Unthreaded (both ears)
• Weight: 19.45 lbs (8.84 kg)
• Condition: New

APPLICATIONS:
• Komatsu WA120/WA180/WA250/WA253 Loaders (Cummins 4B/6B, 1997-On)
• Komatsu WA180-3 (S6D102E-1, 1995-2006)
• Komatsu PC200-6 (S6D102)
• Case 521D (Cummins 390, 1997-2006)
• Dresser 510C/515C/520C (Cummins 6B 5.9L, 1985-1993)PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
KOMATSU WHEEL LOADERS:
• WA120 w/Cummins 4B 3.9L 4-Cyl Diesel (1997-On)
• WA120 w/Cummins 6B 5.9L 6-Cyl Diesel (1997-On)
• WA180 w/Cummins 4B 3.9L 4-Cyl Diesel (1997-On)
• WA180 w/Cummins 6B 5.9L 6-Cyl Diesel (1997-On)
• WA180-3 w/S6D102E-1 Komatsu Diesel (1995-2006)
• WA250 w/Cummins 4B 3.9L / 6B 5.9L Diesel (1997-On)
• WA253 w/Cummins 4B 3.9L / 6B 5.9L Diesel (1997-On)
• 520C w/Cummins 6B 5.9L Diesel

KOMATSU EXCAVATORS:
• PC200-6 w/S6D102 Cummins 6-Cyl Diesel

CASE WHEEL LOADERS:
• 521D w/Cummins 390 Diesel (1997-2006)

DRESSER LOADERS:
• 510C w/Cummins 6B 5.9L 6-Cyl Diesel (1986-1993)
• 515C w/Cummins 6B 5.9L 6-Cyl Diesel (1986-1993)
• 520C w/Cummins 6B 5.9L 6-Cyl Diesel (1985-1992)

CUMMINS INDUSTRIAL ENGINES:
• B Series 4B3.9 4-Cylinder 3.9L Diesel
• B Series 6B5.9 6-Cylinder 5.9L Diesel
• S6D102 / S6D102E-1 (Komatsu designation for Cummins 6B)
